Discontinued

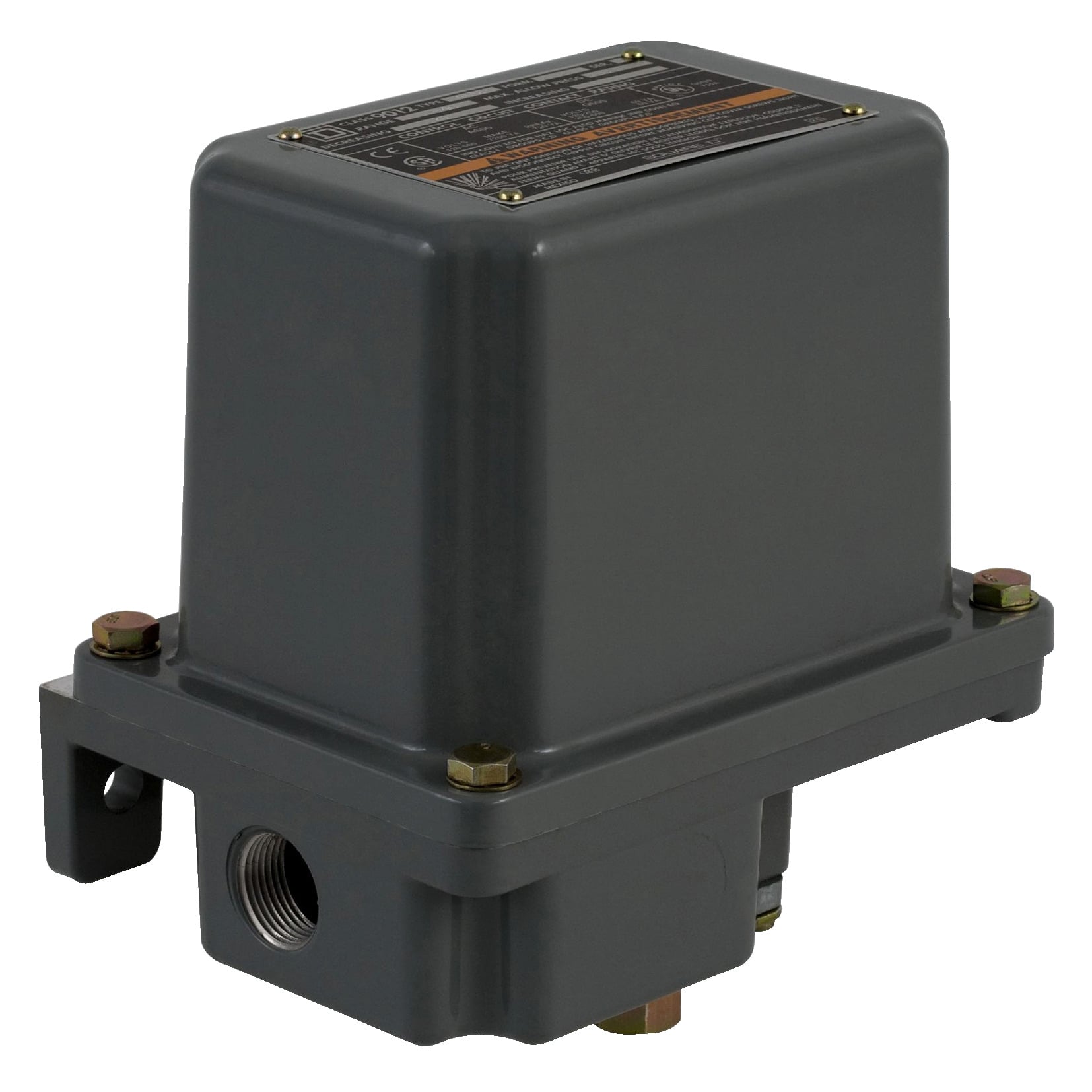

9012GAR26 1-Stage Low Pressure Electromechanical Pressure Switch, 5 to 250 psi Pressure, 15 to 49 psi Differential, 2NO-2NC DPDT-DB Contact, Screw Clamp Connection
- MFR:
- Schneider Electric
- MFR #:
- 9012GAR26
- UPC:
- 785901348542
- Item #:
- 288616
Discontinued
9012GAR26 1-Stage Low Pressure Electromechanical Pressure Switch, 5 to 250 psi Pressure, 15 to 49 psi Differential, 2NO-2NC DPDT-DB Contact, Screw Clamp Connection
- MFR #:
- 9012GAR26
- UPC:
- 785901348542
- Item #:
- 288616
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
pressure switch 9012G - adjustable scale - 2 thresholds - 5.0 to 250 psig
Manuals and Documentation
| Catalog Number | 9012GAR26 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | REGULATION BETWEEN 2 THRESHOLDS |
| Contact Configuration | 2(NC-NO), DPDT-DB, FORM ZZ, SNAP ACTION, SILVER NICKEL CONTACTS |
| Enclosure | NEMA 7/9 UL 698,CAST ALUMINIUM |
| Operating Cycles | 120 CYC/MN |
| Process Connection | 0.25 INCH 18 NPTF UL 508 |
| Special Features | SCREW-CLAMP TERMINALS, AWG 22...AWG 12 |
| Standard | CSA C22.2 NO 14-CE-UL 508,CSA LR26817 CLASS 3218 02-CE-UL LISTED FILE E12443 CCN NOWT |
| UPC | 785901348542 |
| GTIN | 00785901348542 |
| Item Type | 3 A 240 V AC A600 NEMA RATING DESIGNATION-6 A 120 V AC A600 NEMA RATING DESIGNATION-0.22 A 125 V DC R300 NEMA RATING DESIGNATION-0.11 A 250 V DC R300 NEMA RATING DESIGNATION,ADJUSTABLE DIFFERENTIAL,ELECTROMECHANICAL PRESSURE SWITCH |
| Environmental Conditions | FOR HAZARDOUS LOCATION USAGE - EXPLOSION PROOF (INDOOR) |
| Operating Temperature | -10-185 A Degrees F |
| System Pressure | 250 PSI,750 PSI |
