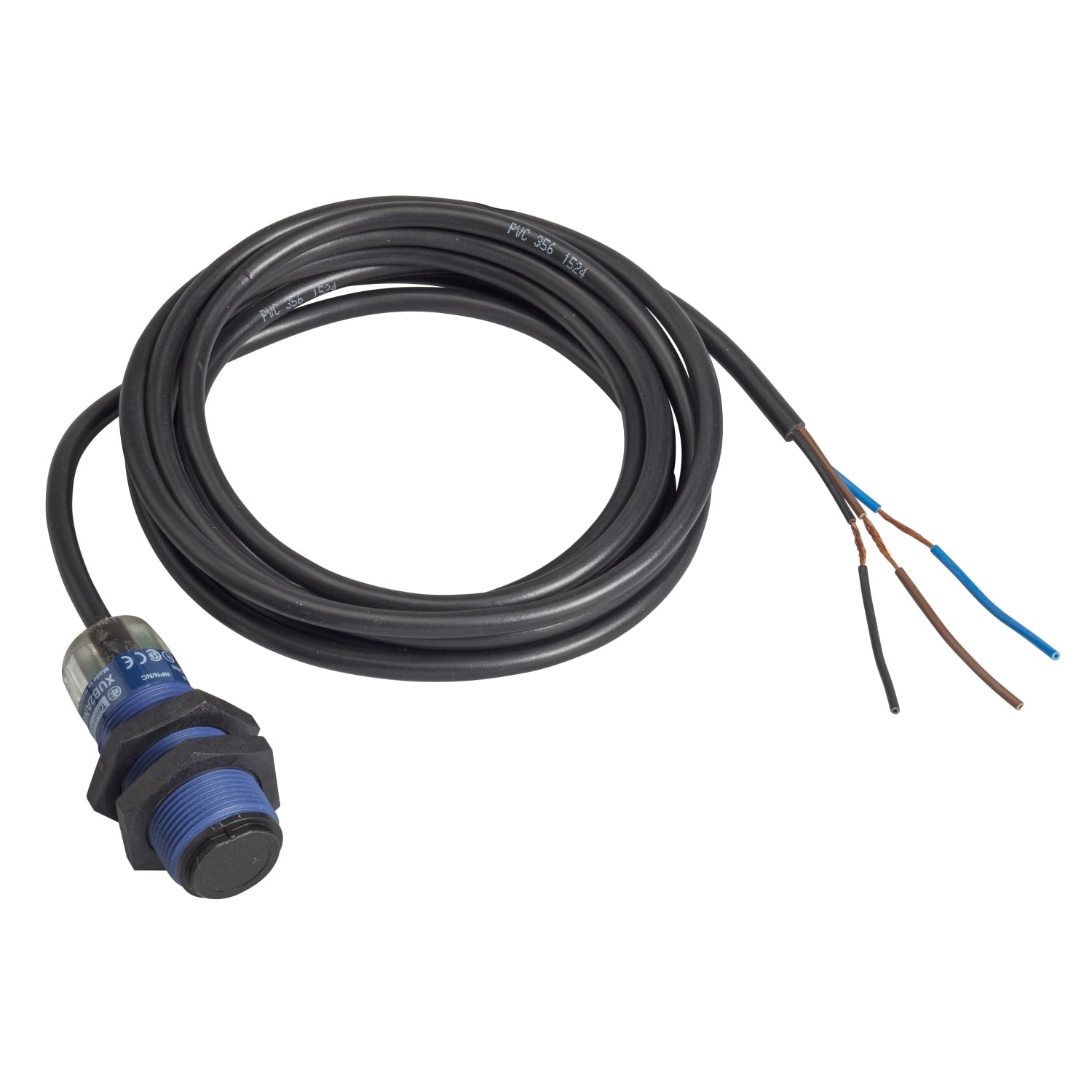

XUB0APSNL2 XU Series Multi-Mode Photo Electric Sensor, Cylindrical Shape, 8.43 ft, <2 ms Response, Solid State Output
- MFR:
- Telemecanique Sensors
- MFR #:
- XUB0APSNL2
- UPC:
- 785901791720
- Item #:
- 288144
XUB0APSNL2 XU Series Multi-Mode Photo Electric Sensor, Cylindrical Shape, 8.43 ft, <2 ms Response, Solid State Output
- MFR #:
- XUB0APSNL2
- UPC:
- 785901791720
- Item #:
- 288144
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$261.47
each
This design 18 multi mode photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This multi-mode cylindrical photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. It has VALOX PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 3 LED display allows to identify status of the sensor and troubleshoot issues. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Manuals and Documentation
| Catalog Number | XUB0APSNL2 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | - |
| Connection | Cable |
| Enclosure | IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT |
| Operating Cycles | <= 250 Hz |
| Output | PNP;1 NO or 1 NC programmable;Discrete;Solid state |
| Sensing Range | 3-3 M POLARISED REFLEX NEED REFLECTOR XUZC50-20-20 M THRU BEAM NEED A TRANSMITTER XUB0AKSNL2T-0.12-0.12 M DIFFUSE WITH BACKGROUND SUPPRESSION-0.3-0.3 M DIFFUSE,> 0...65.62 FT (> 0...20 M) |
| Special Features | 1 LED green)supply;1 LED red)instability;1 LED yellow)output state |
| Standard | IP65 DOUBLE INSULATION IEC 60529-IP67 DOUBLE INSULATION IEC 60529,UL-CE-CSA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=872572&lang=en-us |
| UPC | 785901791720 |
| GTIN | 03389110148336 |
| Item Type | General purpose multimode;Multimode;Cylindrical M18;Photo-electric sensor |
| Size | 0.71 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR) |
| Operating Temperature | -25-55 A Degrees C |
| Voltage Rating | 12...24 V DC reverse polarity protection |
