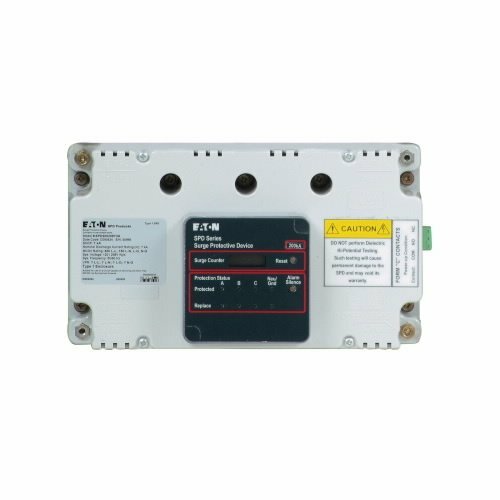

Eatons SPD Series offers the most advanced surge protection for industrial and commercial applications. It can be installed in two configurations: Direct integration into electrical assemblies or externally side-mounted to equipment. With an array of features, options, and configurations, there is a solution for all electrical applications, including service entrances, distribution switchboards, panelboards and point-of-use applications.
| Catalog Number | SPD120480D2A |
| Manufacturer | Eaton |
| Brand | Eaton |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Datacenters - Data Centers - Aftermarket|Commercial / Institutional Buildings / Structures - Commercial/Inst Bldg Strctures - Aftermarket|Water and Wastewater Systems - Water/Wastewater Systems - Aftermarket|Generation - Renewable Energy - Generation - Renewable Energy - Aftermarket|Other IT and Datacom - Other Infrastructures|Ind Facilities & Factories - Industrial Facilities/Factories - Aftermarket|Other IT and Datacom - Other IT & Datacom - Aftermarket|Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other |
| Frequency Rating | 50/60 Hz |
| Short Circuit Rating | 200 kA |
| Special Features | Meets or exceeds the requirements specified in IBC ®2006, CBC2007, and UBC®Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button |
| Standard | UL 1449 ,UL Listed |
| UPC | 786685317687 |
| GTIN | 00786685317687 |
| Item Type | Surge protection device |
| Dimensions | 9.5000 IN X 5.4000 IN X 3.4500 IN |
| Operating Temperature | -40 to 50 Degrees C |
| Voltage Rating | 480 delta (3W+G) |
