100020C Platinum Tools EXO Crimp Frame Internal Ground Shielded Connector, EZ-RJ45 Connector, 0.26 in OD Round/Solid/Stranded Cable, Cat 5E/6
- MFR:
- NSi Industries
- MFR #:
- 100020C
- UPC:
- 849160005056
- Item #:
- 285941
100020C Platinum Tools EXO Crimp Frame Internal Ground Shielded Connector, EZ-RJ45 Connector, 0.26 in OD Round/Solid/Stranded Cable, Cat 5E/6
- MFR #:
- 100020C
- UPC:
- 849160005056
- Item #:
- 285941
Availability
| Location | Available Qty |
|---|---|
| Available | 1 ea |
$96.20
each

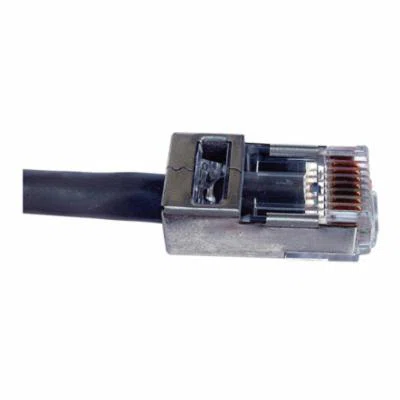

The Original EZ-RJ45® fully shielded plug, with an internal ground, combines the performance advantage exclusive to the EZ-RJ45® design with the performance advantage inherent to shielded products to provide an unparalleled solution for the market._x000D_
_x000D_
WARNING: Platinum’s EZ-RJ45 connectors and crimp tools are designed to work as a system. Platinum Tools’ products are NOT intended to be compatible with other brands and such unintended use can result in bad connections, breakage, and human safety hazards, and will also void the warranty. Platinum is not responsible for any unintended uses of its products.
Manuals and Documentation
Features
- Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies
- 0.040 (1.016mm) max insulation diameter (conductors)
- Retail-ready clamshell packaging
- 50 umgold plated contacts
- Rated for up to 1G bandwidth
- Connector design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs
- Compatible with solid or stranded 24 - 23AWG twisted pair cable
- 0.260 in (6.60mm) max cable outer diameter
- Recommended crimp tools - 100062, 100054 or 100004
- 0.041 in OD maximum insulated wire
- Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade
- For solid round or stranded wire cables
- Significantly improve shannon capacity

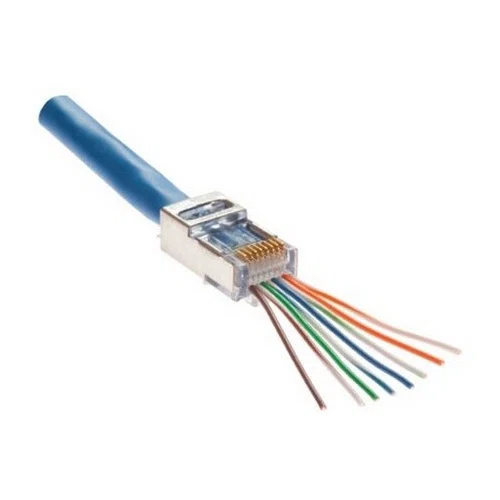

- EZ-RJ45® design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs
- Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance
| Manufacturer Part Number | 100020C |
| Brand | Platinum Tools® |
| Manufacturer | NSi Industries |
| UPC | 849160005056 |
| Country Of Origin | US |
| Cable Type | Round/Solid/Stranded |
| Category Type | Cat 5E/6 |
| Connector Type | EZ-RJ45® |
| Type | Internal Ground Shielded |
| Cable Size | 0.26 in OD |
| Alternative Part Number | 14798322 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 1 Year |
| Standards Approvals | TAA Compliant | FCC Compliant | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov | UL Listed | EIA/TIA B.2. FCC | RoHS Compliant |
| Application | Cable Installation, Hospitals, Manufacturing Plants, Casinos, Broadcast Studios, Buildings in Proximity to Microwave Towers and Electrical Power Stations or Towers Applications |
