SQUARE D

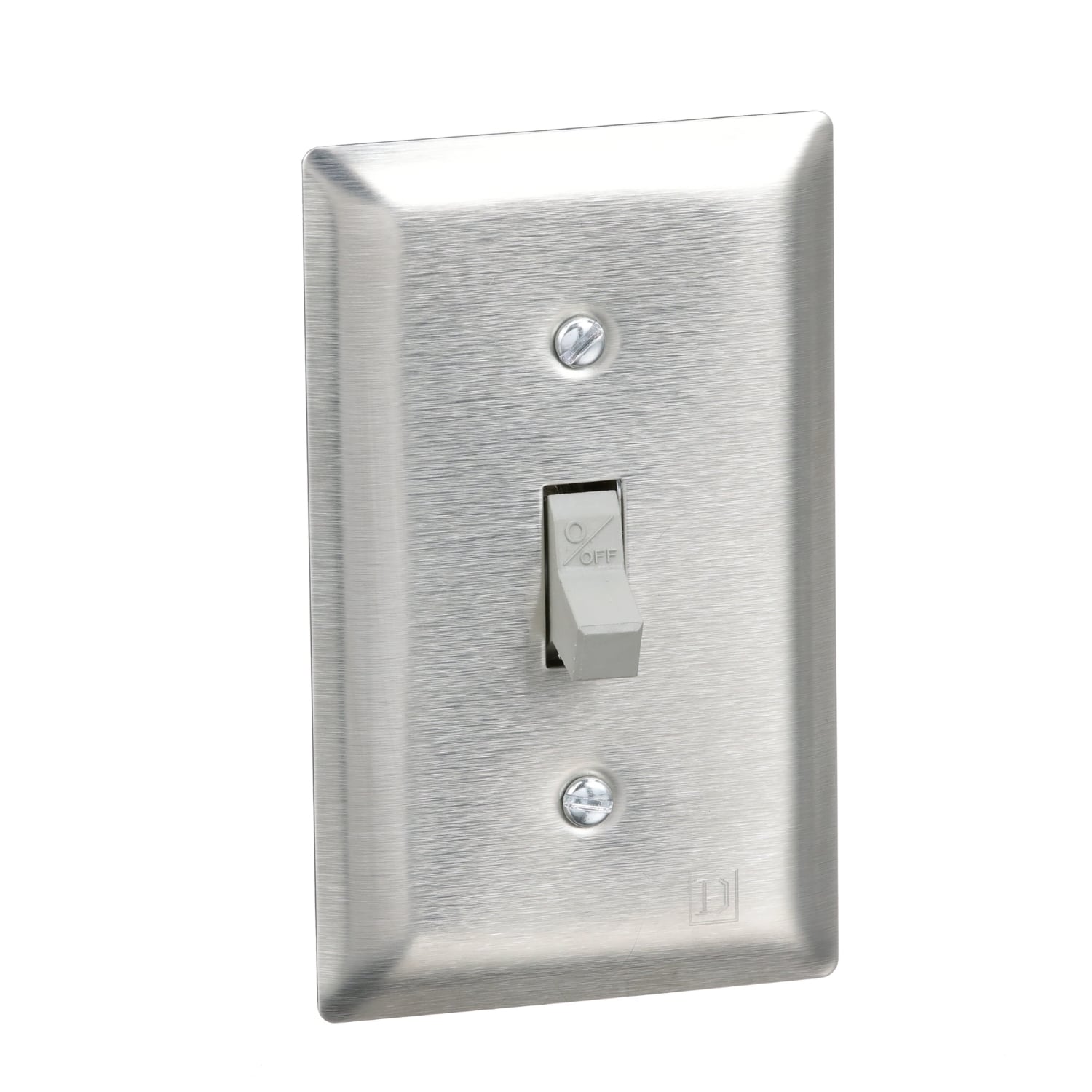

2510KS1 Type K Non-Reversing Switch, 2 Poles

MFR:
Schneider Electric
MFR #:
2510KS1
UPC:
785901554653
Item #:
285908

Availability

Location Available Qty
Available Available to Order

2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switch is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This two pole switch is rated for 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, 3 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. This NEMA 1 flush mounted unit with a stainless steel flush plate can be mounted in a standard switch box or in a machine cavity without a box. Enclosure is 4.50 inches tall, 2.75 inches wide and 2.50 inches deep. This device is UL Listed and CSA certified.

Manuals and Documentation
Catalog Number 2510KS1
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
UPC 785901554653
GTIN 00785901554653
Width 2.75
Width UOM Inch
Height 4.5
Height UOM Inch
Depth 2.5 IN
