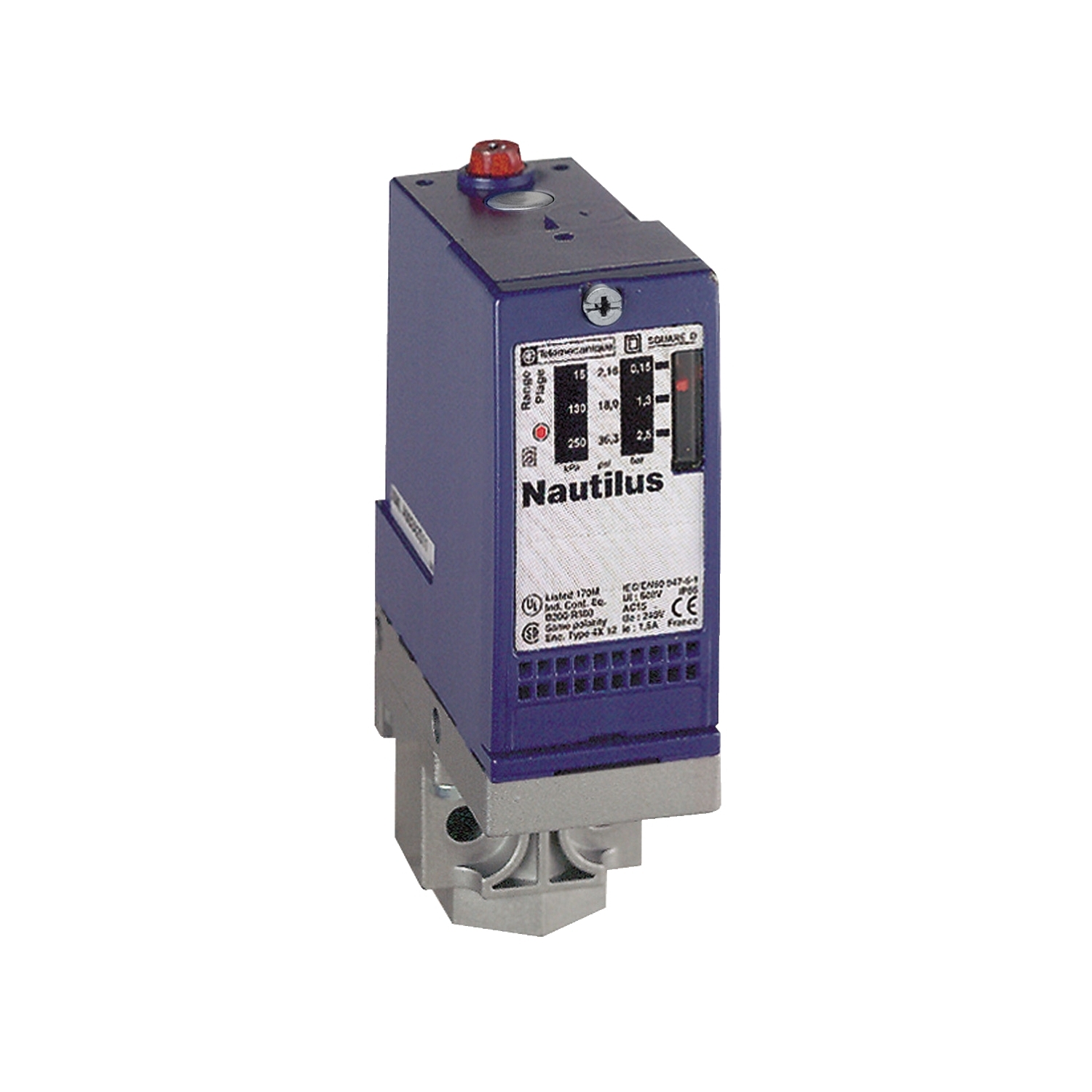

Telemecanique

pressure switch XMLA 20 bar - fixed scale 1 threshold - 1 C/O

MFR:
Telemecanique Sensors
MFR #:
XMLA020A2S12
UPC:
785901985457
Item #:
284574

Availability

Location Available Qty
Available Available to Order
$468.05 each

This XMLA electromechanical pressure switch has a fixed differential for detection of a single threshold and a zinc alloy body with a range scale window. This pressure switch is designed for detection of a single pressure threshold in air, fresh water, hydraulic oils, corrosive fluids and viscous products up to 70C. It is fixed directly on tubage. It provides zinc alloy enclosure for robust performance. 5 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, LROS, UL 508, EAC, BV.

Manuals and Documentation
Catalog Number XMLA020A2S12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Sub Brand XMLA
Warranty Description Contractual Warranty:18 months
Country of Origin Czech Republic
Made in USA No
Application Detection of 1 single threshold;-;Control circuit
Contact Configuration 1 C/O
Enclosure Zinc alloy
Operating Cycles 120 CYC/MN
Process Connection G 1/4 (FEMALE) ISO 228
Special Features IP66 CONFORMING TO EN/IEC 60529,SCREW-CLAMPS TERMINALS 1 X 0.5...2 X 2.5 MM²-1 CONNECTOR ISO M20
Standard CSA-EAC-CCC-UL-LROS (LLOYDS REGISTER OF SHIPPING)-BV,IP66 EN/IEC 60529,UL 508-CE-EN/IEC 60947-5-1-CSA C22.2 NO 14,CLASS I IEC 1140-CLASS I IEC 536-CLASS I NF C 20-030
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=861506&lang=en-us
UPC 785901985457
GTIN 00785901985457
Item Type Electromechanical pressure sensor;Electromechanical pressure sensor;Fixed differential
Operating Temperature -25-70 A Degrees C
System Pressure 290.08
