Discontinued

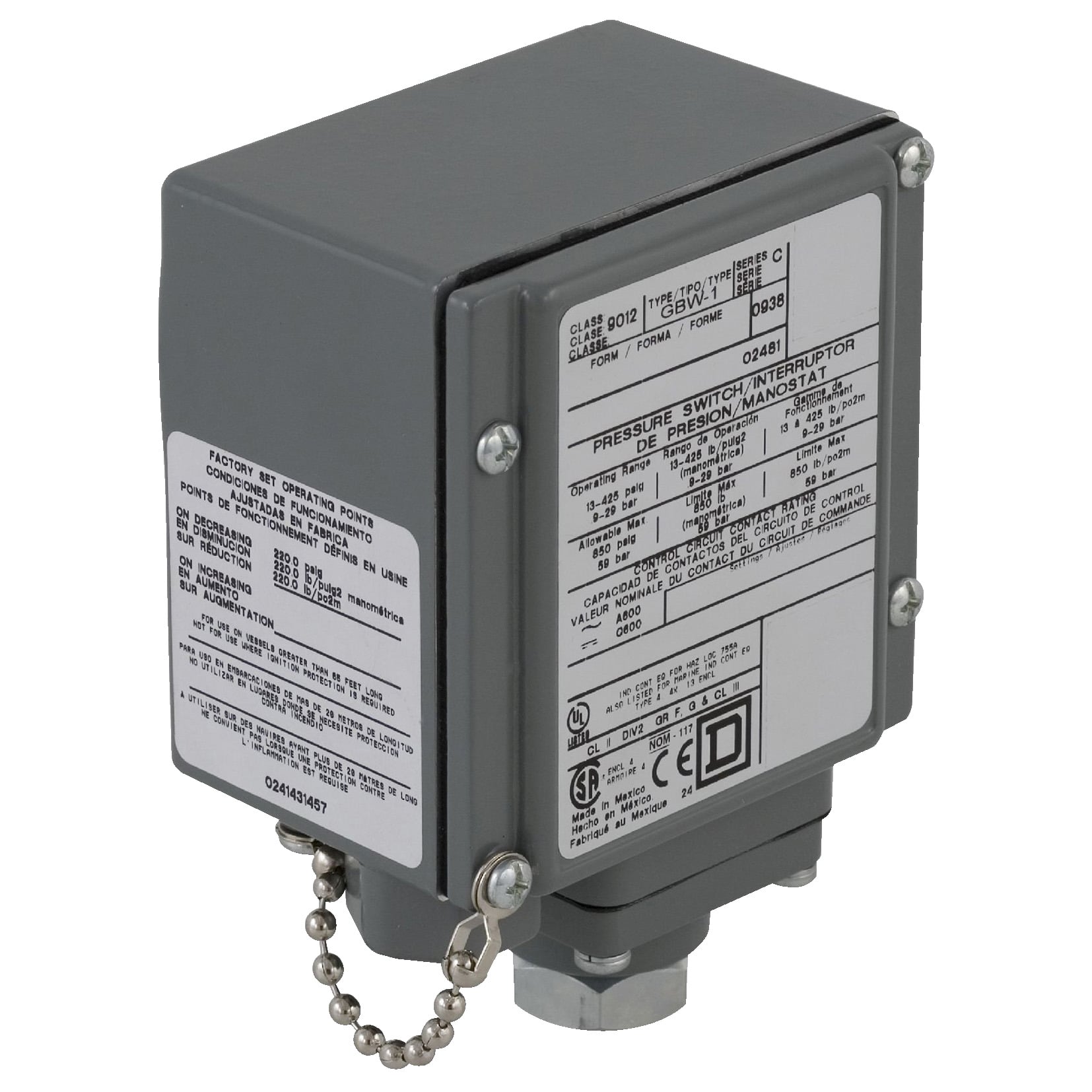

9012GBW22Z18 1-Stage High Pressure Electromechanical Pressure Switch, 20 to 675 psi Pressure, 27 to 130 psi Differential, 2NO-2NC DPDT-DB Contact, Screw Clamp Connection
- MFR:
- Schneider Electric
- MFR #:
- 9012GBW22Z18
- UPC:
- 785901319894
- Item #:
- 284458
Discontinued
9012GBW22Z18 1-Stage High Pressure Electromechanical Pressure Switch, 20 to 675 psi Pressure, 27 to 130 psi Differential, 2NO-2NC DPDT-DB Contact, Screw Clamp Connection
- MFR #:
- 9012GBW22Z18
- UPC:
- 785901319894
- Item #:
- 284458
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
pressure switch 9012G - adjustable scale - 2 thresholds - 20 to 675 psig
Manuals and Documentation
| Catalog Number | 9012GBW22Z18 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | REGULATION BETWEEN 2 THRESHOLDS |
| Contact Configuration | 2(NC-NO), DPDT-DB, FORM ZZ, SNAP ACTION, SILVER NICKEL CONTACTS |
| Enclosure | NEMA 4/4X/13 UL 50,DIE CAST ALUMINIUM ALLOY 380 |
| Operating Cycles | 120 CYC/MN |
| Process Connection | 0.44 INCH 20 UNF-2B UL 508 |
| Special Features | SCREW-CLAMP TERMINALS, AWG 22...AWG 12 |
| Standard | CSA C22.2 NO 14-UL 508-CE,CSA LR25490 CLASS 3211 03-CE-UL LISTED FILE E12158 CCN NKPZ AND CCN NTHT |
| UPC | 785901319894 |
| GTIN | 00785901319894 |
| Item Type | 3 A 240 V AC A600 NEMA RATING DESIGNATION-6 A 120 V AC A600 NEMA RATING DESIGNATION-0.22 A 125 V DC R300 NEMA RATING DESIGNATION-0.11 A 250 V DC R300 NEMA RATING DESIGNATION,ADJUSTABLE DIFFERENTIAL,ELECTROMECHANICAL PRESSURE SWITCH |
| Environmental Conditions | WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| Operating Temperature | -10-185 A Degrees F |
| System Pressure | 2000 PSI,675 PSI |
