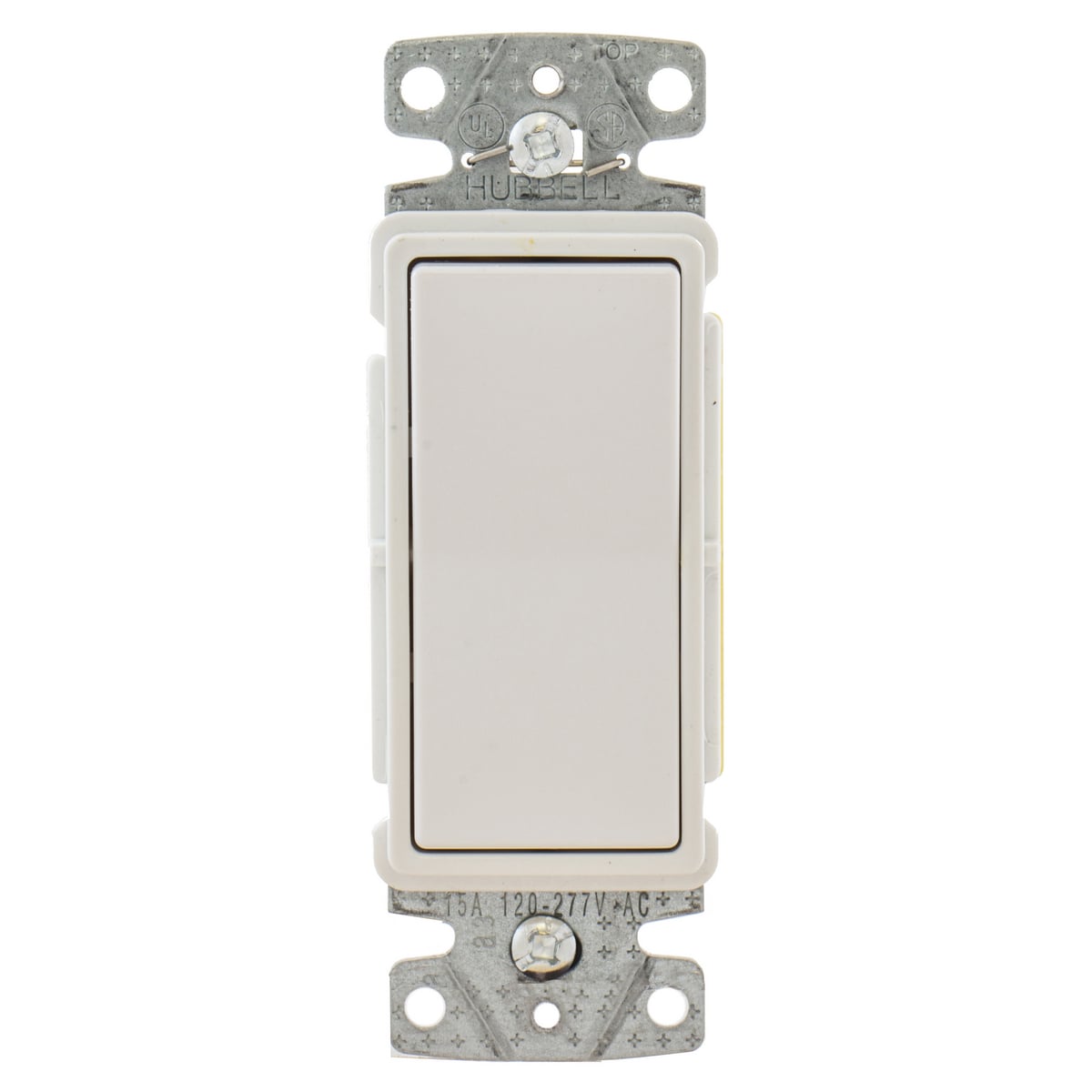

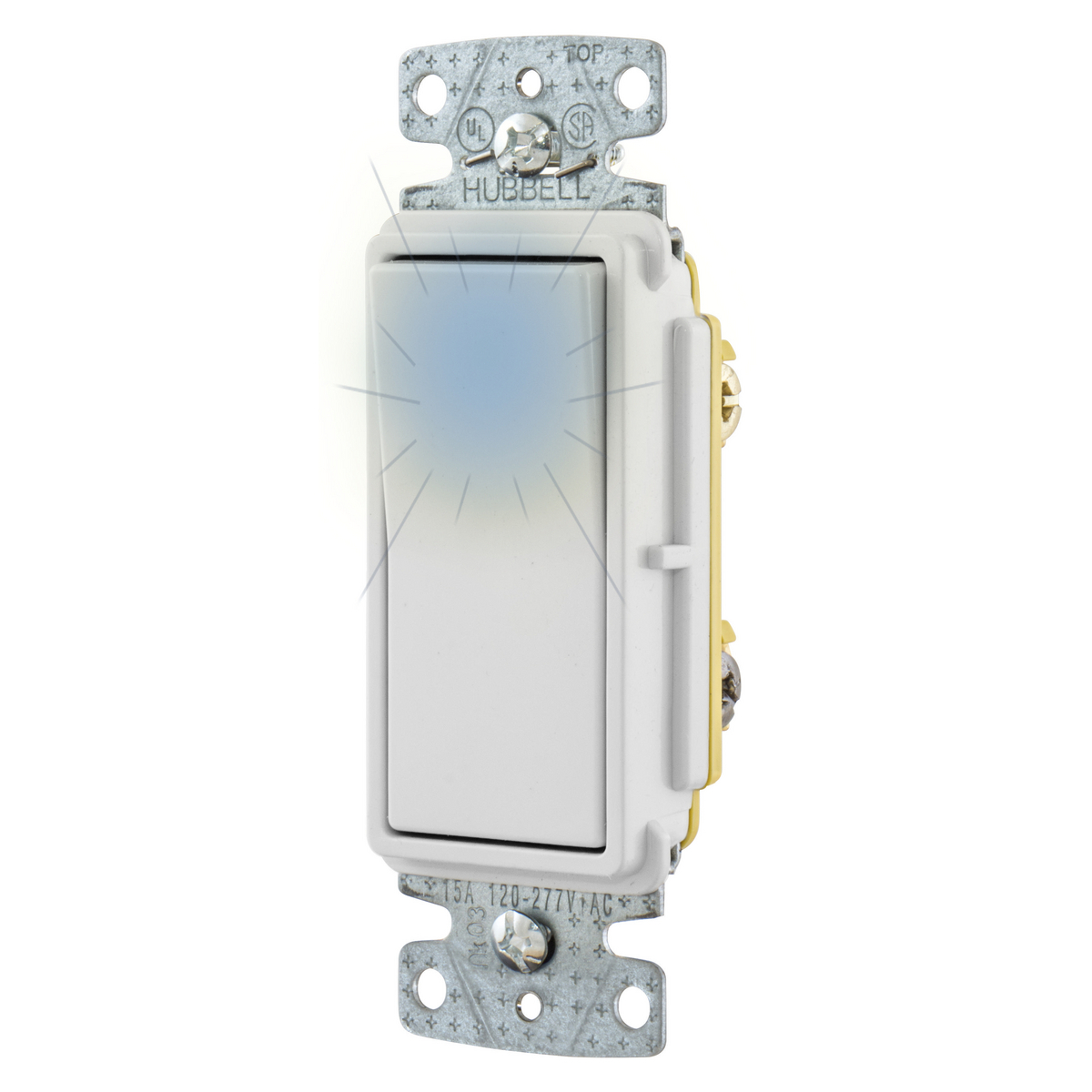

RSD315ILW RSD Illuminated General Purpose Self-Grounding Standard Decorator Switch, 120 V, 15 A, 1800 W Power Rating, 2 Position Contact
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- RSD315ILW
- UPC:
- 883778101304
- Item #:
- 28417
RSD315ILW RSD Illuminated General Purpose Self-Grounding Standard Decorator Switch, 120 V, 15 A, 1800 W Power Rating, 2 Position Contact
- MFR #:
- RSD315ILW
- UPC:
- 883778101304
- Item #:
- 28417
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$41.78
each
Manuals and Documentation
| Catalog Number | RSD315ILW |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Action | Positive Snap |
| Actuator | Rocker |
| Amperage Rating | 15 |
| Application | Residential Wiring Devices |
| Color | White |
| Connection | Terminal Screw |
| Contact Configuration | 2 Position |
| Contact Rating | Per UL 20 |
| Material | Composite |
| Mounting | Screw |
| Number of Poles | 3 |
| Operating Cycles | 50,000 Cycles |
| Special Features | Standard Product |
| Standard | CSA Certified;UL Listed E3896 |
| UPC | 883778101304 |
| GTIN | 00883778101304 |
| Item Type | General Purpose Switches |
| Size | Standard Sized |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| Operating Temperature | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Voltage Rating | 120 |
| Wattage | 1800 W |
| Cross Reference Products | 5613-2W |
