Hubbell Wiring Device - Kellems

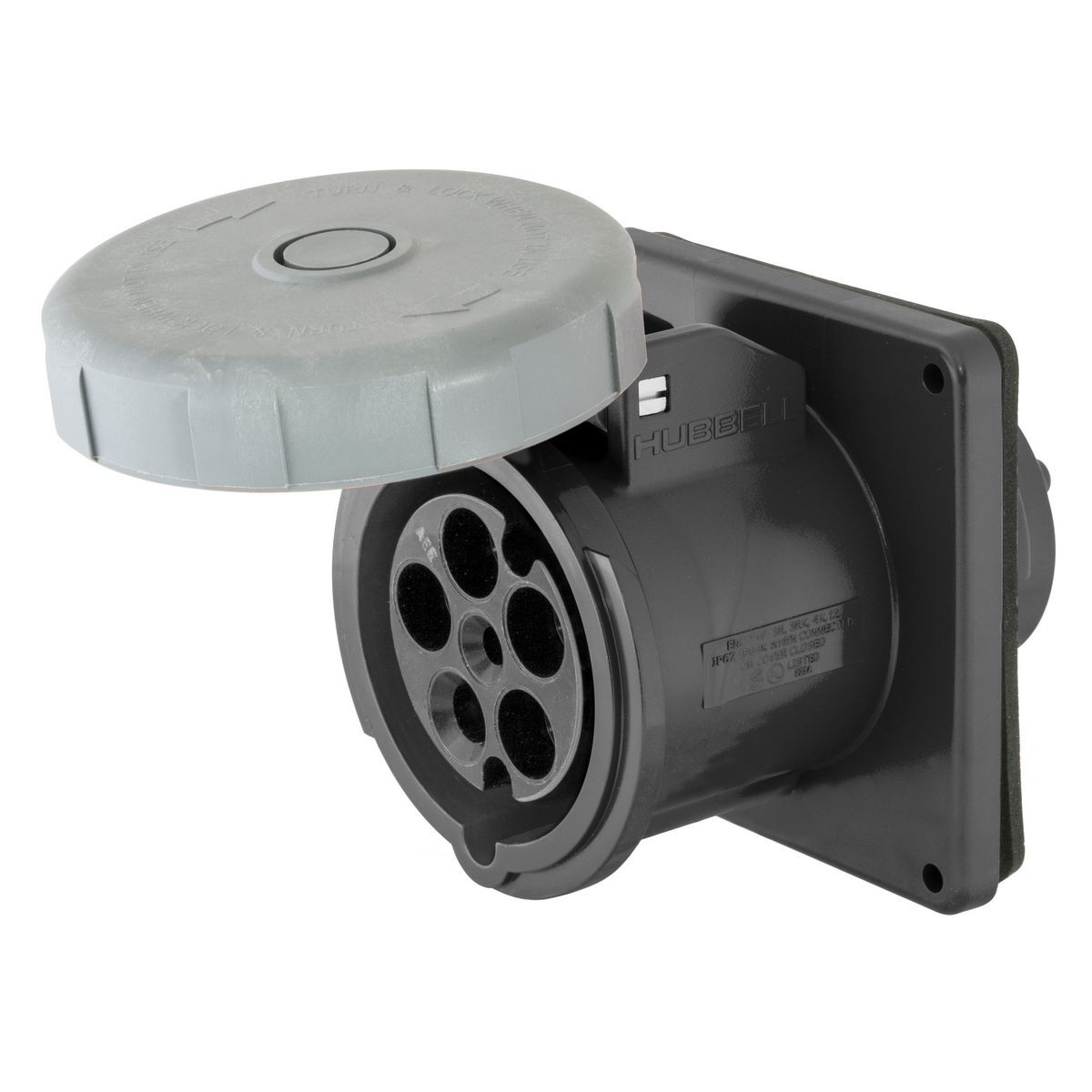

HBL5100R5W 3-Phase Flanged Grounding Non-NEMA Single Flanged Standard Watertight Screw Mount Pin and Sleeve Receptacle, 347/600Y V AC, 100 A, 4 Poles, 5 Wires, Black

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL5100R5W
UPC:
783585405100
Item #:
283638

Availability

Location Available Qty
Available Available to Order
$809.61 each

Watertight Devices - Hubbells IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbells horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting line of sight disconnecting means.

Manuals and Documentation
Catalog Number HBL5100R5W
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin United States
Made in USA Yes
Amperage Rating 100
Application High Ampacity Watertight Connections
Color Black
Connection Pressure Screw Terminals
Material Thermoplastic
Mounting Screw
Number of Poles 4
Number of Wires 5-Wire
Phase 3
Special Features Watertight
Standard Listed To Standard UL1682
UPC 783585405100
GTIN 00783585405100
Item Type Watertight Receptacle
Size Standard Sized Product
Environmental Conditions Watertight
Voltage Rating 3 Phase Y 347/600
Wattage 60,000
Wire Size #3 AWG to #1/0 AWG
