Panduit

UTP28CH1BL PanNet Pan-Plug TX5e-28 Class D Small Diameter Patch Cord, Cat 5E, 28 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 1 ft L Cord, Black

MFR:
Panduit
MFR #:
UTP28CH1BL
UPC:
074983485468
Item #:
280536

Availability

Location Available Qty
Available Available to Order
$10.88 each

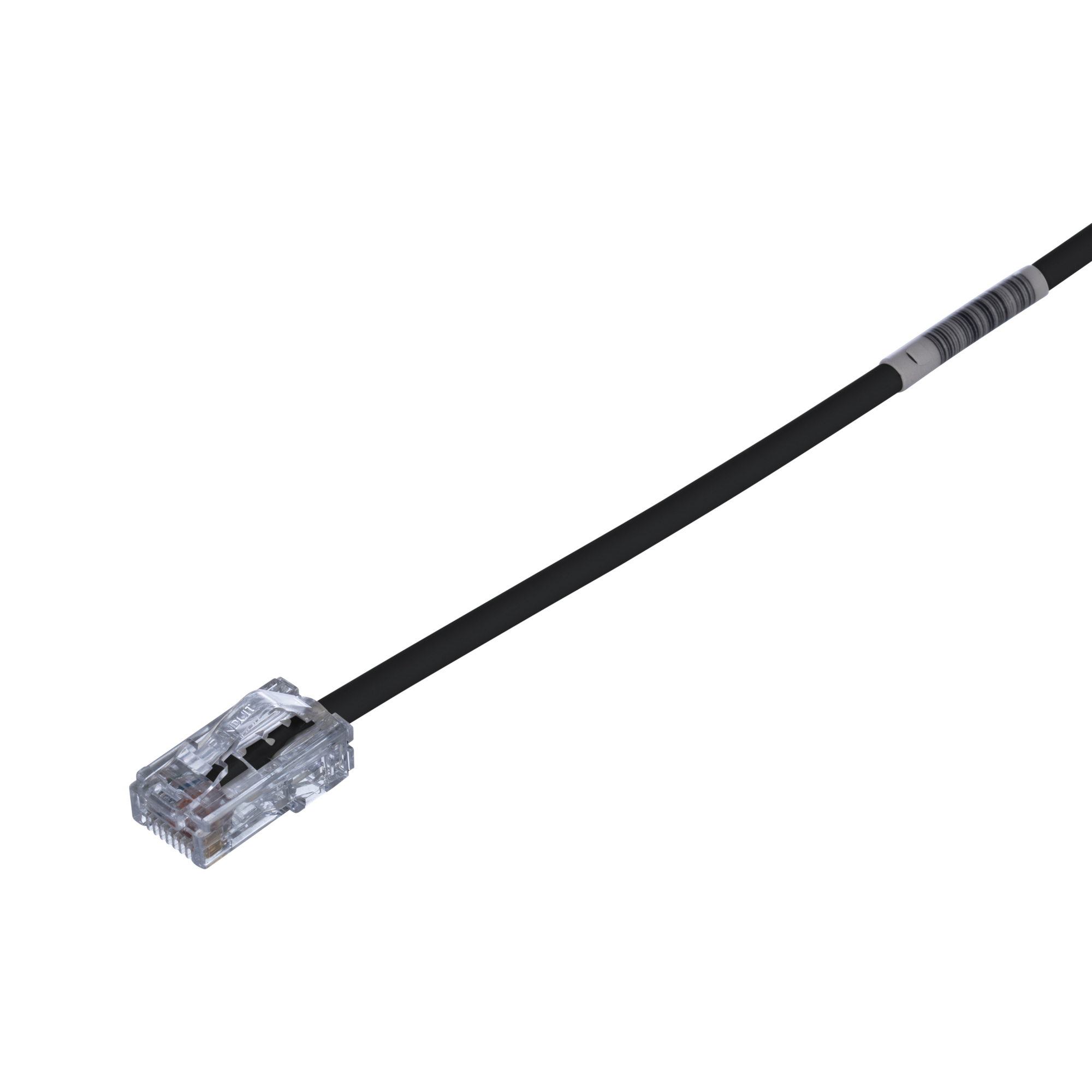

The TX5e Cat 5e UTP Patch Cord is a 1-Foot, 0.150-inch (3.8mm) diameter, Black cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Manuals and Documentation
Catalog Number UTP28CH1BL
Manufacturer Panduit
Brand Panduit
Country of Origin Multiple
Made in USA No
Application (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP)
Color Black
Conductor Material Copper
Jacket Material LSZH Material
Plug Type Modular Plug
Standard Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/8
UPC 074983485468
GTIN 00074983485468
Item Type Patch Cord
Length 1.00
Length UOM Inch
Outside Diameter 0.149 IN
Temperature Rating 140 °F
Wire Size 28
