Panduit®

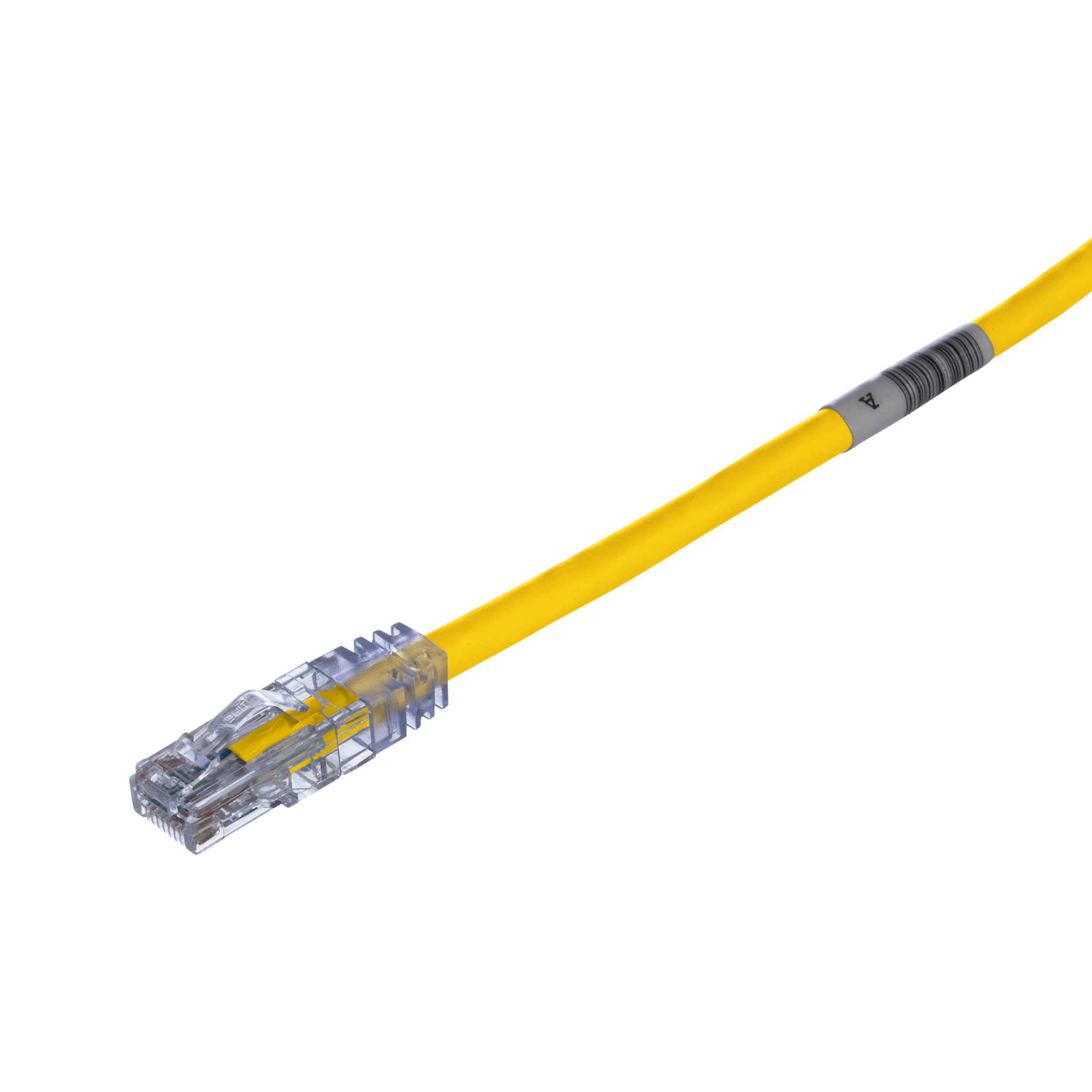

UTPSP8YLY PanNet TX6 Plus Class E Patch Cord, Cat 6, 24 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 8 ft L Cord, Yellow

MFR:
Panduit
MFR #:
UTPSP8YLY
UPC:
074983171491
Item #:
280315

Availability

Location Available Qty
Available Available to Order
$23.90 each

Category 6/Class E, UTP patch cords shall be constructed of 24 AWG unshielded twisted pair stranded copper cable with an enhanced performance modular plug at each end. Patch cord cable shall be offered in multiple colored UTP cable for design flexibility with a clear strain relief boot on each modular plug. All patch cords shall be compatible with both T568A and T568B wiring schemes.

Manuals and Documentation

Features

  • 100% performance tested for wire map, next and return loss
  • Centred de-embedded plug
  • Integral pair manager
  • Patented tangle-free latch
  • Slender strain relief boot
  • Robust construction
  • 100% performance tested for wire map, NEXT and return loss
  • Centered de-embedded plug
  • Integral pair manager
  • Patented tangle free latch
  • Slender strain relief boot
  • Flexible stranded cable
  • Provides identification of performance level, length and quality control number for future traceability
  • Variety of cable colors and lengths
  • Robust construction
Manufacturer Part Number UTPSP8YLY
Brand Panduit®
Manufacturer Panduit
UPC 074983171491
EAN 0074983171491
Country Of Origin MX
Category Type Cat 6
Color Yellow
Conductor Type U/UTP Copper Stranded
Connector Type RJ45 Modular Plug Boot
Cord Length 8 ft
Jacket Color Yellow
Temperature Rating 140
Type Class E
Alternative Part Number 9358252 | 9787346
Manufacturer Item Status Active
Country USA/Canada
Standards Approvals Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802 | ARRA Compliant | Buy American Act Compliant | RoHS Compliant | Meets IEC 60603-7 | ISO 11801 Class EA | IEEE 802.3af/802.3at/802.3bt Type 3 and Type 4 for PoE Compliance | UL 1863 | CSA Approved
Application 10BASE-T (Ethernet), 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10 Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards), 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Digital Video and Broadband/Baseband Analog Video and Voice over Internet Protocol (VoIP)
Includes TX6™ PLUS Modular Plugs on Each End
Conductor Size 24 AWG
Series UTPSP
Jacket Material Polyvinyl Chloride
