Discontinued
Square D

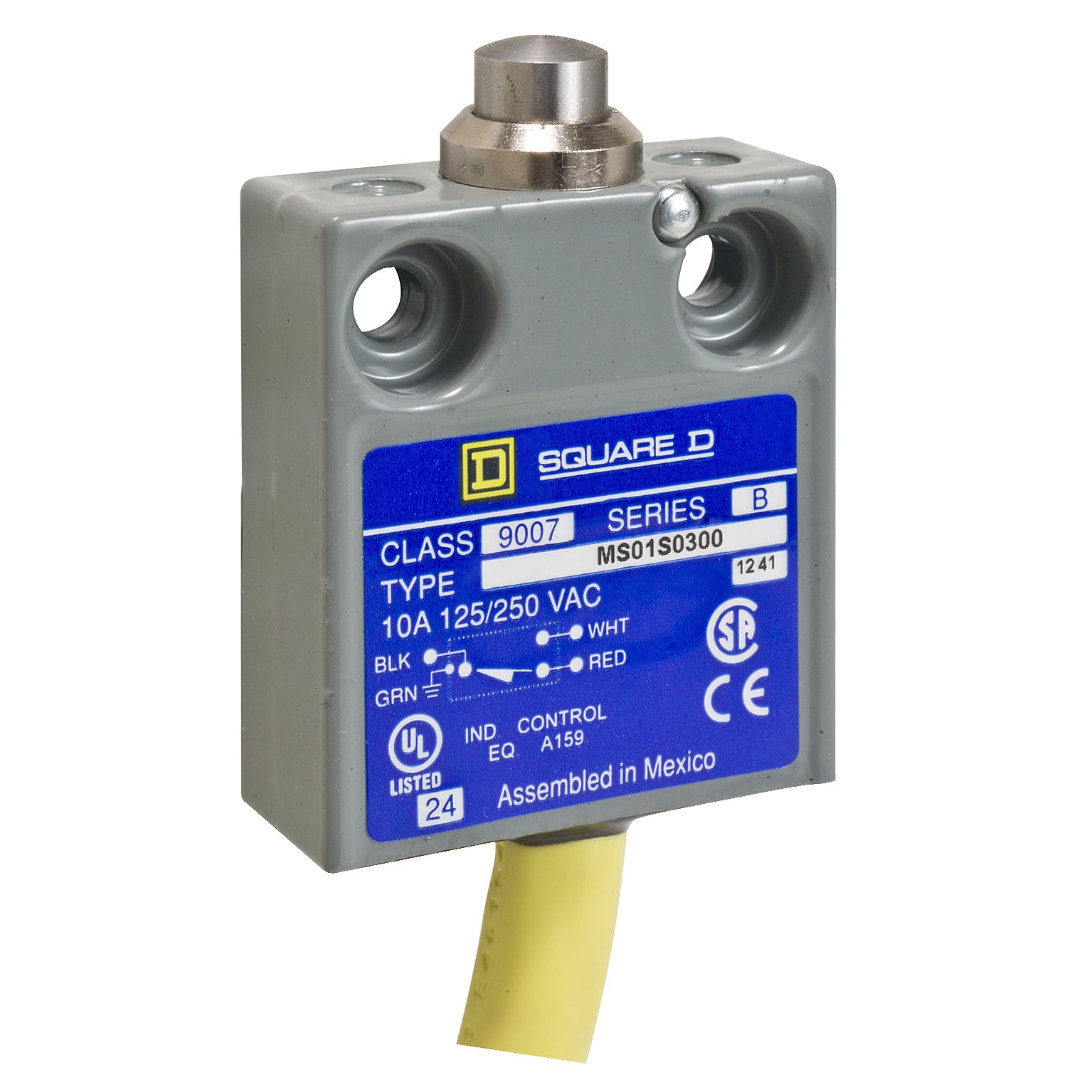

9007MS01G0300 Miniature Potted Fixed Limit Switch, 240 VAC, 10 A, Plunger Actuator, 1NO-1NC Contact, 1 Poles

MFR:
Schneider Electric
MFR #:
9007MS01G0300
UPC:
785901108184
Item #:
279892

Availability

Location Available Qty
Available Available to Order

9007MS limit switch - top push plunger - 9' bottom cable

Manuals and Documentation
Catalog Number 9007MS01G0300
Manufacturer Schneider Electric
Brand Square D
Country of Origin Mexico
Made in USA No
Action ON END,SNAP ACTION,VERTICAL APPROACH, 1 DIRECTION
Actuator SPRING RETURN PLUNGER STAINLESS STEEL -
Amperage Rating 10
Application 9007MS/ML,MINIATURE POTTED,PLUNGER HEAD
Connection PRE-WIRED CABLE BOTTOM
Contact Configuration NC-NO
Enclosure NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250
Mounting By The Body
Operating Cycles 100000 CYCLES
Special Features FIXED,METAL
Standard 10 GN 75-1200 HZ)IEC 60529,35 GN 9 MS IEC 60068-2-27,CE-CSA-UL,E78403-LR 25490 CLASS 32 11 03,IP67 IEC 60529
UPC 785901108184
GTIN 00785901108184
Item Type LIMIT SWITCH,PLUNGER HEAD
Size 0.62 IN,1.56 IN,1.75-1.75 IN
Operating Temperature -40-220 A Degrees F
Voltage Rating 100 MA 125 V AC-30 MA 28 V DC
