Appleton

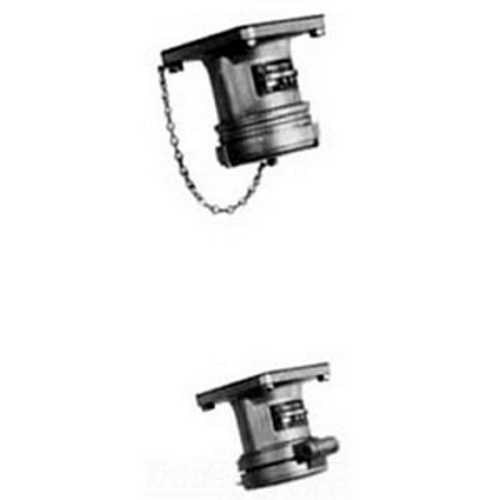

Powertite; Pin and Sleeve Receptacle; 100 Amp, 600 Volt AC, 250 Volt DC, 3-Pole, 2-Wire

MFR:
Appleton Electric
MFR #:
ADR1023
UPC:
781381186278
Item #:
279874

Availability

Location Available Qty
Available Available to Order
$841.56 each

Powertite Grounding Style 2 Receptacle, Number Of Poles: 3, Number Of Wires: 2, Wire Size: 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex), Amperage Rating: 100 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 1 PH, Material: Cop

Manuals and Documentation
Catalog Number ADR1023
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 100
Application For ACP1023CD Clamping Ring Plug
Connection Pressure Wire Terminal
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting Box
NEMA Rating 3, 3R, 4, 4X
Number of Poles 3
Number of Wires 2
Phase 1
Special Features Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 0.391 IN; Receptacle is NEMA 4X rated when screw cap is closed when the receptacle is not in use; Weatherproof spring door, brass with beryllium copper springs
Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
UPC 781381186278
GTIN 00781381186278
Item Type Grounding Style 2 Receptacle
Temperature Rating -40 To 107 DEG C
Voltage Rating 600 VAC At 50 - 400 HZ, 250 VDC
Wire Size 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex)
