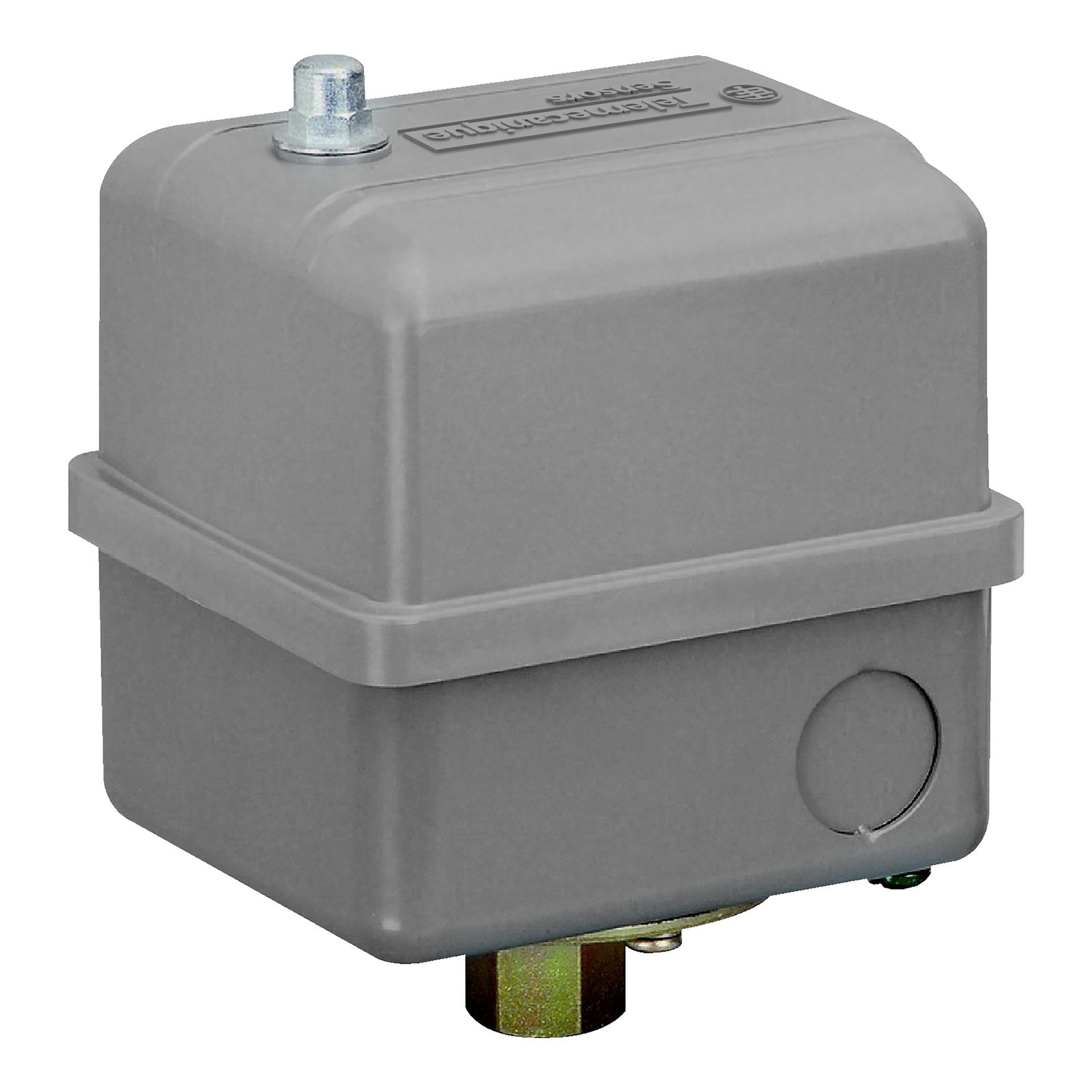

9013GHG6J63X Type G Adjustable Electro-Mechanical Pressure Switch, 32 to 215 psig Pressure, 2NC DPST-DB Contact, 3/8 in NPSF/Screw Clamp Connection
- MFR:
- Telemecanique Sensors
- MFR #:
- 9013GHG6J63X
- UPC:
- 785901053583
- Item #:
- 279208
9013GHG6J63X Type G Adjustable Electro-Mechanical Pressure Switch, 32 to 215 psig Pressure, 2NC DPST-DB Contact, 3/8 in NPSF/Screw Clamp Connection
- MFR #:
- 9013GHG6J63X
- UPC:
- 785901053583
- Item #:
- 279208
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$209.04
each
pump or compressor switch 9013GH - adjustable diff. - 145-175 psi
Manuals and Documentation
| Catalog Number | 9013GHG6J63X |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Control electrically driven water pumps and air compressors;Power circuit;Regulation between 2 thresholds |
| Contact Configuration | 2 NC, snap action, DPST-DB, Form YY |
| Enclosure | NEMA 1 UL 50 |
| Operating Cycles | 10 CYC/MN |
| Process Connection | 0.375 INCH NPSF INTERNAL UL 508 |
| Special Features | 2-way pressure release valve |
| Standard | IP20 IEC 60529,UL 508-NSF ANSI 372-CE,UL LISTED FILE E12158-CSA FILE LR25490 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=392871&lang=en-us |
| UPC | 785901053583 |
| GTIN | 00785901053583 |
| Item Type | Electromechanical pressure switch;Adjustable differential |
| Environmental Conditions | GENERAL PURPOSE (INDOOR) |
| Operating Temperature | -33-257 A Degrees F |
| System Pressure | 250 PSI 32-215 PSI) |
