Telemecanique

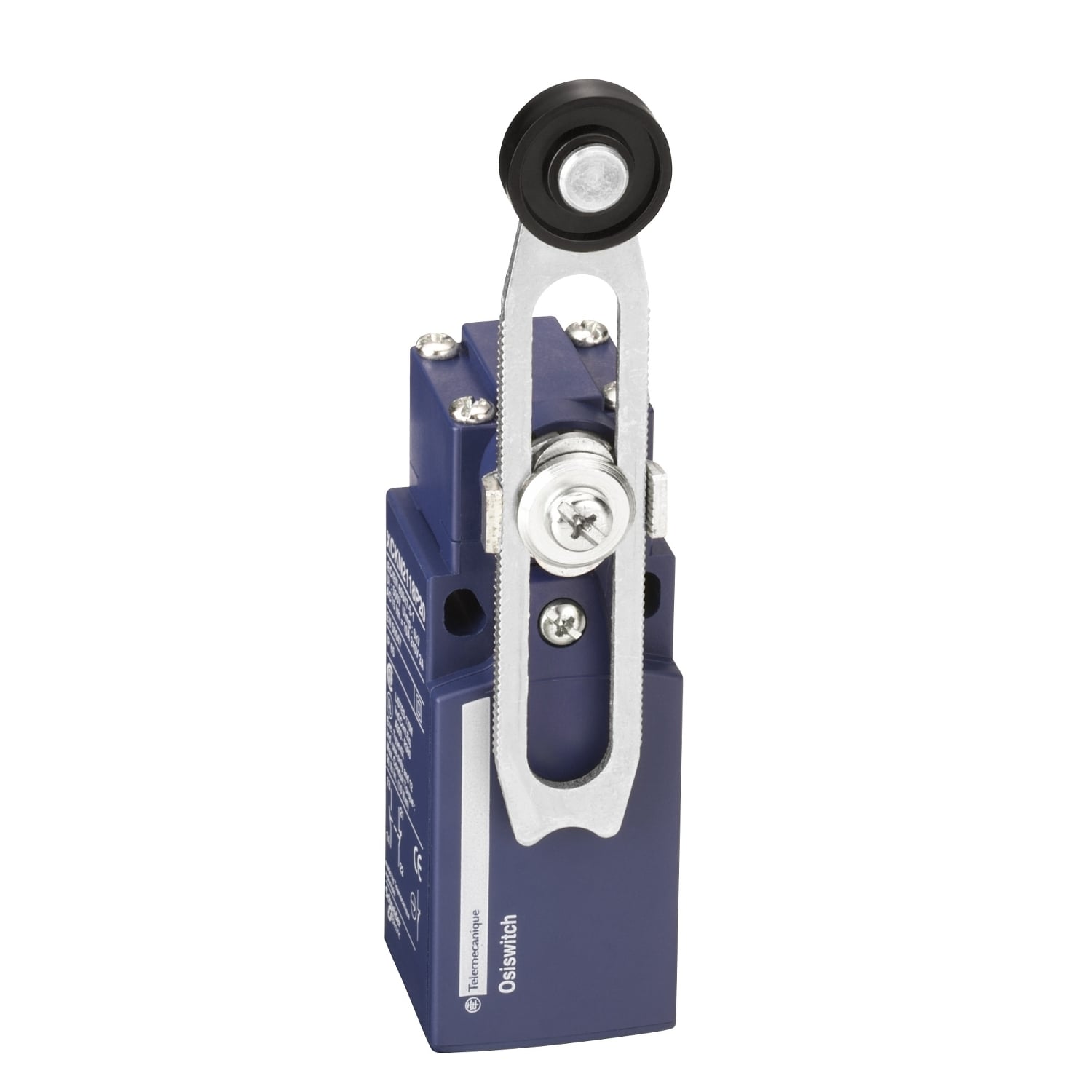

XCKN2145P20 OsiSense XC Standard Format Fixed Limit Switch, 250 V DC/240 V AC, 10 A, Spring Return Roller Lever Actuator, 1NO-1NC Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCKN2145P20
Item #:
278774

Availability

Location Available Qty
Available Available to Order
$46.56 each

This product is a compact format limit switch with 1 entry tapped M20 x 1.5 for ISO cable gland. It features a plastic fixed body and a rotary head, with a variable length thermoplastic roller lever. Contacts: 2-pole NC + NO, snap action. This limit switch is sold and packed in lots of 20.

Manuals and Documentation
Catalog Number XCKN2145P20
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Lateral approach, 2 directions;Snap action;By 30 Degrees cam
Actuator Spring return roller lever thermoplastic variable length
Application COMPACT BASIC
Connection Screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Contact Configuration 1 NC + 1 NO
Mounting By The Body
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED,PLASTIC
Standard 25 GN 10-500 HZ)IEC 60068-2-6,45 GN 11 MS IEC 60068-2-27,CSA-CCC-UL,IEC 60947-5-1-UL 508-CSA C22.2 NO 14-IEC 60204-1-EN 60204-1-EN 60947-5-1,IK04 EN 50102,IP65 IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856980&lang=en-us
GTIN 03389110214321
Item Type Limit switch
Size 1.65
Operating Temperature -25-70 A Degrees C
