Appleton

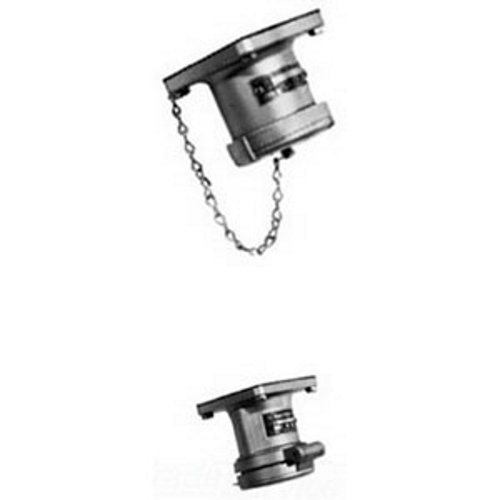

4-Pole Pin & Sleeve Receptacle, 600 VAC, 250 VDC, 30 A, 4-Wire

MFR: Appleton Electric
MFR #: ADR3044-RS
UPC: 781381710411
Item #: 27851
4-Pole Pin & Sleeve Receptacle, 600 VAC, 250 VDC, 30 A, 4-Wire
Appleton Electric

4-Pole Pin & Sleeve Receptacle, 600 VAC, 250 VDC, 30 A, 4-Wire

MFR #: ADR3044-RS
UPC: 781381710411
Item #: 27851
Availability
Location Available Qty
Available Available to Order
$382.53 each

Powertite Grounding Style 1 Receptacle, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex), Amperage Rating: 30 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material:

Catalog Number
ADR3044-RS
Manufacturer
Appleton Electric
Brand
Appleton
Country of Origin
Mexico
Made in USA
No
Amperage Rating
30
Application
For ACP3044BC Metallic Clamping Ring Plug
Connection
Pressure Wire Terminal
Material
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting
Box
NEMA Rating
3, 3R, 4, 4X
Number of Poles
4
Number of Wires
4
Phase
3
Special Features
For reverse service (generator applications); Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 9/32 IN; Receptacle is NEMA 4X rated when screw cap is closed when the receptacle is not in use; Weatherproof spring door, brass with beryllium copper springs
Standard
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
UPC
781381710411
GTIN
00781381710411
Item Type
Grounding Style 1 Receptacle
Temperature Rating
-40 To 107 DEG C
Voltage Rating
600 VAC At 50 - 400 HZ, 250 VDC
Wire Size
10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex)
