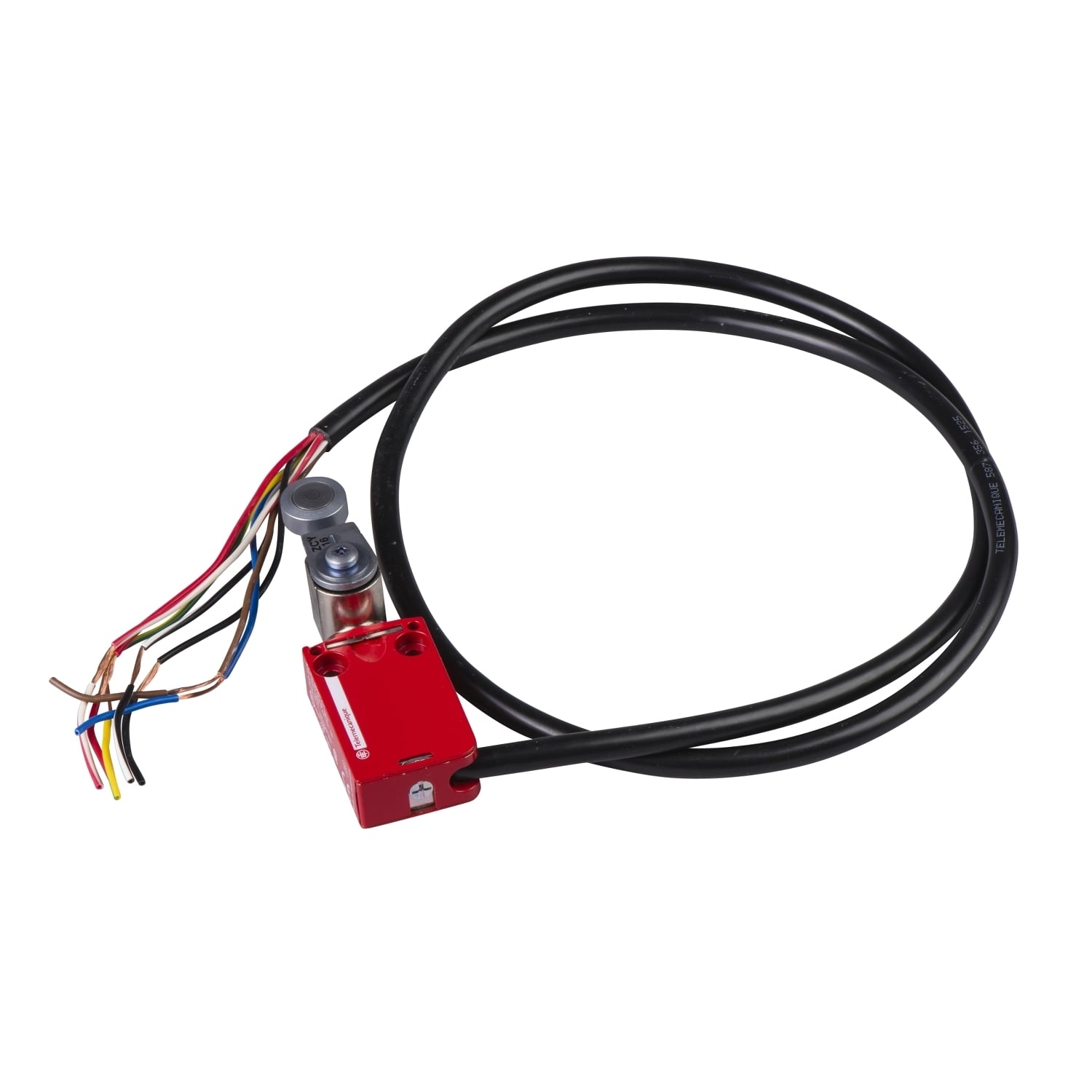

XCSM3916L5 Preventa Safety Limit Switch, 240 V AC, 5 A, Roller Lever Actuator, 1NO-1NC-1NC Contact, 3 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCSM3916L5
- UPC:
- 785901681106
- Item #:
- 27823
XCSM3916L5 Preventa Safety Limit Switch, 240 V AC, 5 A, Roller Lever Actuator, 1NO-1NC-1NC Contact, 3 Poles
- MFR #:
- XCSM3916L5
- UPC:
- 785901681106
- Item #:
- 27823
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$228.12
each
safety limit switch XCSM - metal - rotary lever - 2 NC + 1 NO - cable 5 m
Manuals and Documentation
| Catalog Number | XCSM3916L5 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Action | Lateral approach;Snap action;By 30 Degrees cam |
| Actuator | Steel roller lever |
| Application | ROTARY HEAD |
| Connection | Pre-cabled |
| Contact Configuration | 1 NC + 1 NC + 1 NO |
| Mounting | By The Body |
| Special Features | Plastic protective cover, secured by 5-lobe socket head safety screw |
| Standard | 25 GN 18 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,EN/IEC 60204-1-EN 1088-CSA C22.2 NO 14-EN/IEC 60947-5-1-UL 508,IK06 EN 50102,IP66 IEC 60529-IP67 IEC 60529-IP68 IEC 60529,UL-CSA,CLASS I NF C 20-030-CLASS I EN/IEC 61140 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=859714&lang=en-us |
| UPC | 785901681106 |
| GTIN | 03389110244090 |
| Item Type | Safety limit switch |
| Size | 1.34 |
| Operating Temperature | -25-70 A Degrees C |
