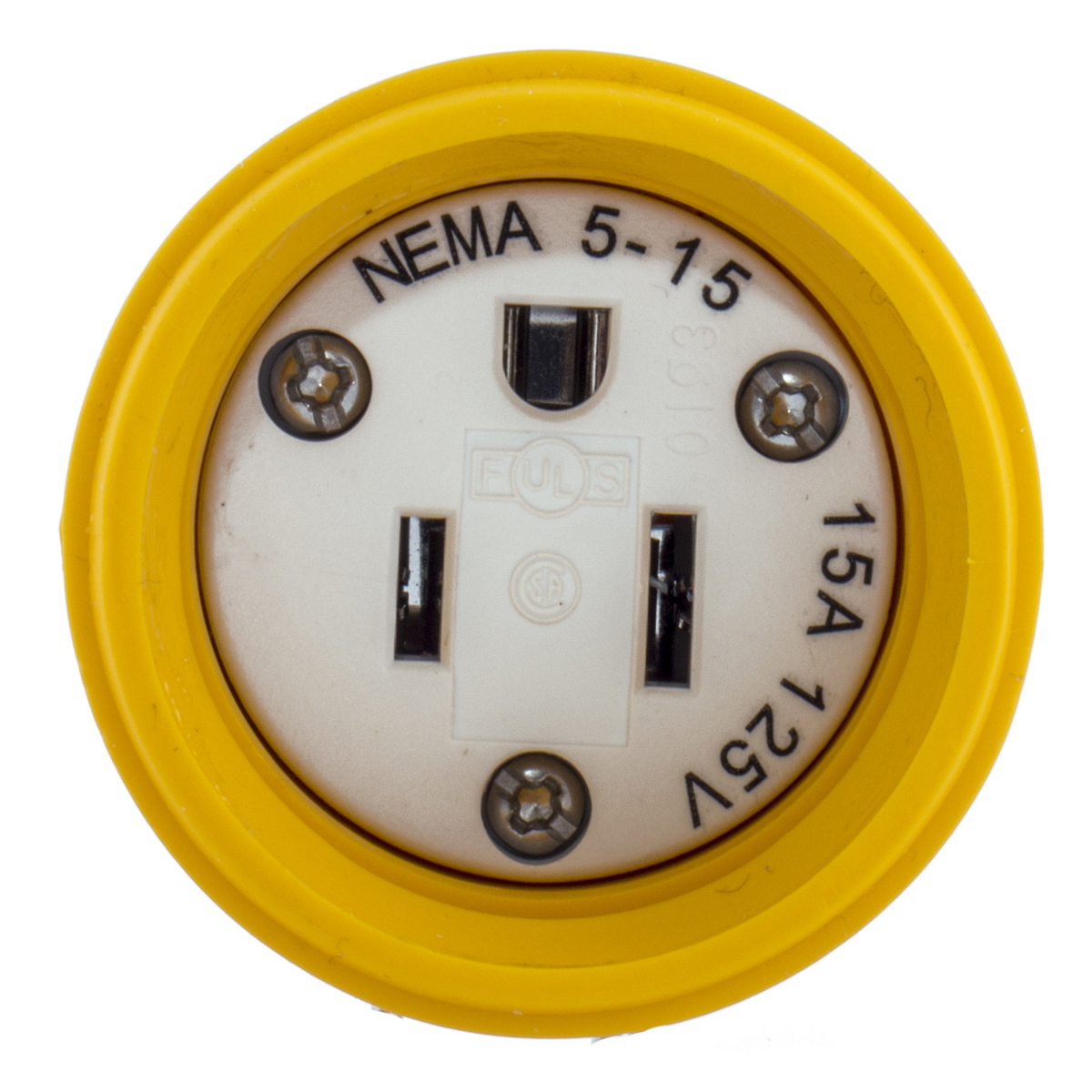

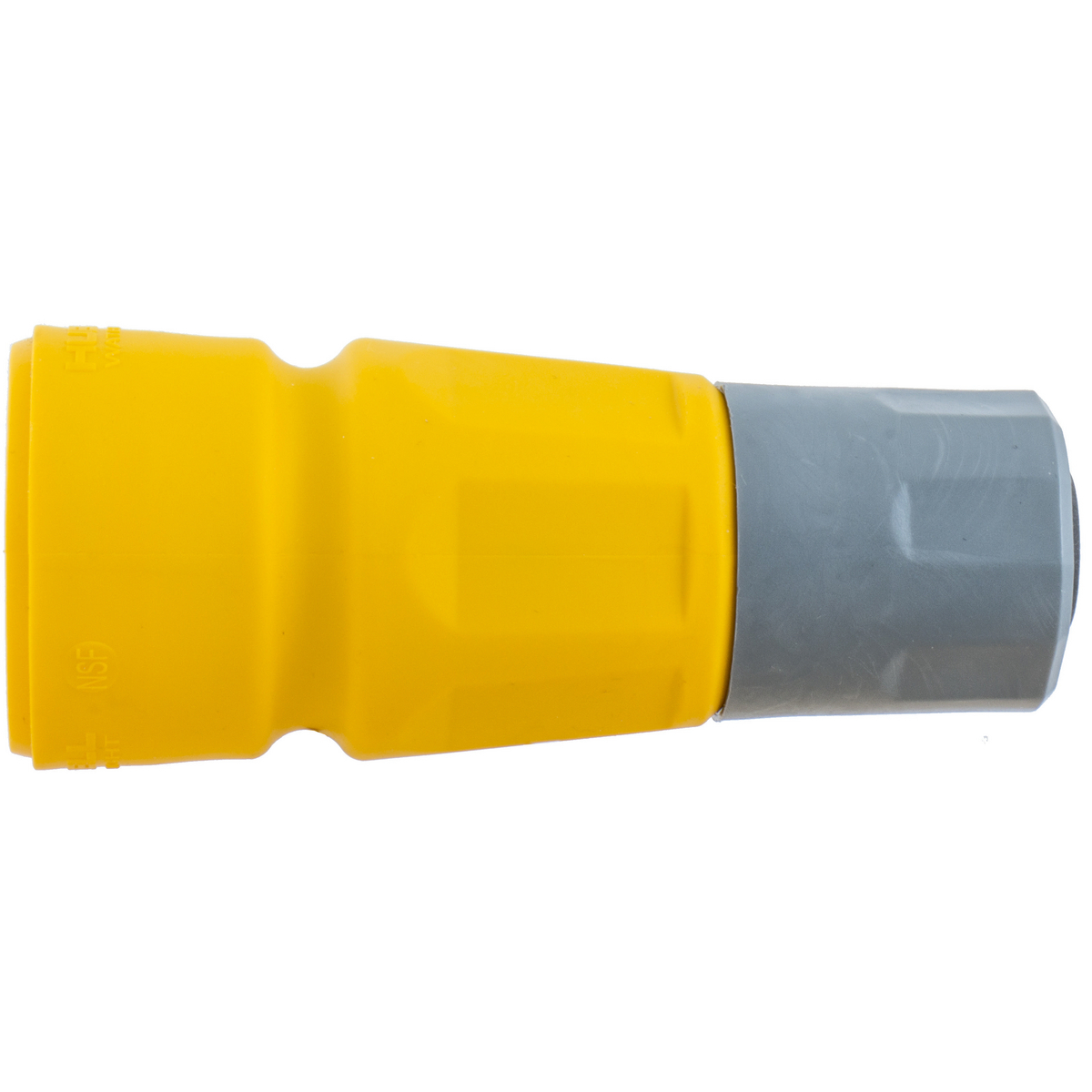

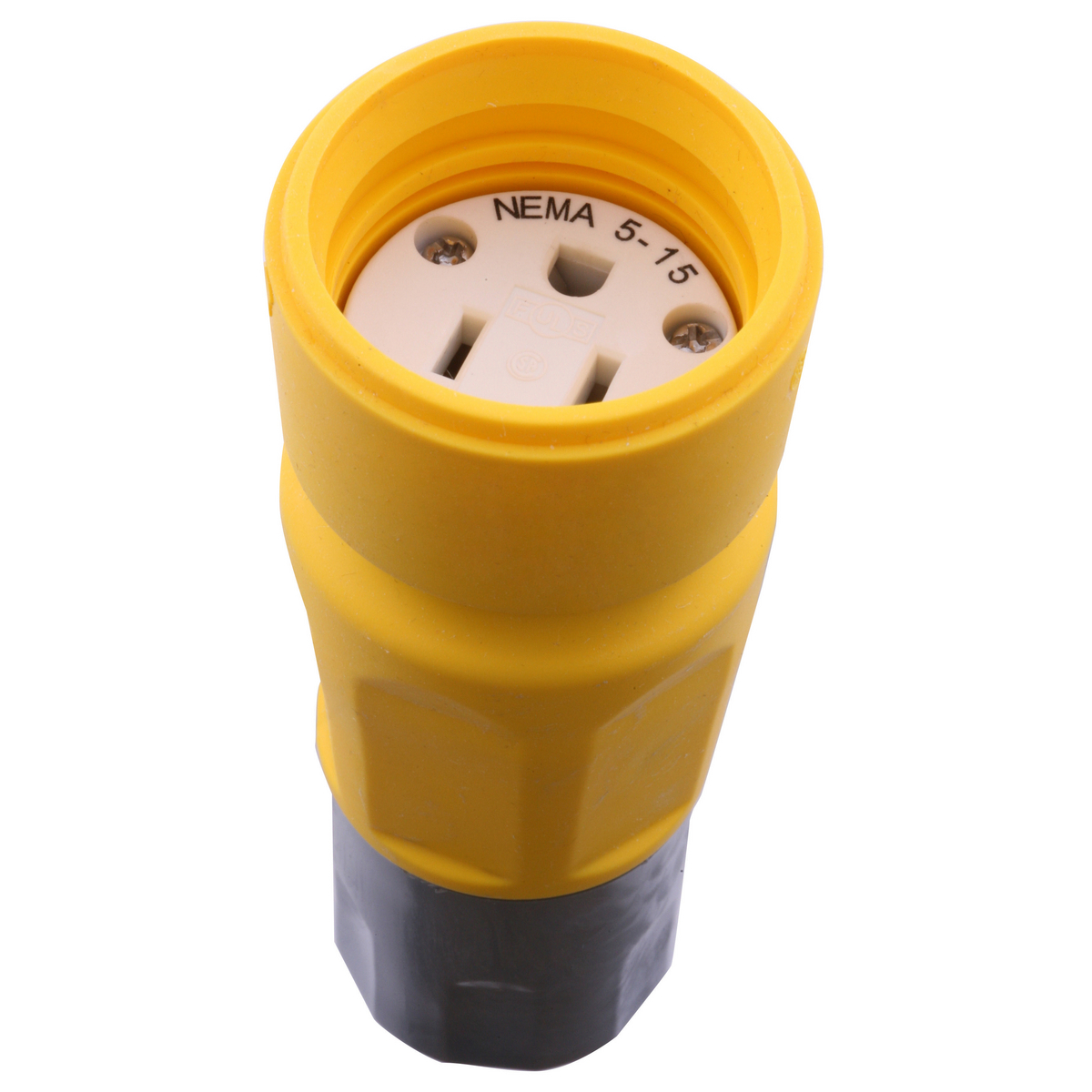

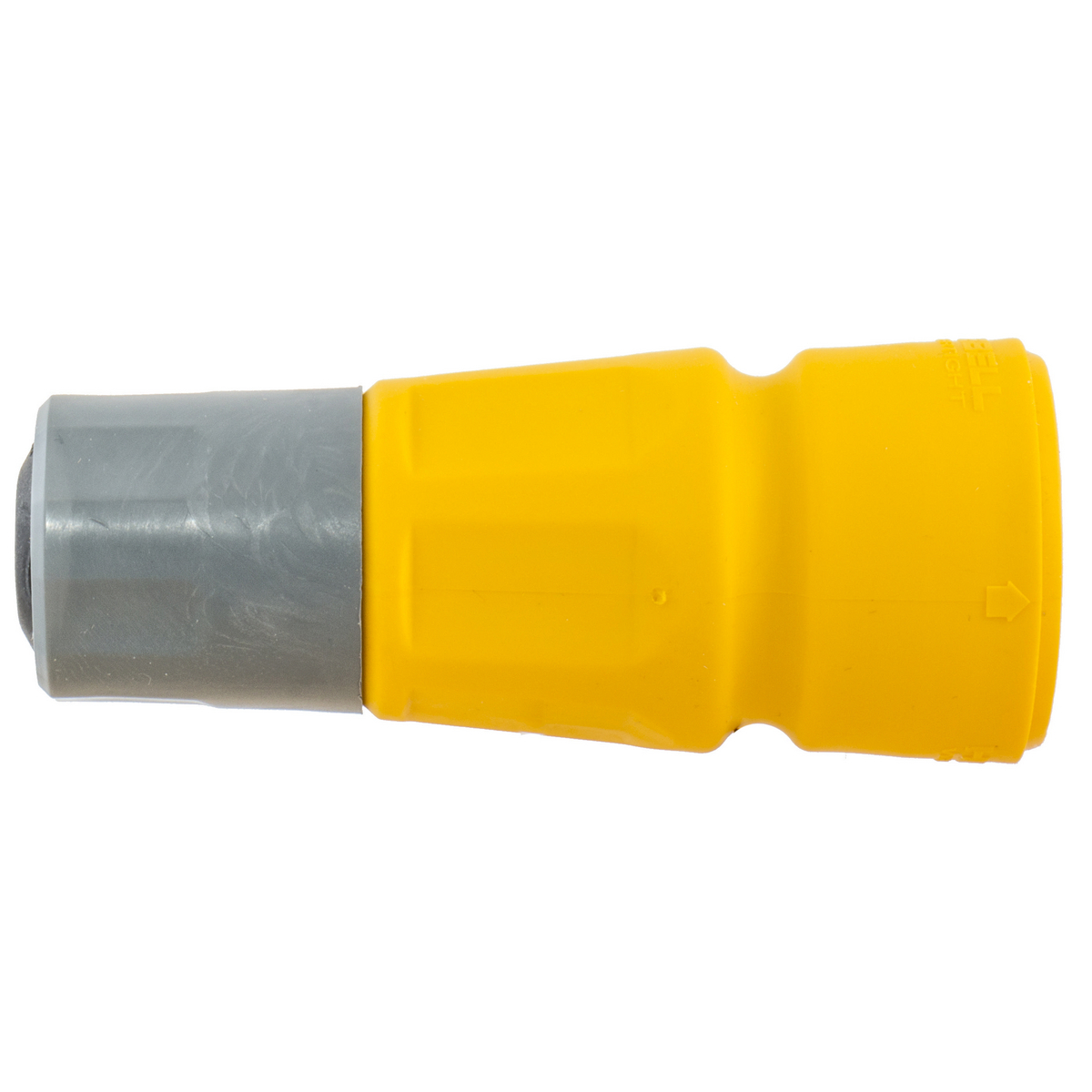

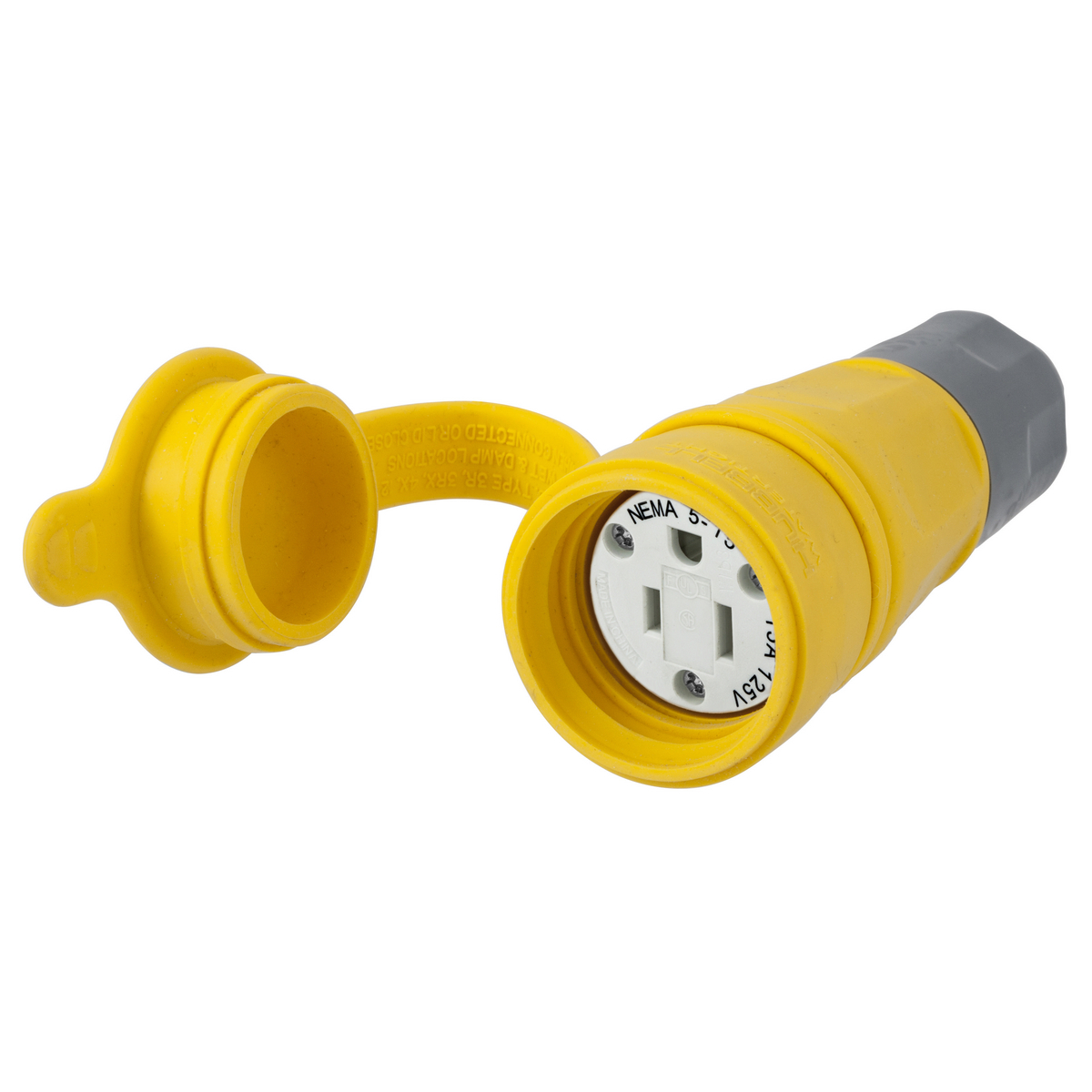

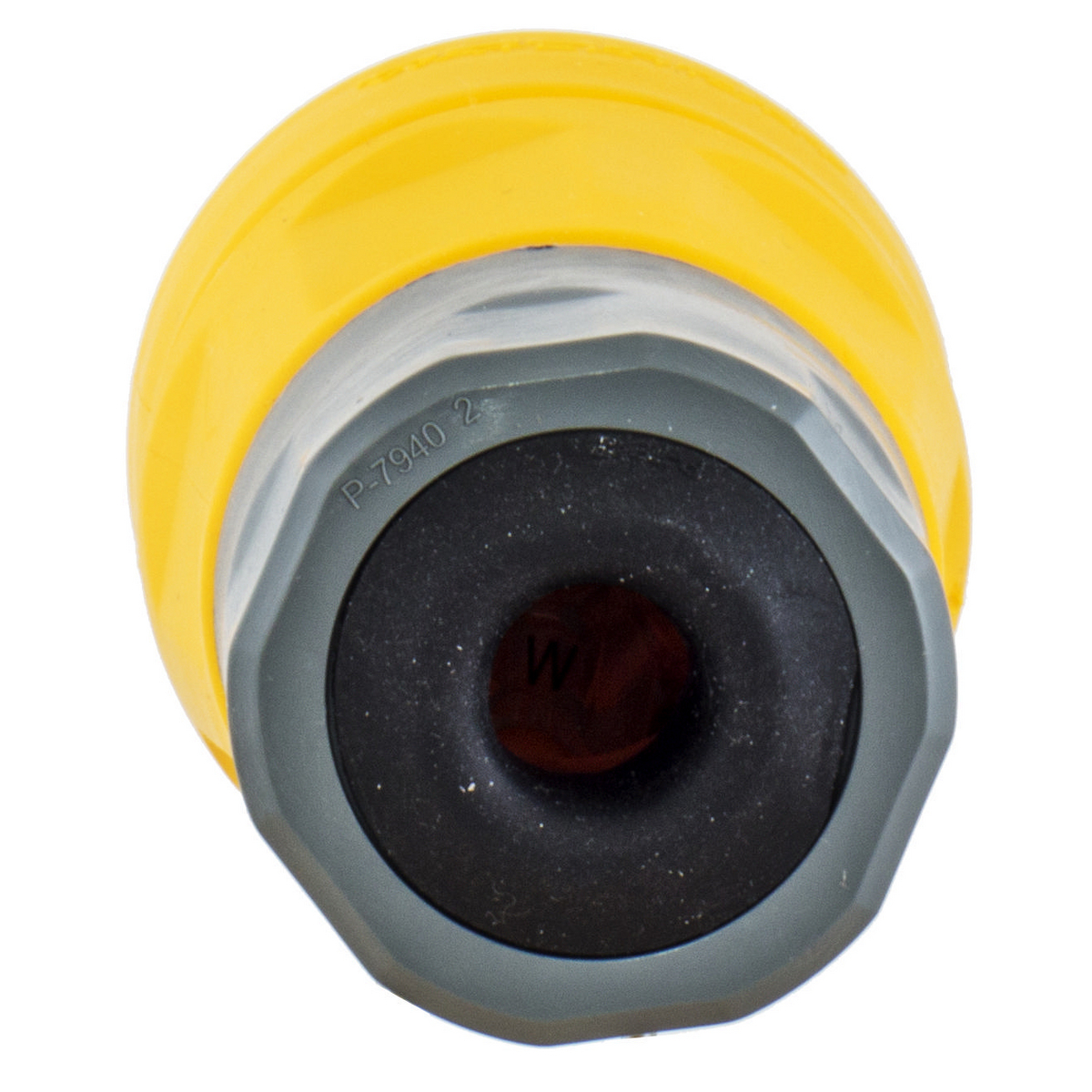

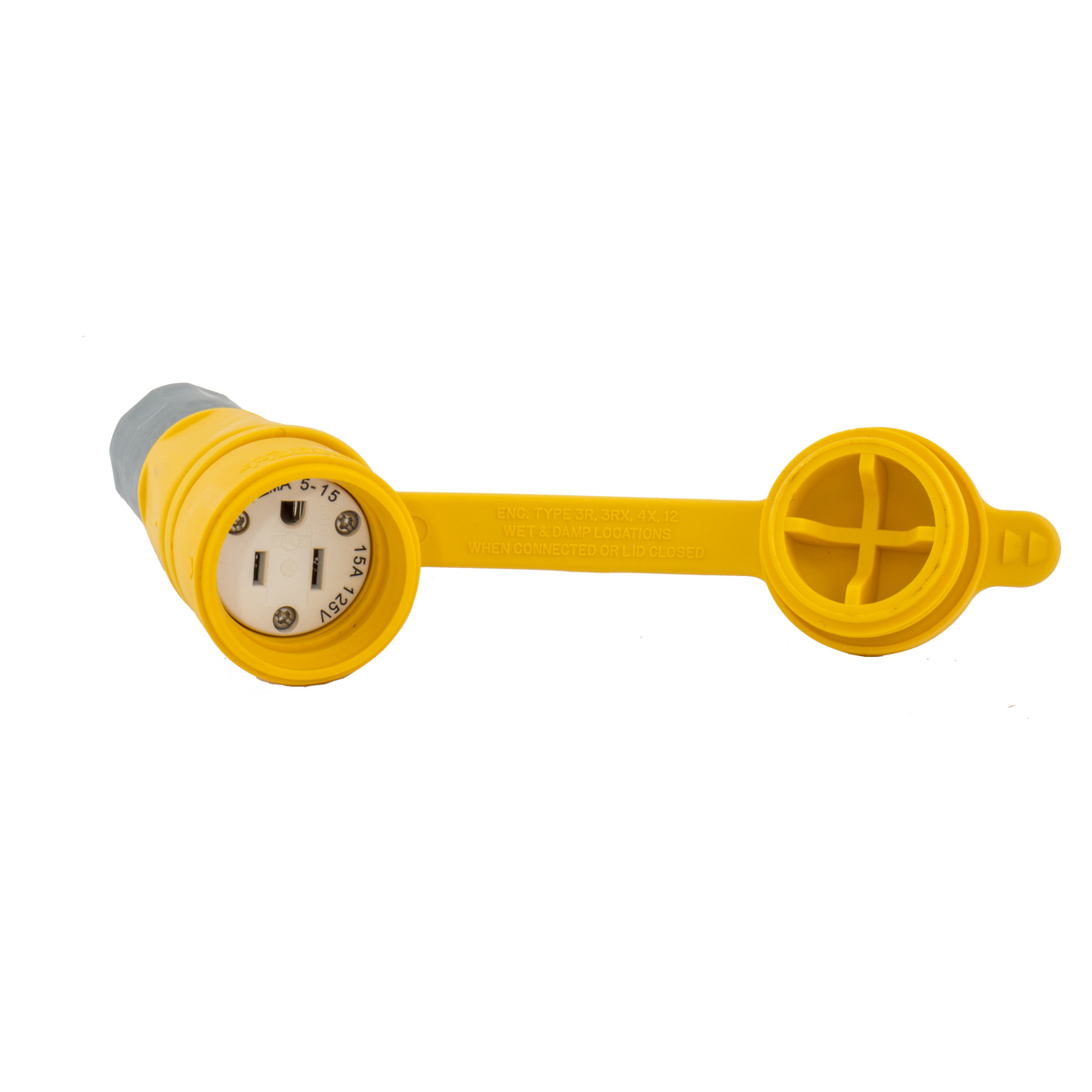

HBL15W47A Female Grounding Insulated Watertight Cord Mount Straight Blade Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, Yellow
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL15W47A
- UPC:
- 783585131276
- Item #:
- 277852
HBL15W47A Female Grounding Insulated Watertight Cord Mount Straight Blade Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, Yellow
- MFR #:
- HBL15W47A
- UPC:
- 783585131276
- Item #:
- 277852
Availability
| Location | Available Qty |
|---|---|
| Available | 29 ea |
$59.26
each
Manuals and Documentation
| Catalog Number | HBL15W47A |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 15 |
| Application | Industrial/Commercial |
| Color | Yellow |
| Conductor Range | #14AWG to #12AWG |
| Connection | Terminal Screws |
| Insulation | Insulated Body |
| Material | Elastomer/Composite |
| Mounting | Cord |
| NEMA Rating | 5 |
| Number of Conductors | 3-Wire Grounding |
| Number of Poles | 2 |
| Special Features | Water-Tight |
| Standard | IP69K rating;Listed to UL498;Certified to CSA C22.2 No. 42;Meets NEMA WD-1, WD-6 And ANSI Standards;UL Listed, CSA Certified to Type 4, 4X, 12, 6, 6P |
| UPC | 783585131276 |
| GTIN | 00783585131276 |
| Item Type | Connector Body |
| Size | Standard Sized Product |
| Environmental Conditions | Water Tight |
| Temperature Rating | -40 Degrees C (without impact) to +60 Degrees C continuous |
| Voltage Rating | 125 |
| Cross Reference Products | 15W47, 15W47, 15W47 |
