Discontinued

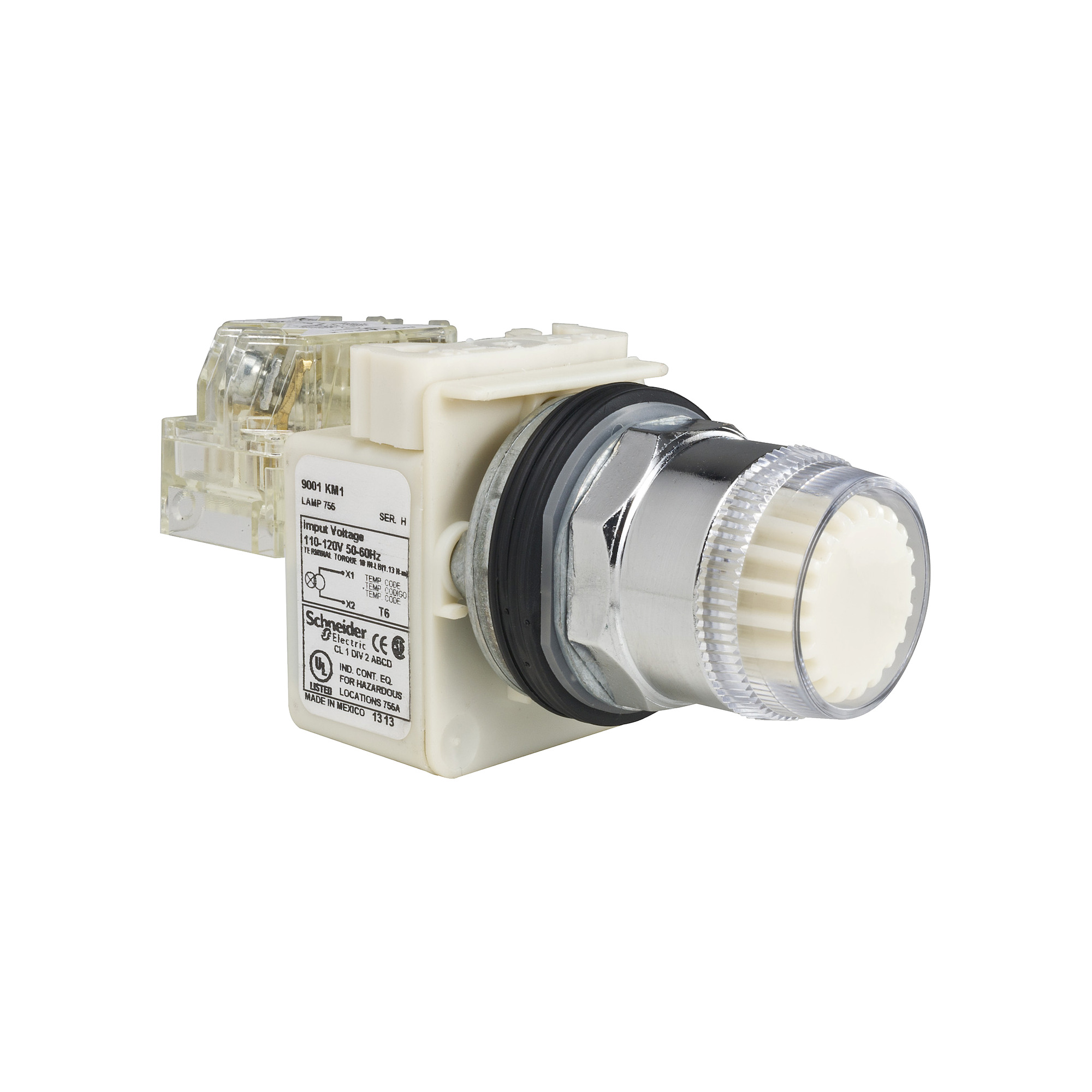

9001K1L35LWWH13 Type K Illuminated Pushbutton, 30 mm, 1CO Contact, White
- MFR:
- Schneider Electric
- MFR #:
- 9001K1L35LWWH13
- UPC:
- 785901659273
- Item #:
- 277664
Discontinued
9001K1L35LWWH13 Type K Illuminated Pushbutton, 30 mm, 1CO Contact, White
- MFR #:
- 9001K1L35LWWH13
- UPC:
- 785901659273
- Item #:
- 277664
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
PUSHBUTTON OPERATOR 30 TYPE K with options
Manuals and Documentation
| Catalog Number | 9001K1L35LWWH13 |
| Manufacturer | Schneider Electric |
| Brand | Square D by Schneider Electric |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | STANDARD |
| Actuator | SPRING RETURN,WHITE FLUSH, UNMARKED |
| Connection | SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA² IEC 60947-1 |
| Contact Configuration | 1 C/O |
| Enclosure | NEMA 1/2/3/3R/4/6/12/13 |
| Indicator | BA 9S |
| Mounting | Panel Mount |
| Special Features | FULL GUARD IN PLASTIC |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,IP66 IEC 60529,UL LISTED FILE E42259 CCN NKCR-NEMA-CSA LR 25490 CLASS 3211 03-CE |
| UPC | 785901659273 |
| GTIN | 00785901659273 |
| Item Type | ILLUMINATED PUSH-BUTTON |
| Size | 30 MM |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 24...28 V AC/DC |
