XS218SAMAU20 OsiSense XS 2-Wire Fixed Cylindrical Non-Shielded Inductive Proximity Sensor, Inductive, Discrete Output, 1NO Contact, 24 to 240 VAC, 24 to 240 VDC
- MFR:
- Telemecanique Sensors
- MFR #:
- XS218SAMAU20
- UPC:
- 785901876731
- Item #:
- 276187
XS218SAMAU20 OsiSense XS 2-Wire Fixed Cylindrical Non-Shielded Inductive Proximity Sensor, Inductive, Discrete Output, 1NO Contact, 24 to 240 VAC, 24 to 240 VDC
- MFR #:
- XS218SAMAU20
- UPC:
- 785901876731
- Item #:
- 276187
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

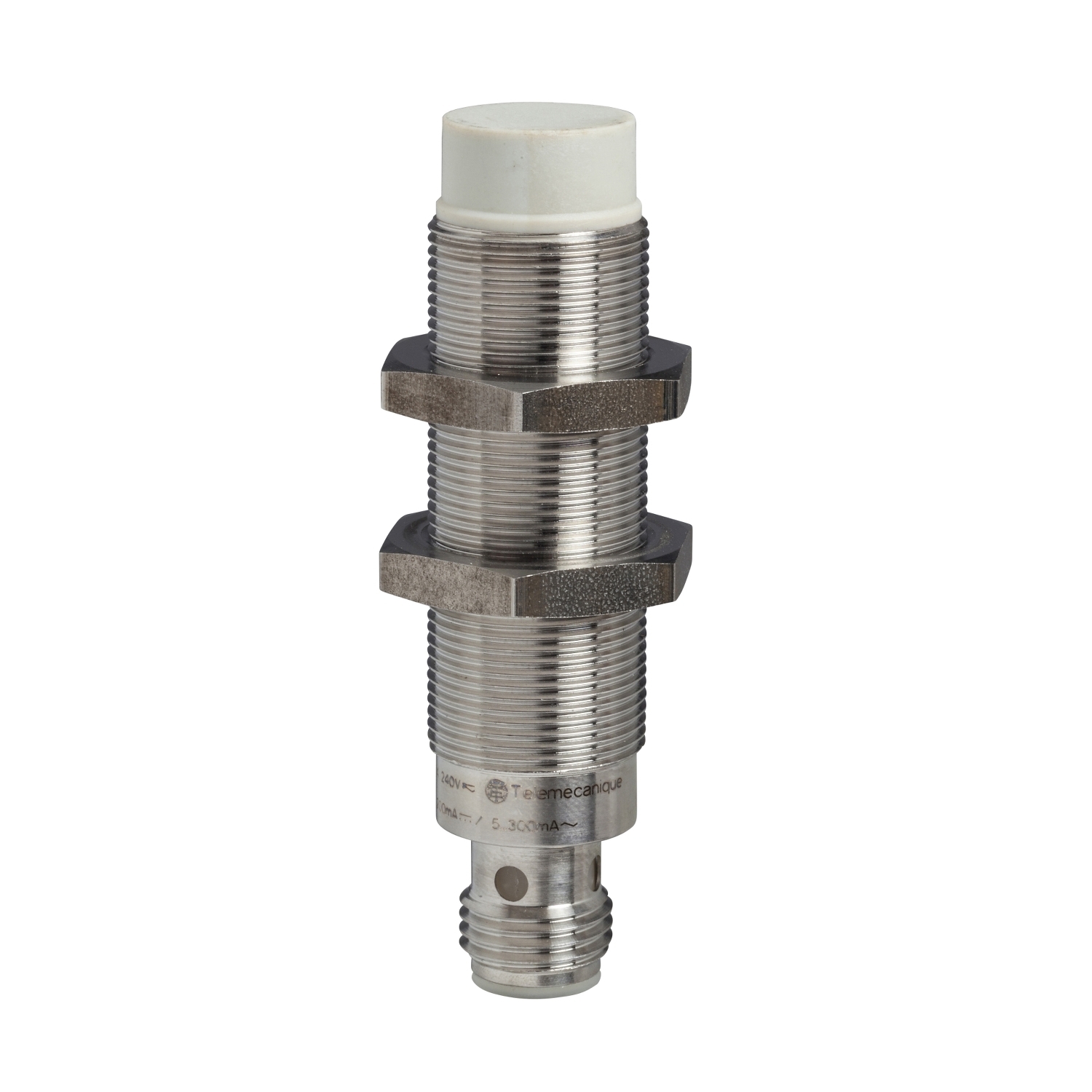

The XS range is an offer of inductive proximity sensors for the detection of metal objects up to 60mm without physical contact. The oscillator produces an alternating electromagnetic field that exits the detection area of the sensor. Any metallic object penetrating this field is then detected. This threaded cylindrical (M18) inductive proximity sensor is designed for food and beverage industries. It is made of stainless steel and it is non flush mountable. Its nominal sensing distance is 12mm, it supports 1 normally open 2-wire discrete output and it has a switching frequency of 25Hz (AC voltage) / 1000Hz (DC voltage). It works in a temperature range of -25C and +85C, it is dustproof, waterproof (IP67), and withstands high pressure and steam cleaning (IP69K). It is made of stainless steel. It measures 70mm (length) x 18mm (diameter). This inductive proximity sensor is designed to be used in food and beverage industries. This sensor is certified UL, CSA, and CCC. The main advantage of the inductive detection offered by the sensors of the XS range is that there is no physical contact with the object to be detected.
Manuals and Documentation
| Catalog Number | XS218SAMAU20 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Switzerland |
| Made in USA | No |
| Application | Food and beverage |
| Connector | Male connector 1/2"20 UNF, 3 pins |
| Enclosure | Stainless steel 316 L |
| Indicator | Output state 1 LED yellow) |
| Material | Stainless steel |
| Mounting | Flush |
| Sensing Range | > 0.31...0.59 in (> 8...15 mm) |
| Sensor | 72 MM,INDUCTIVE PROXIMITY SENSOR |
| Special Features | STAINLESS STEEL |
| Standard | IP67 conforming to IEC 60529;IP69K conforming to DIN 40050;CE |
| Supply Voltage | 24...240 V AC 50/60 Hz;24...240 V DC |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=867754&lang=en-us |
| UPC | 785901876731 |
| GTIN | 03389119113373 |
| Item Type | Inductive proximity sensor;Cylindrical M18 |
| Operating Temperature | -25-85 A Degrees C |
