Hubbell Wiring Device - Kellems

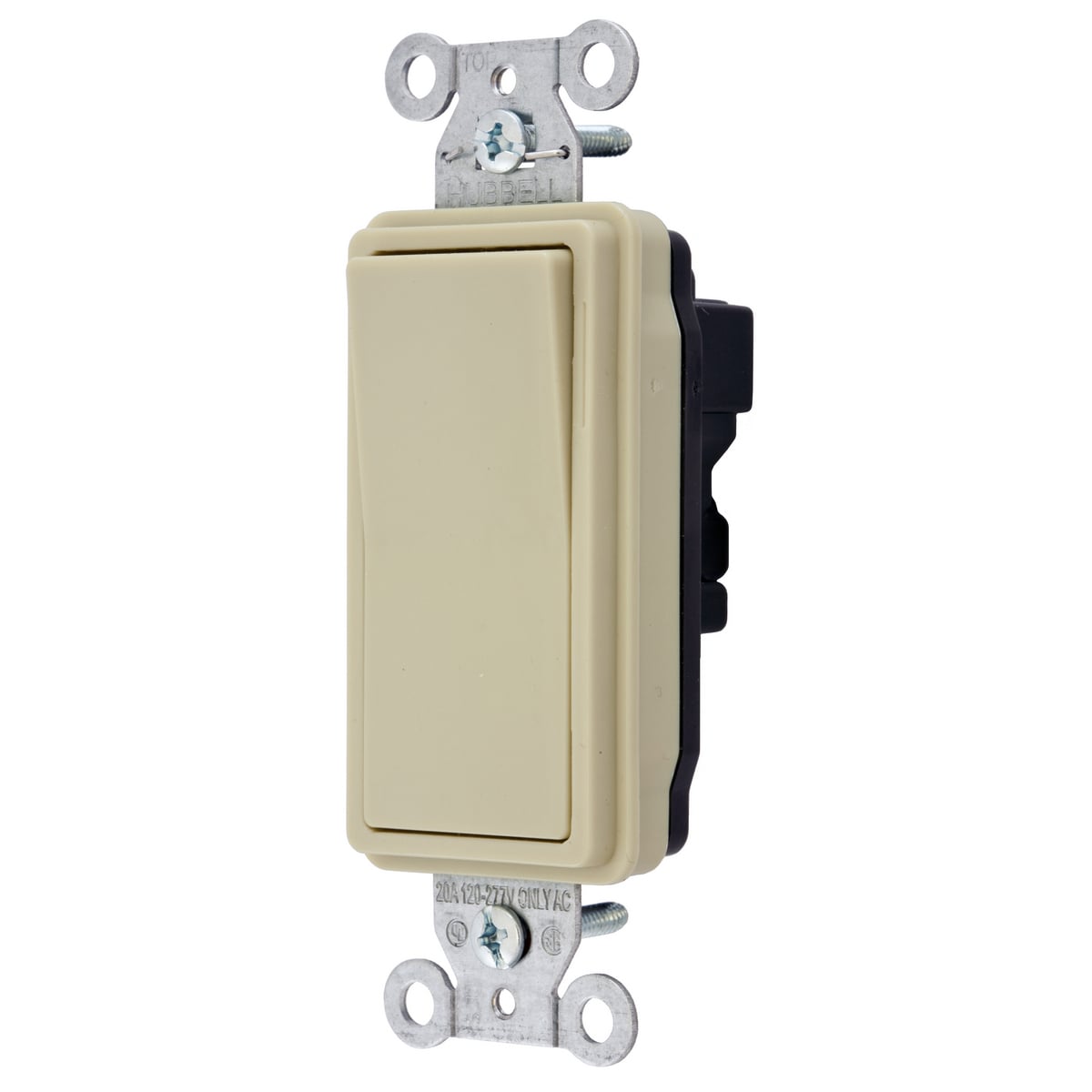

SNAP2121INA General Purpose Heavy Duty Industrial Grade Standard Decorator Switch, 120 to 277 V AC, 20 A, 5540 W Power Rating, 2 Position Contact

MFR:
Hubbell Wiring Device-Kellems
MFR #:
SNAP2121INA
UPC:
783585189734
Item #:
276091

Availability

Location Available Qty
Available Available to Order
$39.11 each

SNAPConnect Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnects modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnects modular design enables simple device change-out by maintenance personnel.

Manuals and Documentation
Catalog Number SNAP2121INA
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin United States
Made in USA Yes
Action Positive Snap
Actuator Rocker
Amperage Rating 20
Application SNAPConnect Heavy Duty
Color Ivory
Connection Connectorized
Contact Configuration 2 Position
Contact Rating Per UL 20
Material Thermoplastic
Mounting Screw
Number of Poles 1
Operating Cycles 50,000 Cycles
Special Features SNAP Connect, Self-grounding
Standard UL Listed
UPC 783585189734
GTIN 00783585189734
Item Type Rocker/Decorator
Size 4.28 in x 1.44 in x 1.54 in
Environmental Conditions Indoor Dry unless protected by additional means
Operating Temperature Maximum continuous 75 Degrees C and minimum -40 Degrees C without Impact
Voltage Rating 120-277
Wattage 5540 W
