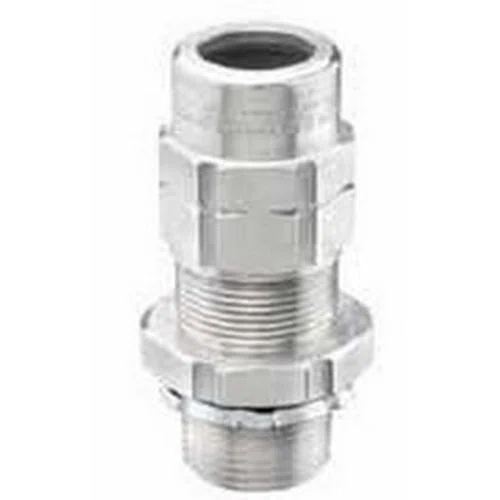

TMC2-100137A TMC2 Cable Gland Connector, 1 in Trade, 1.02 to 1.37 in Cable Openings, Copper Free Aluminum
- MFR:
- Emerson Electric
- MFR #:
- TMC2-100137A
- UPC:
- 781381300773
- Item #:
- 27607
TMC2-100137A TMC2 Cable Gland Connector, 1 in Trade, 1.02 to 1.37 in Cable Openings, Copper Free Aluminum
- MFR #:
- TMC2-100137A
- UPC:
- 781381300773
- Item #:
- 27607
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$230.27
each
Appleton® TMC2 Connectors are designed for use with MC/MC-HL, corrugated interlocked aluminum/steel armor or continuously welded armor (TECK or CLx) cables. They are used to provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor.
Manuals and Documentation
Features
- Simplified two piece design
- Integral 'O' ring face seal providing - 4X and IP66
- Independent sealing and armor clamping
- Removable cable armor end stop accommodates larger insulated conductors
- Superior pull-out prevention
- Compact slim profile
- Reduced installation time
- Widest cable acceptance range
- Re-usable design
- Additional integral deluge proof seal for protection in extreme offshore and onshore environments
- Aluminum connectors 1/2 in, 3/4 in and 1 in supplied with zinc plated steel locknut
| Manufacturer Part Number | TMC2-100137A |
| Brand | Appleton® |
| Manufacturer | Emerson Electric |
| UPC | 781381300773 |
| Country Of Origin | IN |
| Cable Type | JMC/MC/Teck |
| Dimensions | 2.05 in Dia Across Flat x 2.21 in Dia Across Corner x 3.32 in L |
| Material | Copper Free Aluminum |
| Series | TMC2 |
| Temperature Rating | -60 to 110 deg C |
| Angle | 360 deg |
| Alternative Part Number | 11331329 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | 5 Years |
| Standards Approvals | CSA 249506, C22.2 File No. 174 Certified | NEC/CEC Class I, Div 2, Groups A, B, C, D, Class I, Zones 1 and 2, AExe II AEx tA IIC, Class I, Zones 1 and 2, Exe II Ex tA IIC, Class II, Div 1 and 2, Groups E, F, G, Class III, Div 1 and 2 | UL 514B/2225 |
| Application | For jacketed metal clad, MC/MC-HL, corrugated interlocked aluminum/steel armor and continuously welded armor cable |
| Cable Openings | 1.02 to 1.37 in |
| Connection Type | NPT |
| Trade Size | 1 in |
