Appleton

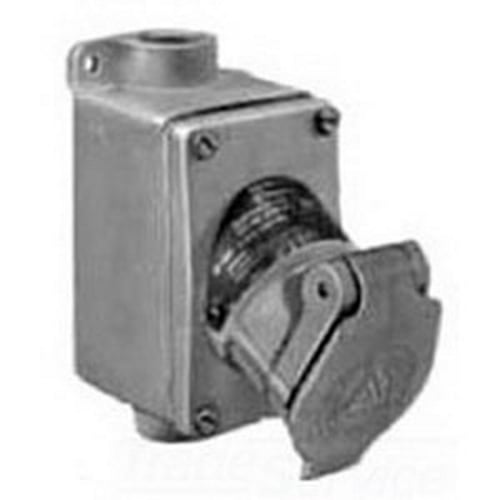

Explosionproof Receptacle Assembly, 1-Gang Dust-Ignitionproof Feed Through, 125 VAC, 20 A, 1 hp, 3 Pole, 2 Wires, NEMA 3/3R NEMA, Malleable Iron, 6.5 in H x 2.75 in W x 5.64 in D Dimensions

MFR:
Appleton Electric
MFR #:
EFSCB175-2023M
UPC:
781381397339
Item #:
27578

Availability

Location Available Qty
Available Available to Order
$1,661.66 each

U-Line 1-Gang Receptacle With Mounting Box, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 125 VAC, Material: Malleable Iron Receptacle And Mounting Box, Nema Rating: NEMA 3, 3R, Mounting: Surface

Manuals and Documentation
Catalog Number EFSCB175-2023M
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application For CPH And ECP Mating Plugs
Material Malleable Iron Receptacle And Mounting Box
Mounting Surface
NEMA Rating 3, 3R
Number of Poles 3
Number of Wires 2
Special Features Explosionproof, dust-ignitionproof; Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; These models have separate factory sealed chamber - suitable for Class I, Group B as well as Class I, Groups C and D, Class II, Groups F, G and Class III (No external seals required); Spring cover; Glass-filled reinforced polyester insulating blocks
Standard Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Groups F, G; Class III; UL Listed: E10784, E81751; UL Standard: 1203, 1010, 894; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 42, C22 No.159; CSA Certified: 038644
UPC 781381397339
GTIN 00781381397339
Item Type 1-Gang Receptacle With Mounting Box
Voltage Rating 125
