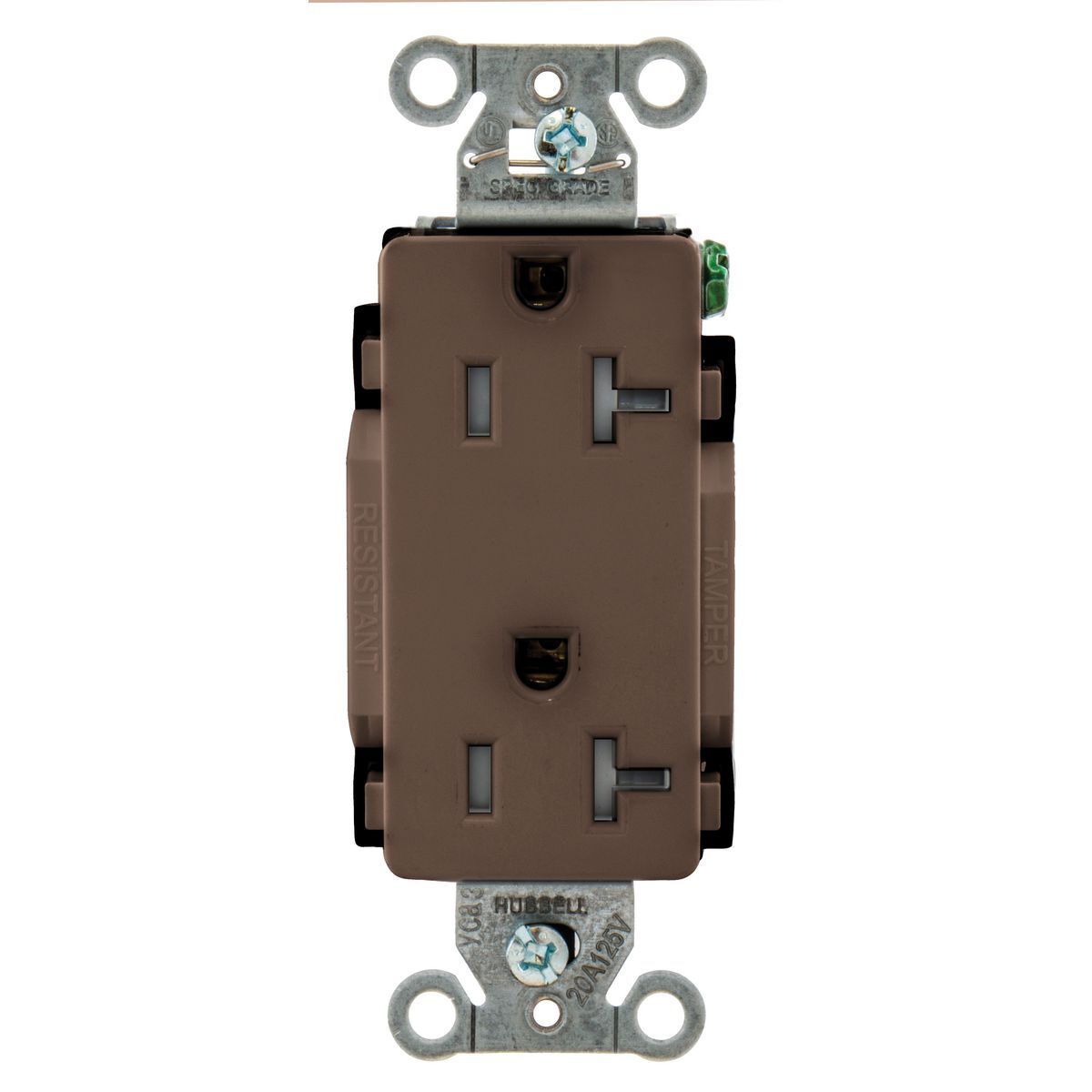

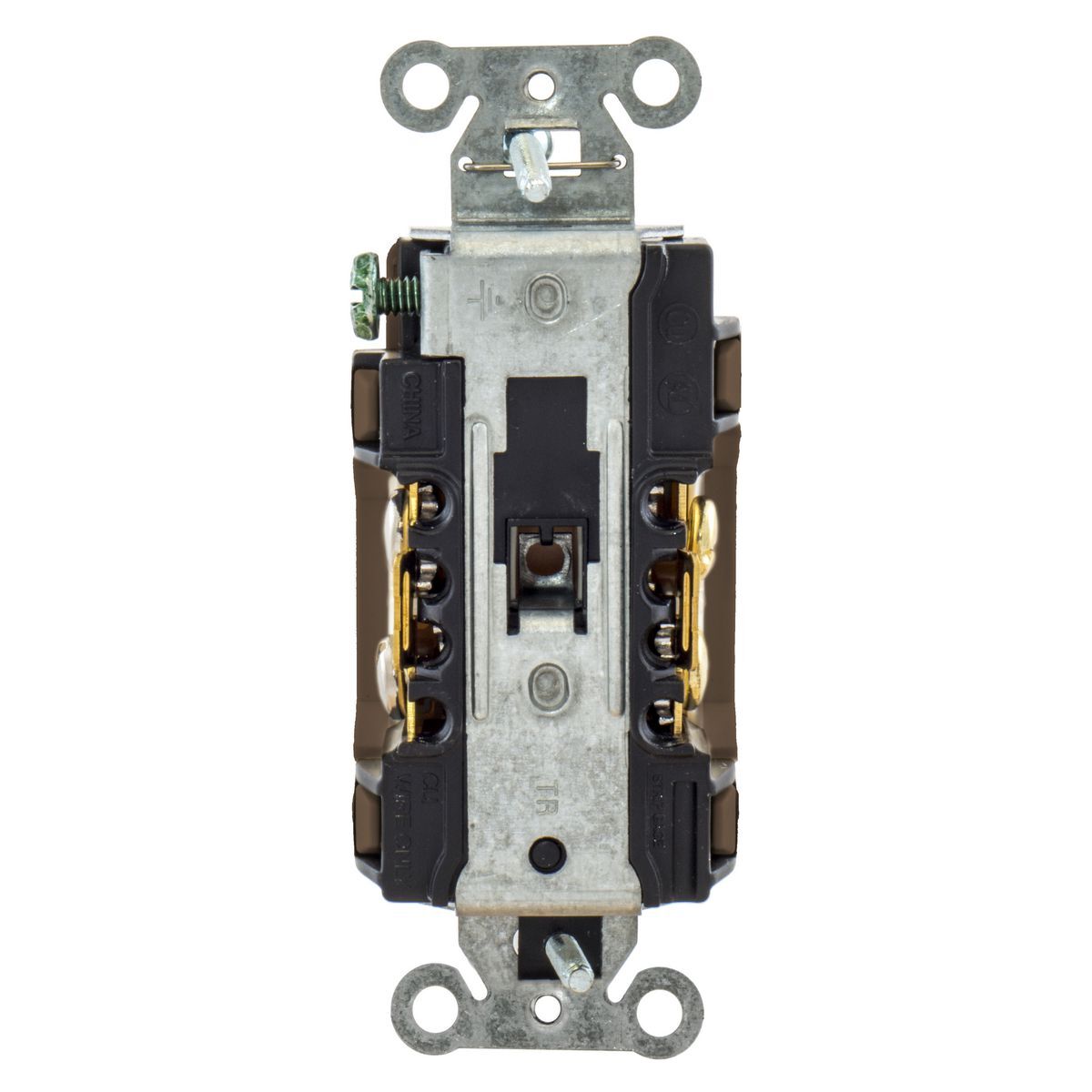

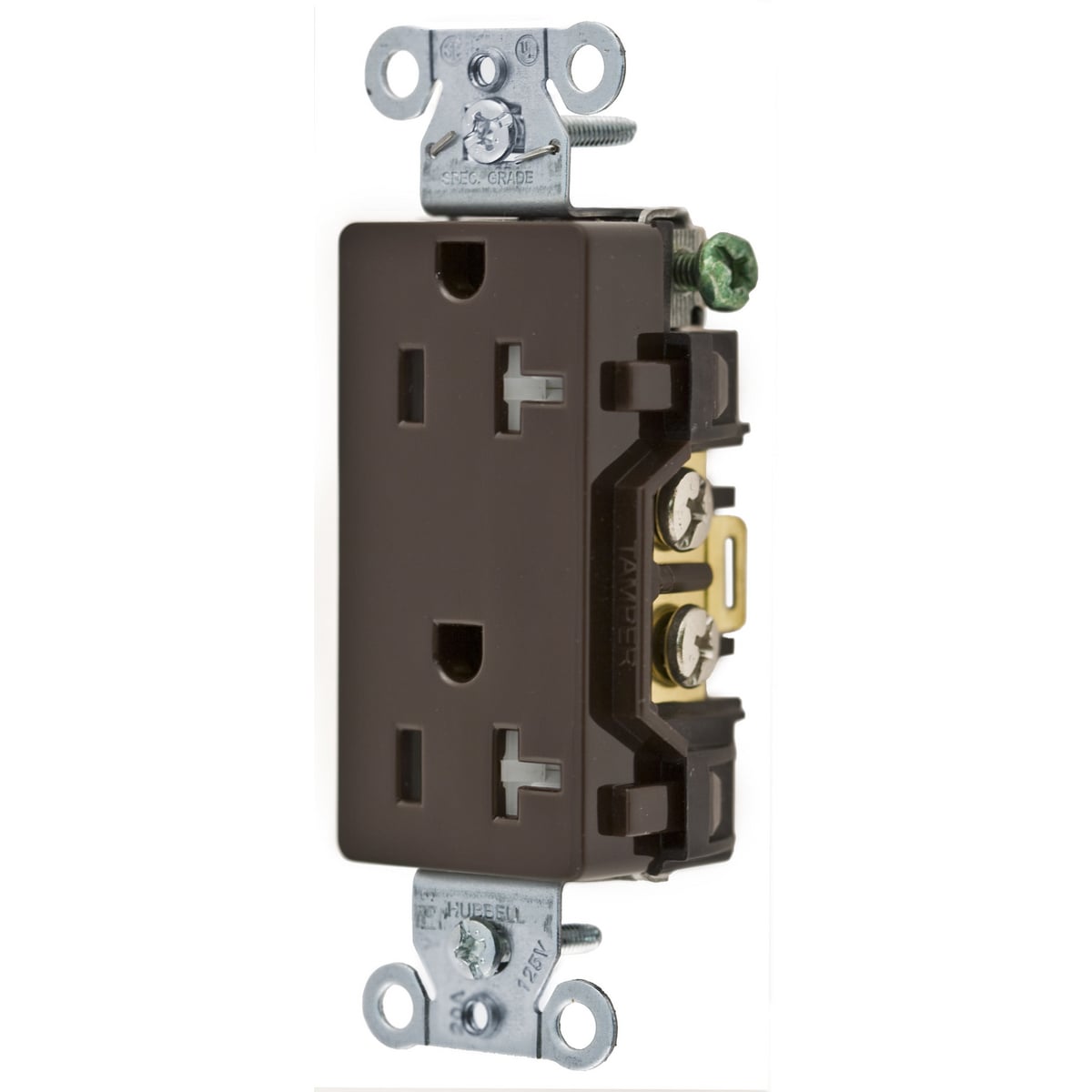

DR20TR 1-Phase Decorator Duplex Self-Grounding Standard Tamper-Resistant Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- DR20TR
- UPC:
- 783585144399
- Item #:
- 275777
DR20TR 1-Phase Decorator Duplex Self-Grounding Standard Tamper-Resistant Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
- MFR #:
- DR20TR
- UPC:
- 783585144399
- Item #:
- 275777
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Manuals and Documentation
| Catalog Number | DR20TR |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Commercial Specification Grade |
| Color | Brown |
| Connection | Back and Side Wired |
| Material | Nylon |
| Mounting | Screw |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Phase | 1 |
| Special Features | Tamper Resistant |
| Standard | Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| UPC | 783585144399 |
| GTIN | 00783585144399 |
| Item Type | Tamper-Resistant |
| Size | 3.28 in x 1.14 in x 1.29 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 125 |
| Wattage | 2,500 W |
| Wire Size | #12 AWG to #10 AWG |
| Cross Reference Products | Bryant DRS20TR|EatonWD TR6352B|PassSeymor TR26362 |
