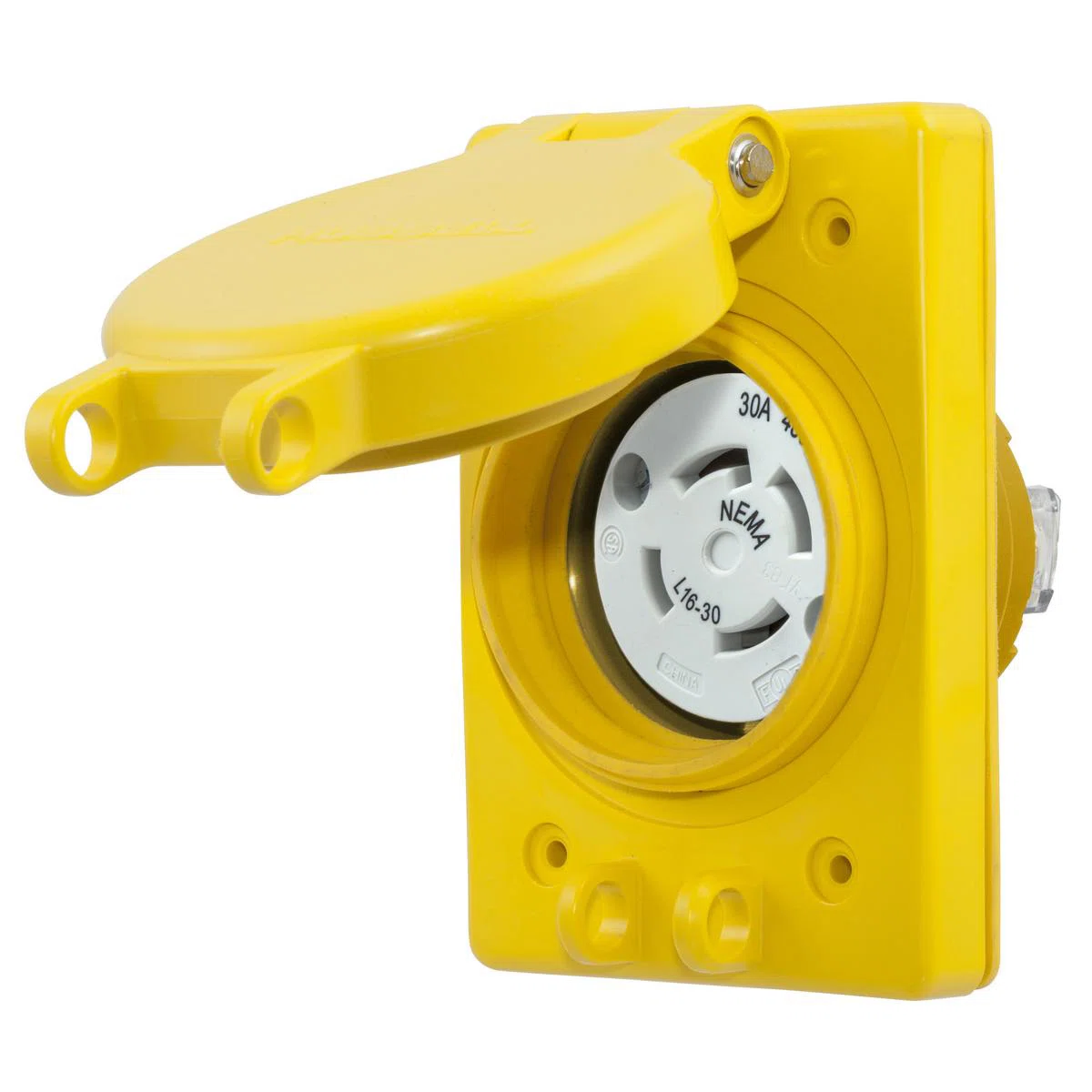

HBL69W76 3-Phase Grounding Standard Single Watertight Screw Mount Locking Receptacle With Lift Cover, 480 V AC, 30 A, 3 Poles, 4 Wires, Yellow
- MFR:
- Hubbell
- MFR #:
- HBL69W76
- UPC:
- 783585433295
- Item #:
- 274743
HBL69W76 3-Phase Grounding Standard Single Watertight Screw Mount Locking Receptacle With Lift Cover, 480 V AC, 30 A, 3 Poles, 4 Wires, Yellow
- MFR #:
- HBL69W76
- UPC:
- 783585433295
- Item #:
- 274743
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$237.76
each
Hubbell watertight receptacles with lift covers provide an impact-resistant UL type 4X seal combined with corrosion-resistant metallic components. These universal covers can house any NEMA listed straight blade receptacles as well as any NEMA listed Twist-Lock® receptacles. The watertight receptacles can either be mounted to FD/FS boxes or panel mounted to a flat surface.
Manuals and Documentation
Features
- Thermoplastic elastomer seal
- Impact resistant PBT lid, cover plate, and receptacle body
- Stainless steel hardware and corrosion-resistant connection points
| Manufacturer Part Number | HBL69W76 |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| UPC | 783585433295 |
| EAN | 0783585433295 |
| Country Of Origin | US |
| Amperage Rating | 30 A |
| Color | Yellow |
| Dimensions | 4.56 x 3.1 x 2.92 in |
| Enclosure | NEMA 4/4X/6/6P/12/IP65/IP66/IP67 |
| Material | Elastomer/Composite |
| Temperature Rating | -40 to 60 deg C |
| Type | 3-Phase Grounding Standard Single Watertight Screw Mount |
| Voltage Rating | 480 V AC |
| Alternative Part Number | 12580968 | 13490903 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | CSA Certified | RoHS Compliant | ANSI Specified | UL 498 | CSA C22.2 No. 42 | NEMA WD1/WD6 |
| Application | Commercial, Wet and Wash Applications |
| Grade | Industrial |
| Nema Rating | L16-30R |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Terminal Type | Screw |
