Discontinued
Schneider Electric

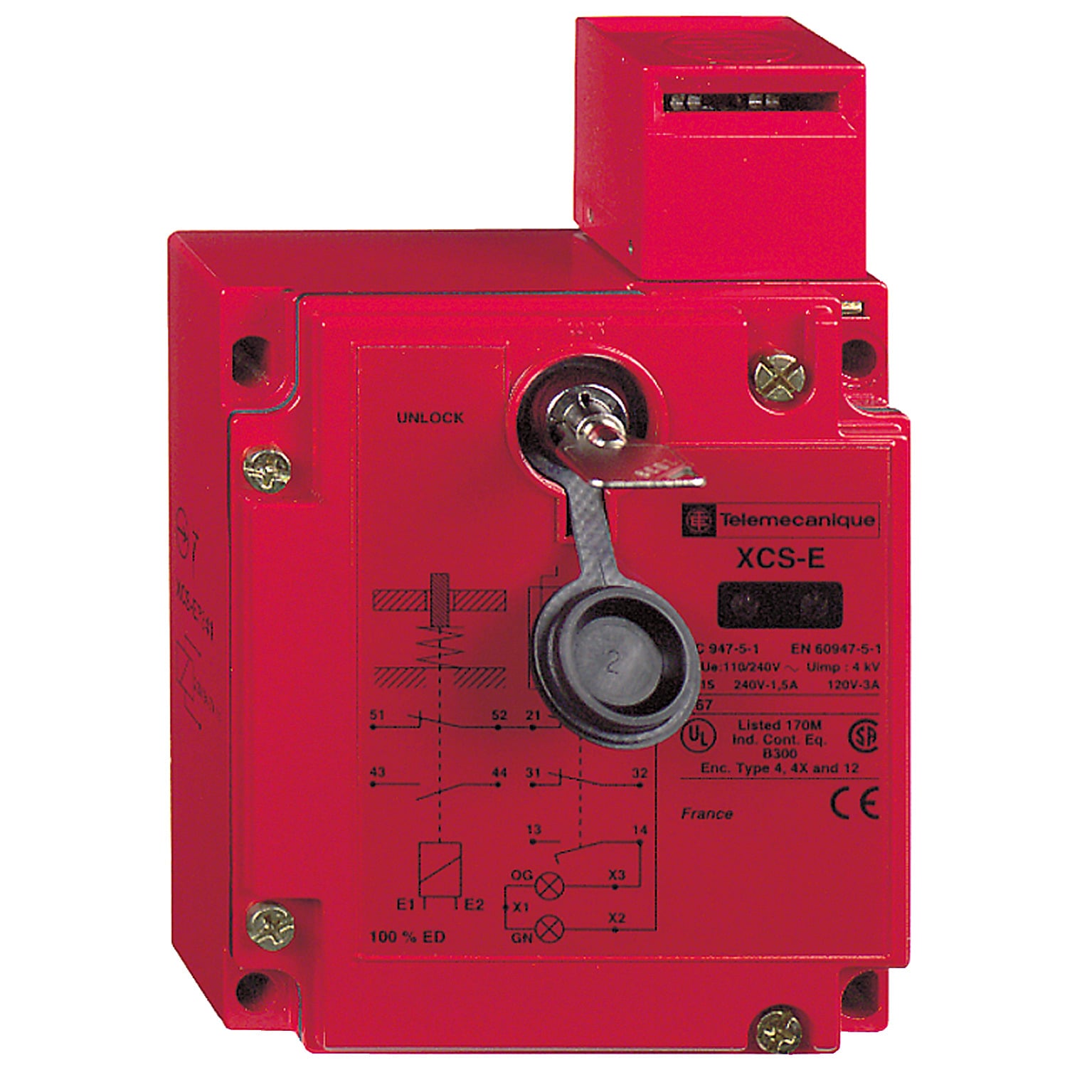

XCSE5343 Preventa Rectangular Turret Head Safety Interlock Switch, 110/240 VAC/VDC, 6 A, 50/60 Hz, 10 VA Power Rating, 3 Poles

MFR:
Schneider Electric
MFR #:
XCSE5343
Item #:
268897

Availability

Location Available Qty
Available Available to Order

metal safety switch XCSE - 1NC+2NO- slow break-2entries tapped 1/2" NPT-220/240V

Manuals and Documentation
Catalog Number XCSE5343
Manufacturer Schneider Electric
Brand Schneider Electric
Country of Origin France
Made in USA No
Action SLOW-BREAK, BREAK BEFORE MAKE
Amperage Rating 6
Application KEY OPERATED TURRET HEAD
Connection TERMINAL 1 X 0.5...2 X 1.5 MMA² WITH OR WITHOUT CABLE END
Contact Configuration 1 NC + 1 NO SLOW-BREAK, SIMULTANEOUS),1 NC + 2 NO
Operating Cycles 10 CYC/MN FOR MAXIMUM DURABILITY
Special Features GUARD OPEN/GUARD CLOSED AND LOCKED 2 LEDS GREEN OR ORANGE),LOCKING ON DE-ENERGISATION AND UNLOCKING ON ENERGISATION OF SOLENOID,OVERVOLTAGE PROTECTION SIGNALLING CIRCUIT
Standard 10 GN 11 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CSA-UL,IP67 EN/IEC 60529 AND EN/IEC 60947-5-1,UL 508-EN/IEC 60204-1-EN 1088/ISO 14119-EN/ISO 12100-CSA C22.2 NO 14-EN/IEC 60947-5-1,CLASS I EN/IEC 61140
GTIN 03389110719888
Item Type KEY OPERATED TURRET HEAD,SAFETY SWITCH
Size 146-146 MM,44 MM,98 MM
Operating Temperature -25-40 A Degrees C
Voltage Rating 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1-3 A 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1,220/240 V - 20...10
