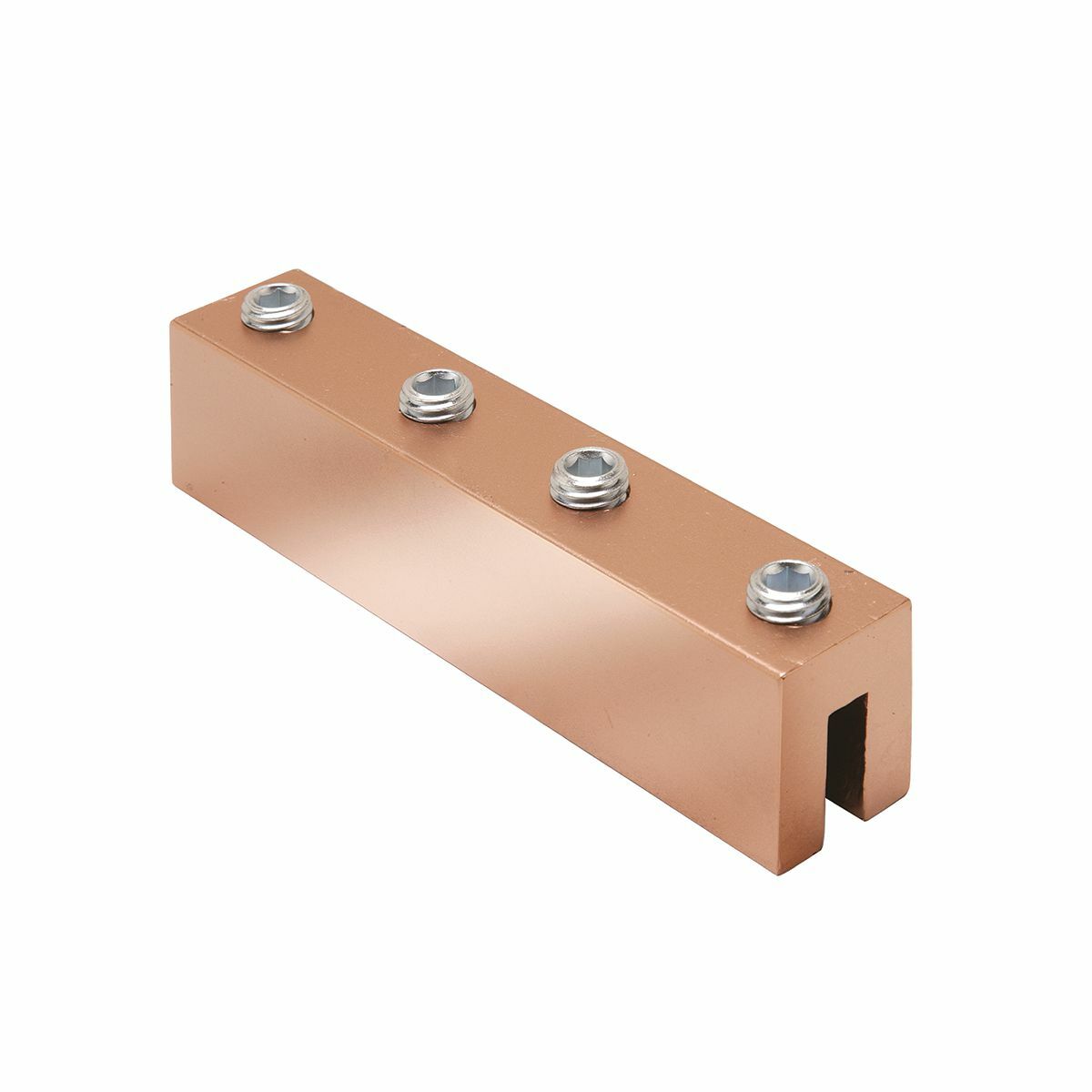

GROUNDLINK? Connector for Structural Steel Angled (Type YGIBS) or Parallel Beam (Type YGIBW); Accommodates: #2 - 4/0 AWG; 3" Length, RUN=0.675 Max.
MFR: Burndy, a Hubbell affiliate
MFR #: YGIBW286752N
UPC: 781810039434
Item #: 268300
GROUNDLINK? Connector for Structural Steel Angled (Type YGIBS) or Parallel Beam (Type YGIBW); Accommodates: #2 - 4/0 AWG; 3" Length, RUN=0.675 Max.
MFR #: YGIBW286752N
UPC: 781810039434
Item #: 268300
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$367.14
each
Manuals and Documentation
- Catalog Number
- YGIBW286752N
- Manufacturer
- Burndy, a Hubbell affiliate
- Brand
- BURNDY
- Sub Brand
- HYGROUND, GROUNDLINK
- Country of Origin
- United States
- Made in USA
- Yes
- Application
- For Direct Burial Cables
- Material
- Copper
- Special Features
- Features: An Irreversible Compression Ground Connection Which Allows Attachment To A Structural Steel Standard (Angled) Or Wide Flange (Parallel) Beam, Installed With A Required 5-Piece Die Set, Catalog PIBEAMKIT Or UIBEAMKIT, Die Index 1105, GROUNDLINK Connectors Are Made Of High-Conductivity Wrought Copper And Come Pre-Filled With PENETROX E Compound And Strip Sealed, Order Terminal Mounting Hardware Separately, Mounting Hardware Order Separately: TMHG-42, I Beam Thickness Range: 0.563 - 0.625 IN, Suggested Compression Terminal: YGHA2C-2N, Terminal Pad Thickness: 0.26 - 0.3 IN, Length: 3 IN, Die Index: 1105 Element A, I Beam Style: Wide Flange Beam (Flange Parallel)
- Standard
- UL467;IEEE 837
- UPC
- 781810039434
- GTIN
- 00781810039434
- Item Type
- Taps
