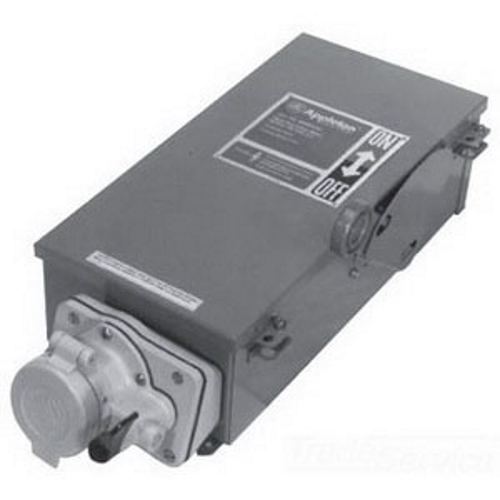

Weldg Receptacle 60A Nonfused
- MFR:
- Appleton Electric
- MFR #:
- WSRD63542
- UPC:
- 781381697538
- Item #:
- 26737
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$3,949.36
each
Non-Fused WSRD Series Interlocked Receptacle With Enclosure, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 6 - 2 AWG, Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50/60 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of
Manuals and Documentation
| Catalog Number | WSRD63542 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 60 |
| Application | For ACP6034BC Mating Plug |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle, Sheet Metal Enclosure |
| Mounting | Surface |
| NEMA Rating | 3R, 12 |
| Number of Poles | 4 |
| Number of Wires | 3 |
| Phase | 3 |
| Special Features | Without viewing window; Cutler hammer disconnect switch, cutler hammer auxiliary switch is 1 NO/1 NC or 2 NO/2 NC; With enclosed disconnect switch; For use where an interlocked disconnect switch is desired to control a Powertite receptacle and insertion or removal of plug; For use where an interlocked disconnect switch is desired to control a Powertite receptacle and insertion or removal of plug; Utilizes style 2 (shell and extra pole) grounding and 3-wire, 4-pole receptacle wiring; Class R fusing standard on WSRD fusible units; Short circuit withstand rated to 200000 RMS symmetrical Amps; Unit is equipped with defeatable door interlock which allows emergency access when switch is energized; Cover can be padlocked closed; Dead front design: receptacle is not energized until plug is fully inserted and switch is engaged; For welders, generators, compressors, infrared ovens, batch feeders, conveyors, truck terminals, marine docks |
| Standard | UL 98, UL 50E, UL 1682, UL 1686; UL Listed: E145917, E160652; CSA Standard: C22.2 No.4, C22.2 No. 182.1; CSA Certified: 025875 |
| UPC | 781381697538 |
| GTIN | 00781381697538 |
| Item Type | Non-Fused WSRD Series Interlocked Receptacle With Enclosure |
| Voltage Rating | 600 VAC At 50/60 HZ, 250 VDC |
| Wire Size | 6 - 2 AWG |
