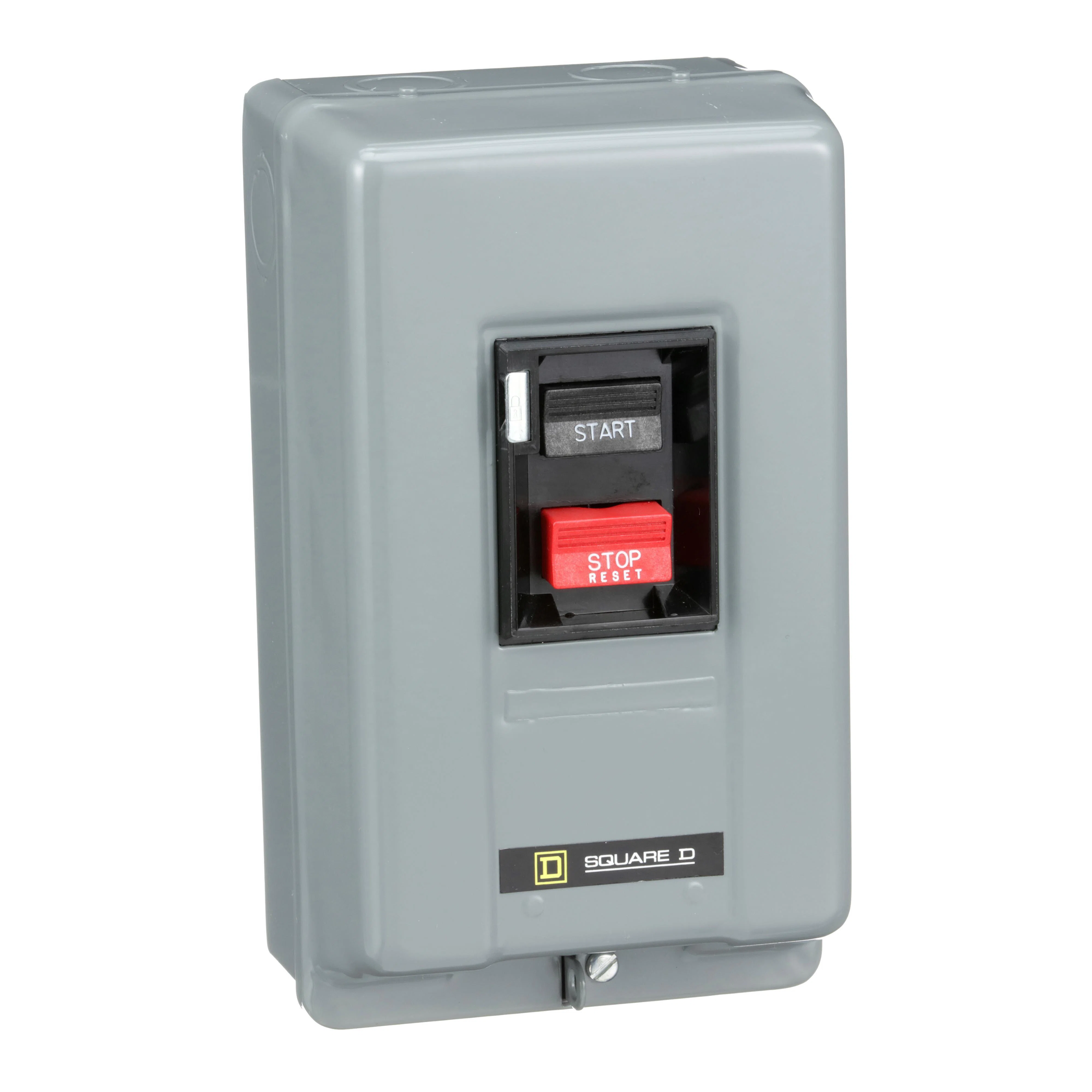

2510MCG1 Type M Integral Horsepower Non-Reversing Surface Mount Manual Starter, 2 Poles, NEMA 1 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 2510MCG1
- UPC:
- 785901792024
- Item #:
- 26728
2510MCG1 Type M Integral Horsepower Non-Reversing Surface Mount Manual Starter, 2 Poles, NEMA 1 Enclosure
- MFR #:
- 2510MCG1
- UPC:
- 785901792024
- Item #:
- 26728
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-1 two pole starter is rated for 2 HP at 115 VAC and 3 HP at 230 VAC single phase. A melting alloy thermal unit is used with this manual starter to sense over current conditions. This thermal unit is ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 1 general purpose surface mount enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 8.63 inches tall, 5.00 inches wide and 4.13 inches deep. 2510M integral horsepower starters are UL listed and CSA certified.
Manuals and Documentation
Features
- Inexpensive motor control where low voltage protection is NOT required
- Simple operation
| Manufacturer Part Number | 2510MCG1 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901792024 |
| EAN | 0785901792024 |
| Country Of Origin | MX |
| Amperage Rating | 27 A |
| Dimensions | 5 in W x 3.95 in D x 8.63 in H |
| Enclosure Type | NEMA 1 |
| Material | Sheet Steel |
| Series | 2510M |
| Type | Type M Integral Horsepower Non-Reversing Surface Mount |
| Voltage Rating | 600 V AC/250 V DC |
| Alternative Part Number | 8033858 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 months |
| Standards Approvals | RoHS Compliant | Buy American Act Compliant | UL Listed | CSA Certified | ECCN EAR99 | PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
| Application | General Purpose and Indoor Small Machine Tools, Pumps, Fans and Conveyors Applications |
| Connection Type | Pressure Wire Clamp |
| Control Type | Pushbutton |
| Motor Power | 3 hp |
| Number Of Poles | 2 |
| Overload Relay | Thermal Melting Alloy |
| Phase | 1 |
| Reset Type | Manual |
