Panduit

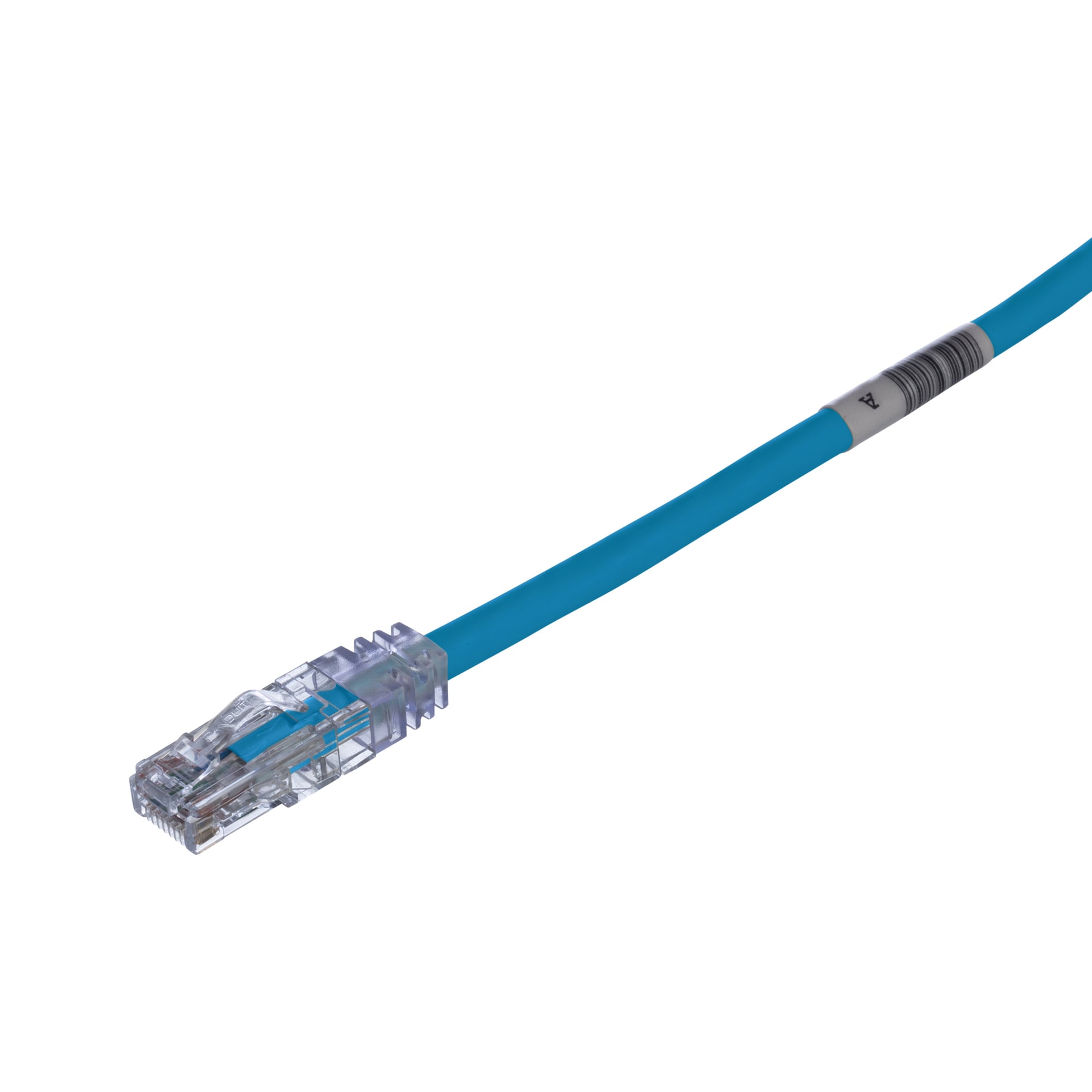

UTPSP5BUY PanNet TX6 Plus Class E Patch Cord, Cat 6, 24 AWG U/UTP Copper Conductor, Modular Plug Boot Connector, 5 ft L Cord, Blue

MFR:
Panduit
MFR #:
UTPSP5BUY
UPC:
074983170937
Item #:
26566

Availability

Location Available Qty
Available Available to Order
$21.20 each

The TX6 PLUS Cat 6 UTP Patch Cord is a 5-Foot, Blue cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Manuals and Documentation
Catalog Number UTPSP5BUY
Manufacturer Panduit
Brand Panduit
Country of Origin Multiple
Made in USA No
Application 1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) 2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM 3) Token ring 4/16 4) Digita
Color Blue
Conductor Material Copper
Jacket Material Polyvinyl Chloride
Plug Type Modular Plug
Standard Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E channel and component standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; R
UPC 074983170937
GTIN 00074983170937
Item Type Patch Cord
Length 5.00
Outside Diameter 0.23 IN
Temperature Rating 140 °F
Wire Size 24
