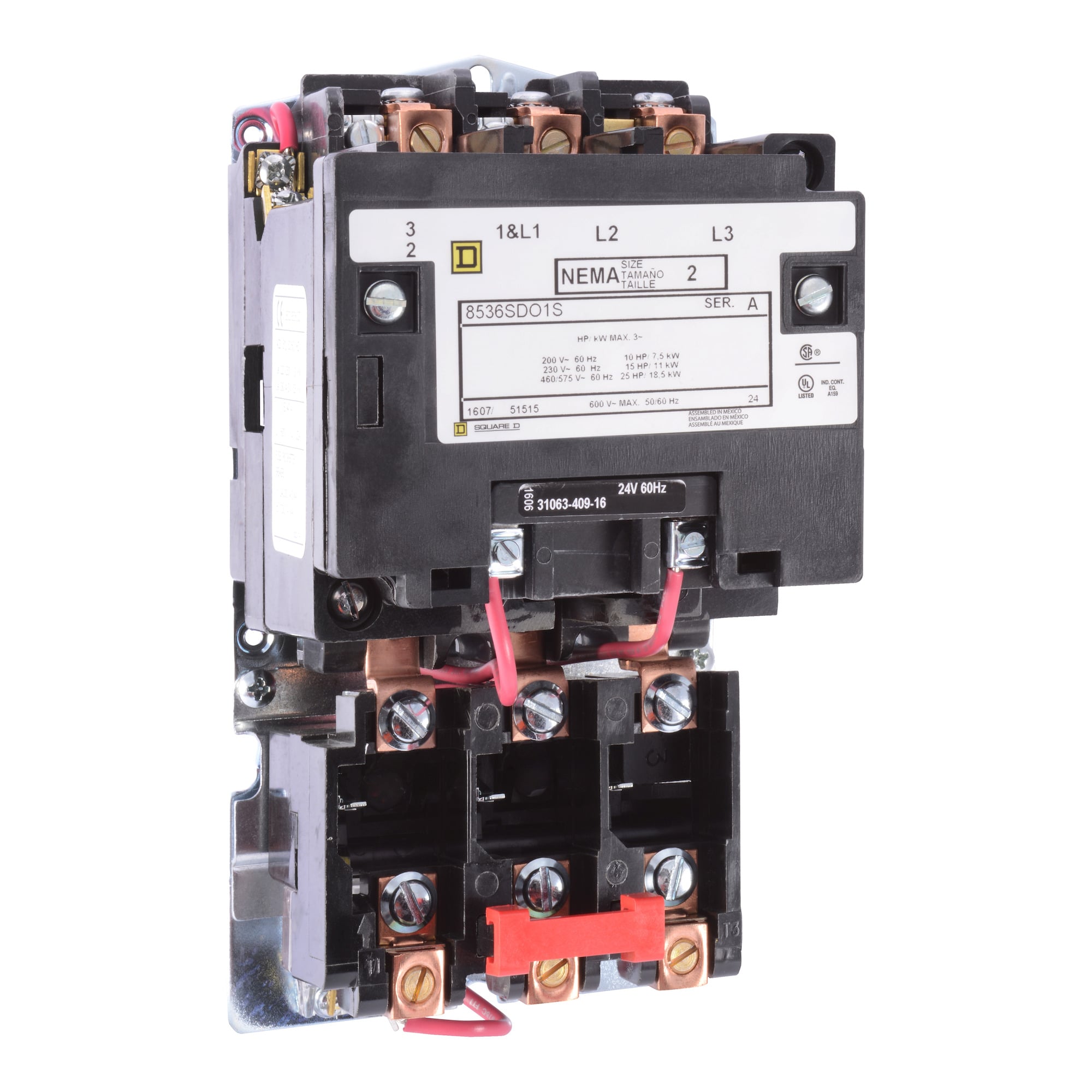

8536SDO8V03 8536 Magnetic Starter, 220 V AC at 50 Hz/240 V AC at 60 Hz V Coil, 2 Poles, Open Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 8536SDO8V03
- UPC:
- 785901019398
- Item #:
- 264546
8536SDO8V03 8536 Magnetic Starter, 220 V AC at 50 Hz/240 V AC at 60 Hz V Coil, 2 Poles, Open Enclosure
- MFR #:
- 8536SDO8V03
- UPC:
- 785901019398
- Item #:
- 264546
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This is a 2 pole non-reversing starter with extra capacity. This motor starter has single phase ratings of 5 HP at 115 VAC and 10 HP at 230 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 220/240 VAC 50/60 Hz operating coil wired for common control. This NEMA starter is an open device without an enclosure. This starter is 7.81 inches tall, 4.31 inches wide and 4.94 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Manuals and Documentation
| Catalog Number | 8536SDO8V03 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Phase | 1 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=519083&lang=en-us |
| UPC | 785901019398 |
| GTIN | 00785901019398 |
