Hubbell Wiring Device - Kellems

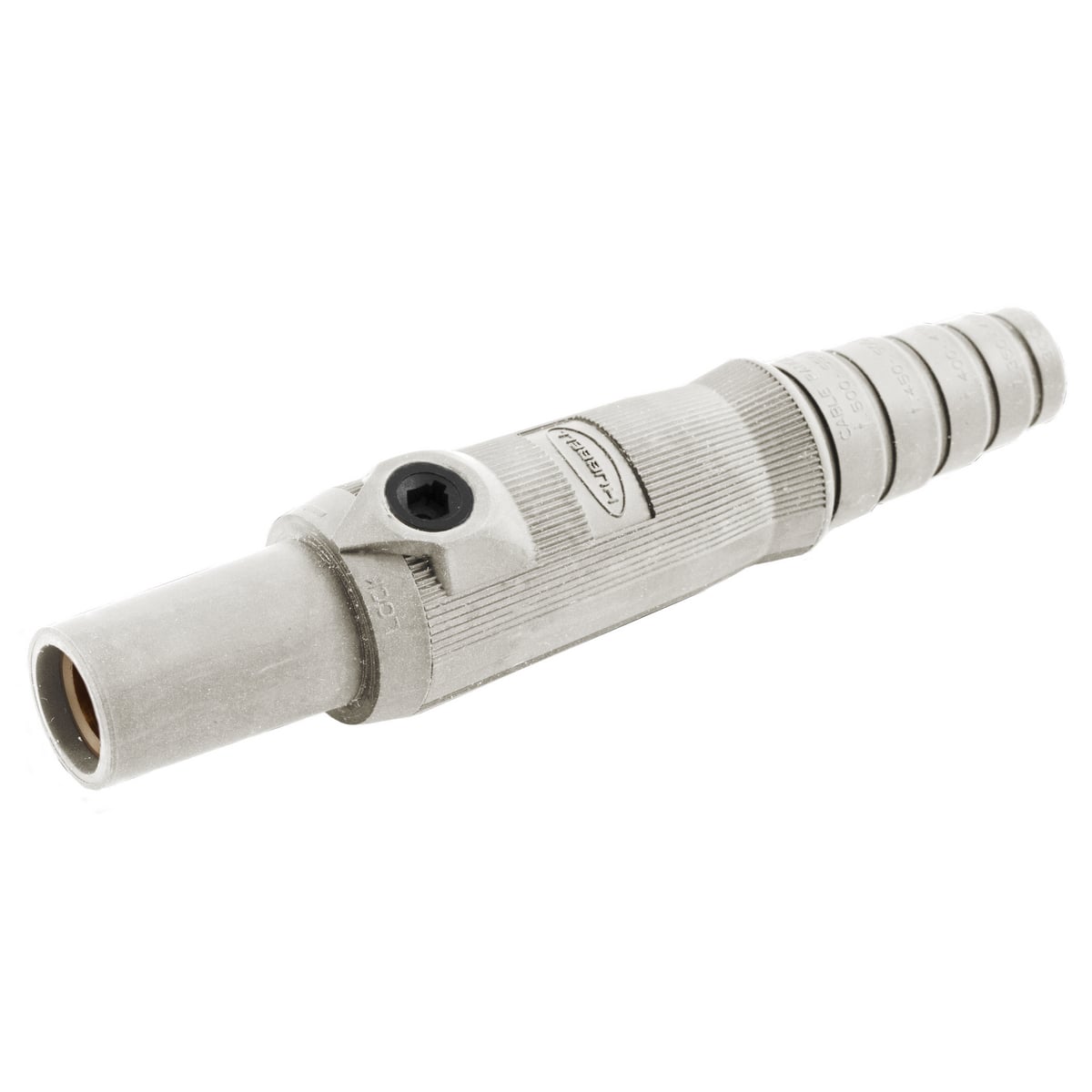

HBL15FW 15 Series 1-Pole Female Insulated Standard In-Line Plug With SC/PPC Cord, 600 V AC/250 V DC, 150 A, 8 to 2 AWG Wire, Setscrew Connection

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL15FW
UPC:
783585458380
Item #:
263604

Availability

Location Available Qty
Available Available to Order
$45.29 each

Hubbell Wiring DeviceKellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

Manuals and Documentation
Catalog Number HBL15FW
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 150
Application Temporary Electrical Power
Color White
Conductor Range #8 AWG to #2 AWG SC/PPC Wire
Connection Set Screw
Insulation Insulated Body
Material Brass and Non-Metallic
Mounting Cord
Number of Conductors 1 Conductor
Number of Poles 1
Special Features Standard Product
Standard National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
UPC 783585458380
GTIN 00783585458380
Item Type Plugs
Size Standard
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Temperature Rating Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact.
Voltage Rating 600 AC or 250 DC Max
