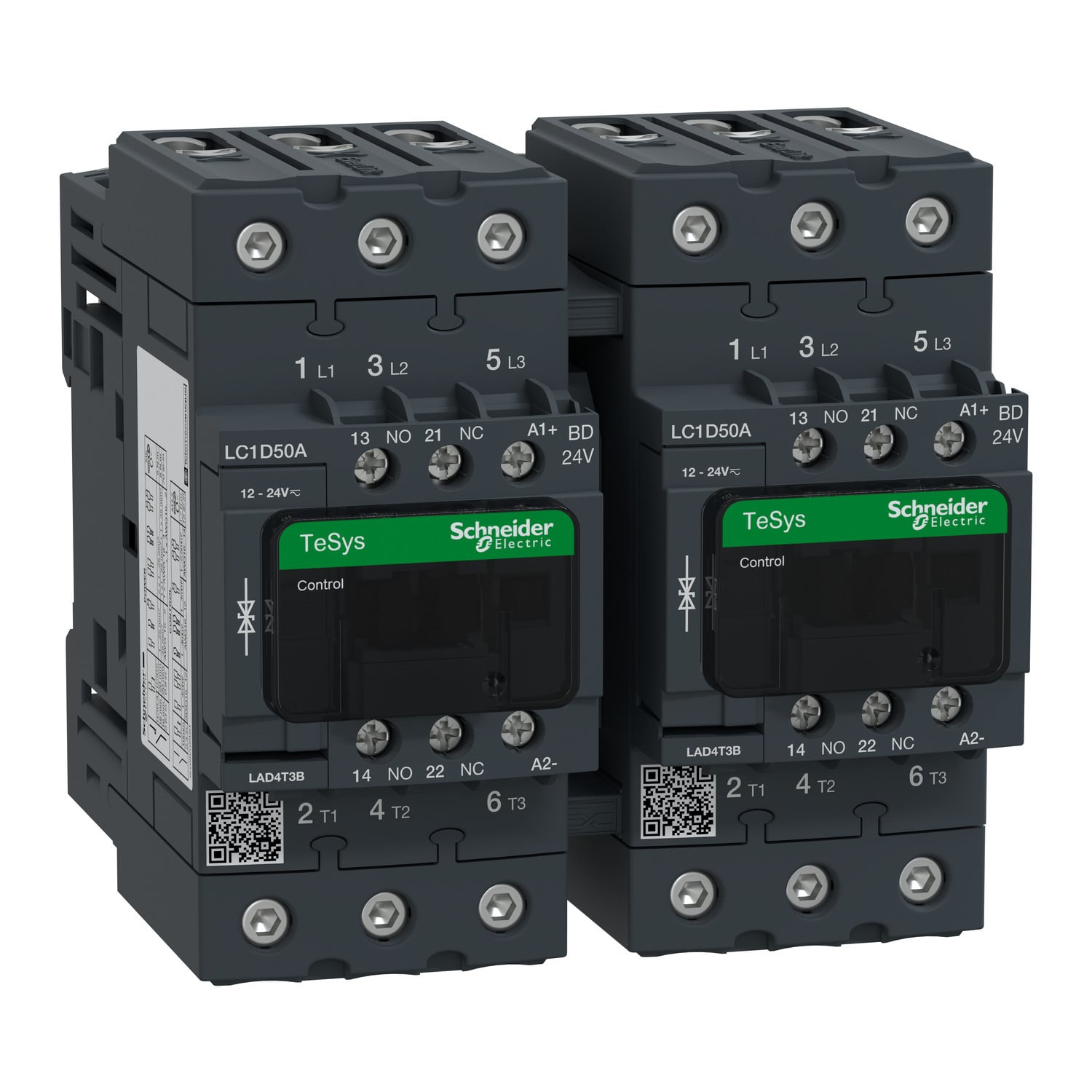

LC2D50ABD TeSys D LC2D Reversing IEC Contactor, 24 V DC V Coil, 50/80 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC2D50ABD
- Item #:
- 263131
LC2D50ABD TeSys D LC2D Reversing IEC Contactor, 24 V DC V Coil, 50/80 A, 3NO Contact, 3 Poles
- MFR #:
- LC2D50ABD
- Item #:
- 263131
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 50A/690V AC-3 (22kW@400V). Rated 50A AC-3 22kW@400V, it includes a 24V DC coil, 2NO+2NC aux contacts, a mechanical interlock. It provides 24V DC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), power connection by EverLink BTR screw connectors, control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (119mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 24V DC coil for easy integration to all control systems. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 1.6 million cycles at 50A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Power connections by EverLink BTR screw terminals providing constant tightening pressure.
Manuals and Documentation
| Catalog Number | LC2D50ABD |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Motor control;resistive load |
| Coil Voltage | 24 V DC |
| Contact Configuration | 1 NO + 1 NC |
| Standard | UL;CSA;RINA;GOST;CCC;DNV;LROS (Lloyds register of shipping);GL;BV;UKCA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=8695528&lang=en-us |
| GTIN | 03389118339859 |
| Item Type | Reversing contactor;LC2D |
