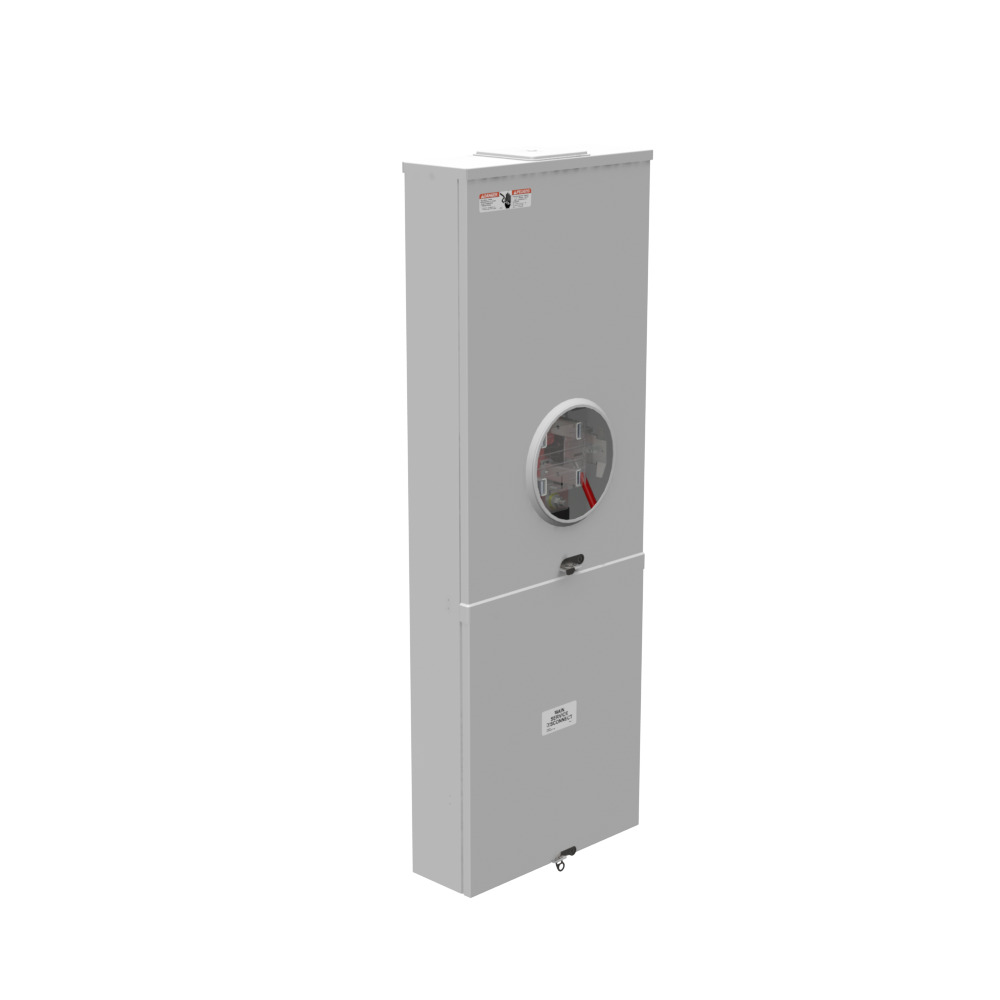

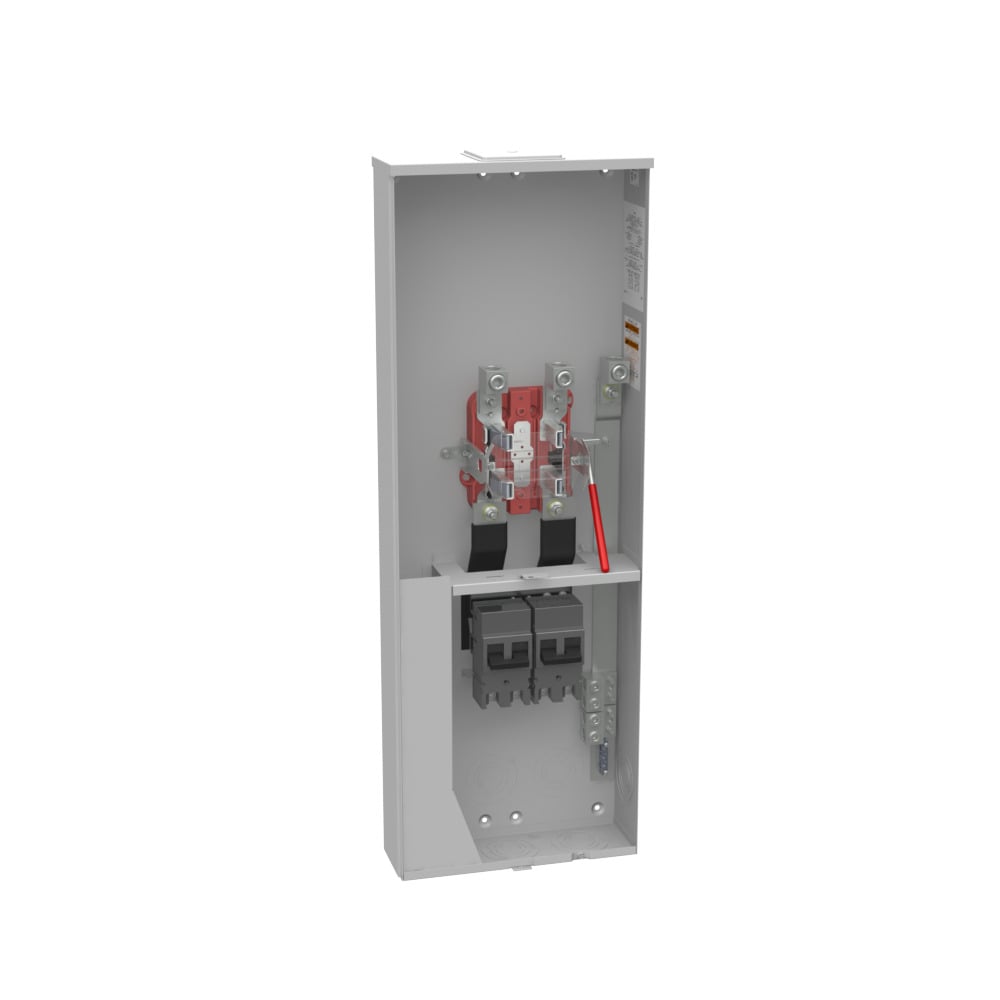

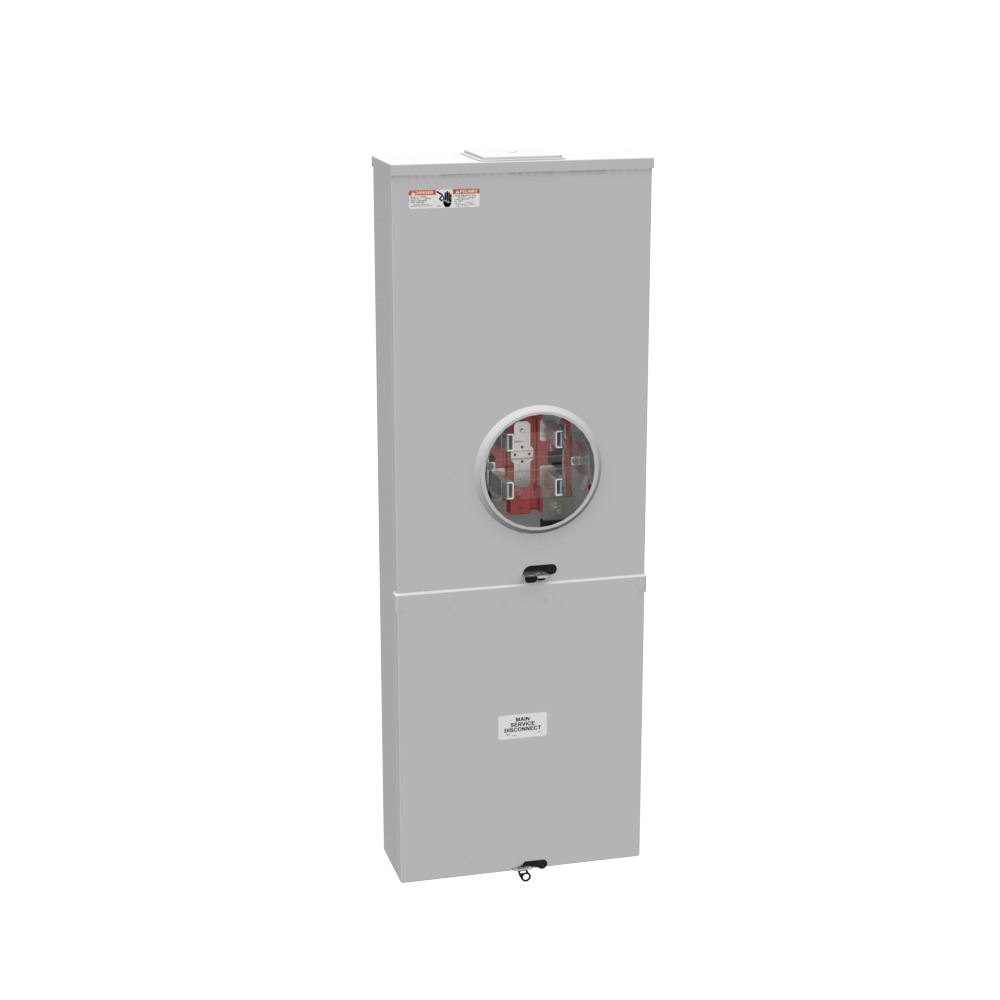

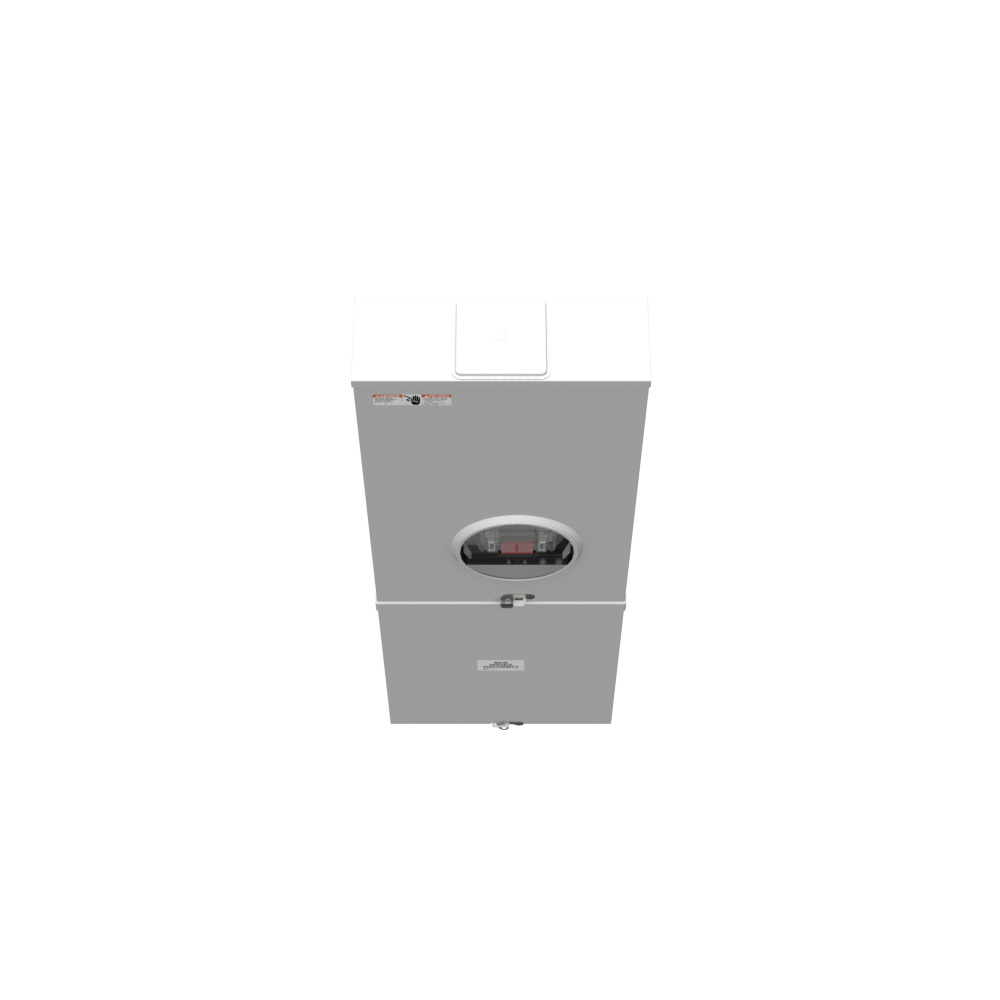

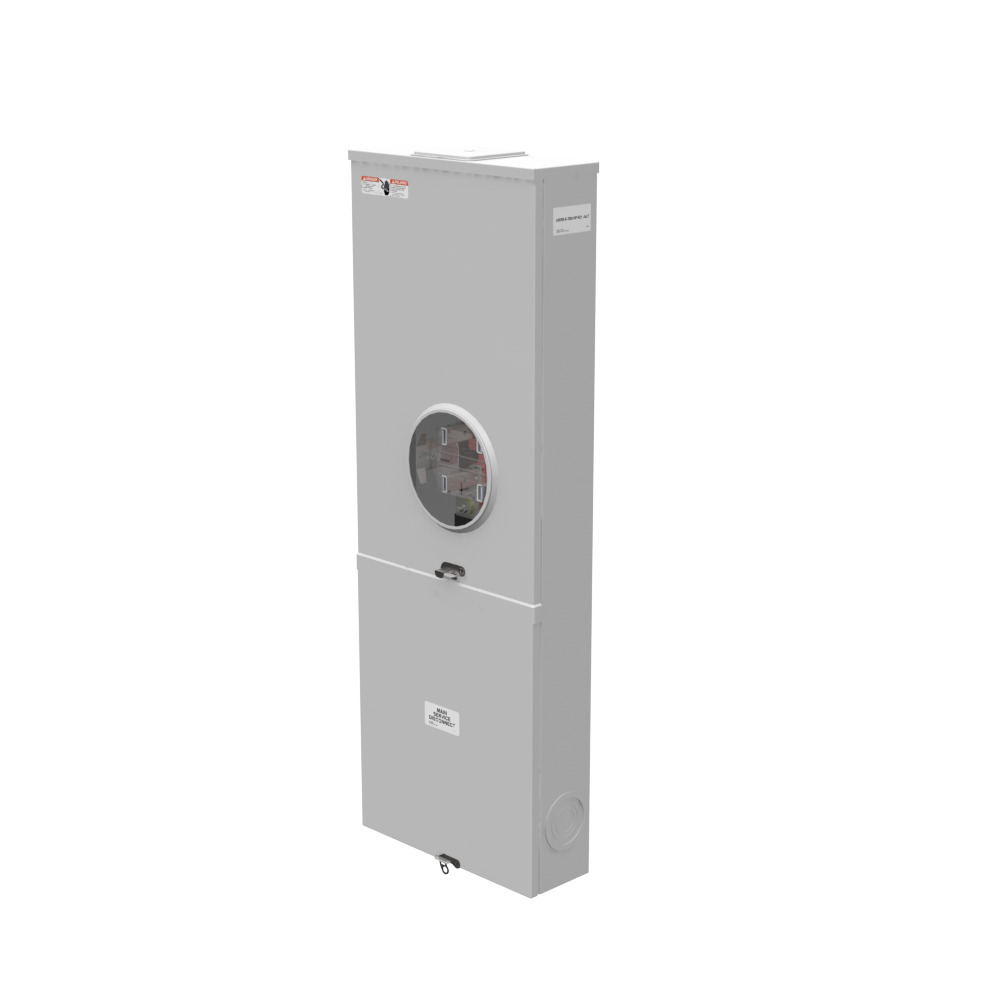

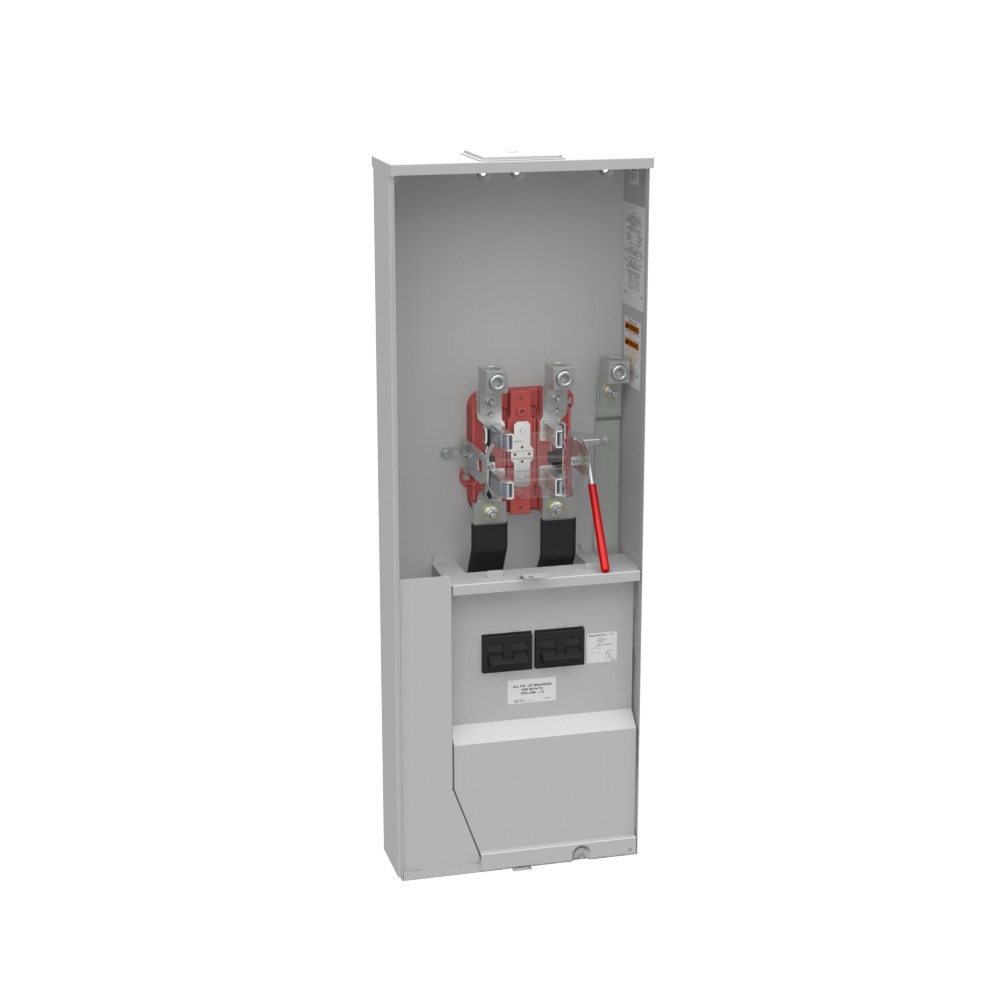

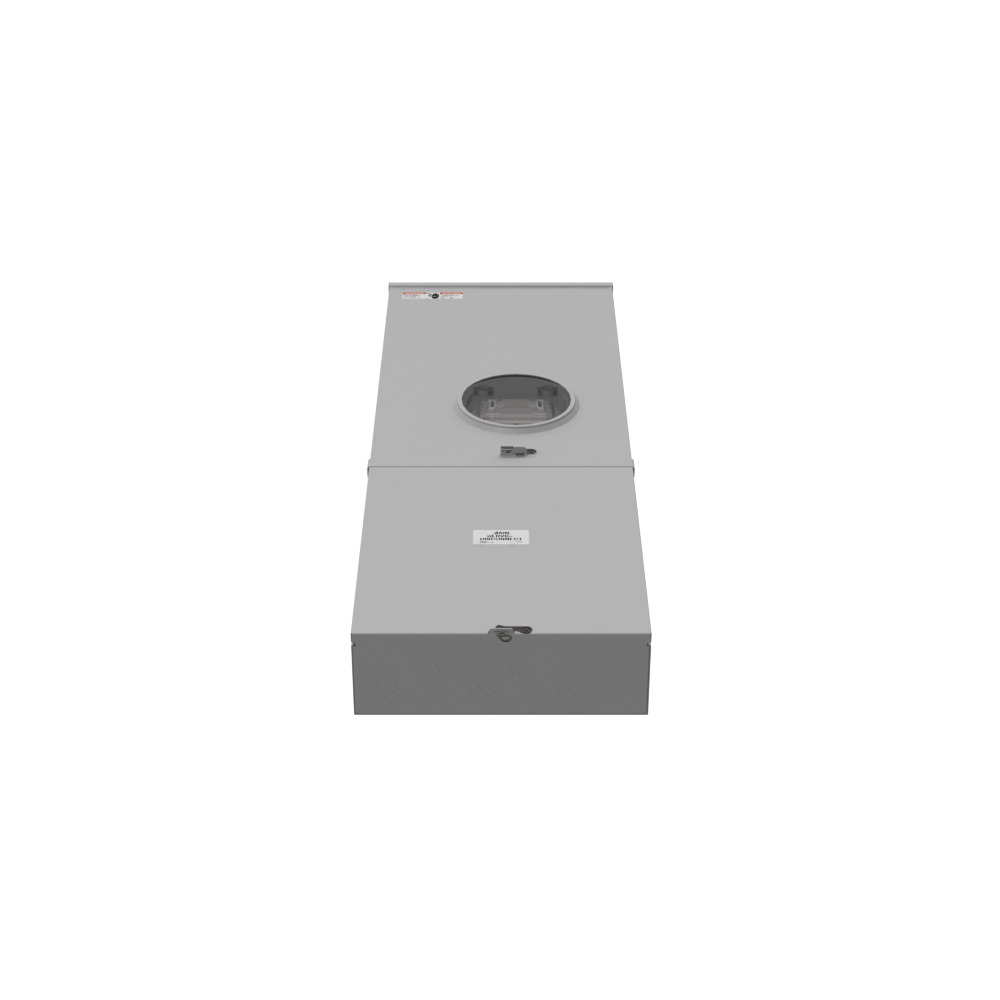

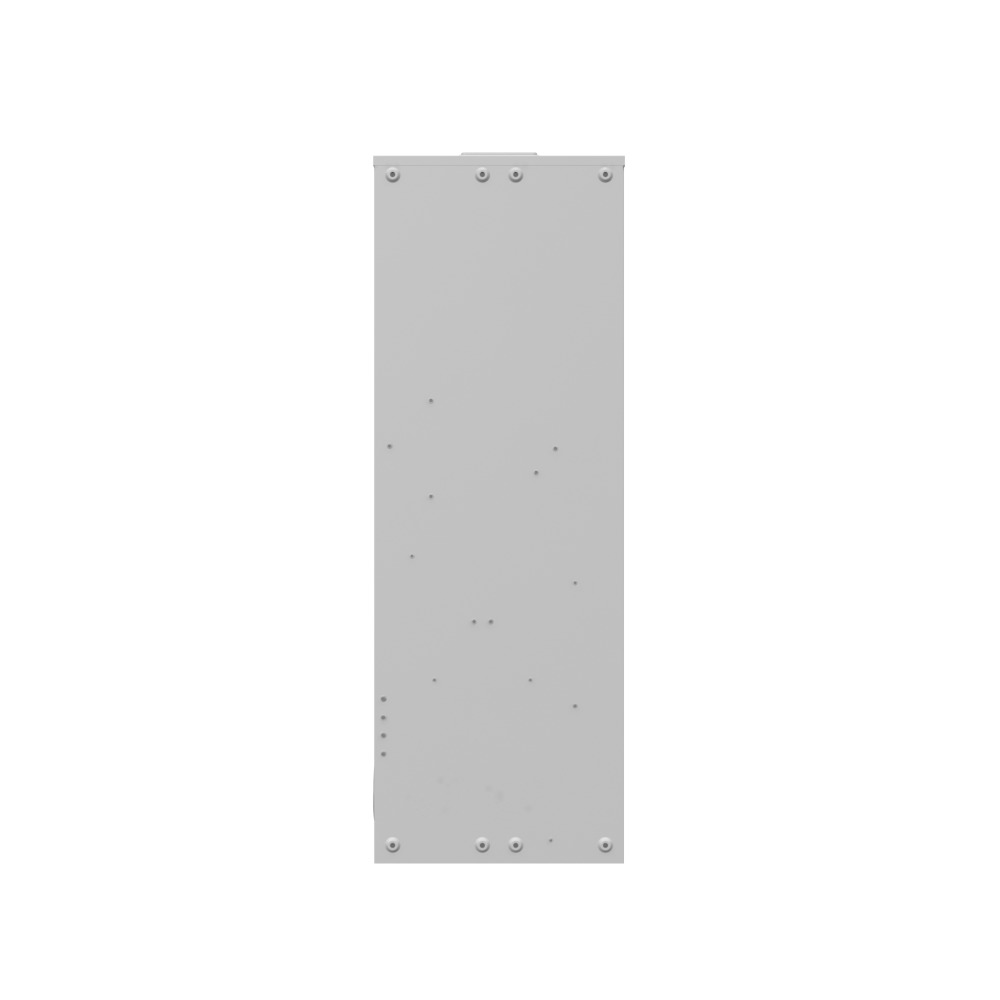

U5059-X-200/100-K3L-ALT 4 Term, Ringless, Large Closing Plate, 1-200 Amp, Main Breaker, 1-100 Amp, Main Breaker, Single Connector, Locking 4-600 kcmil, Alliant Energy
- MFR:
- Milbank
- MFR #:
- U5059-X-200/100-K3L-ALT
- UPC:
- 784572654990
- Item #:
- 262695
U5059-X-200/100-K3L-ALT 4 Term, Ringless, Large Closing Plate, 1-200 Amp, Main Breaker, 1-100 Amp, Main Breaker, Single Connector, Locking 4-600 kcmil, Alliant Energy
- MFR #:
- U5059-X-200/100-K3L-ALT
- UPC:
- 784572654990
- Item #:
- 262695
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$4,351.89
each
4 TERM RNGLS LRG CLS PLT 1-200 AMP MN BRKR 1-100A MN BRKR SGL CONN LKG 4-600kcmil ALLIANT ENERGY
Manuals and Documentation
| Catalog Number | U5059-X-200/100-K3L-ALT |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 320 |
| Application | Meter Socket With Main |
| Bypass Type | Lever |
| Cable Entry | Overhead or Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Surface Mount |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Special Features | Alliant Energy |
| Standard | UL Listed;Type 3R |
| UPC | 784572654990 |
| GTIN | 00784572654990 |
| Item Type | Ringless Meter Socket |
| Length | 4.844 |
| Length UOM | Inch |
| Width | 15 |
| Width UOM | Inch |
| Height | 42.438 |
| Height UOM | Inch |
| Size | 4.844L x 15W x 42.438H |
| Terminals | 3/8 Inch Stud |
| Voltage Rating | Up to 240 Volts Alternating Current |
