Telemecanique

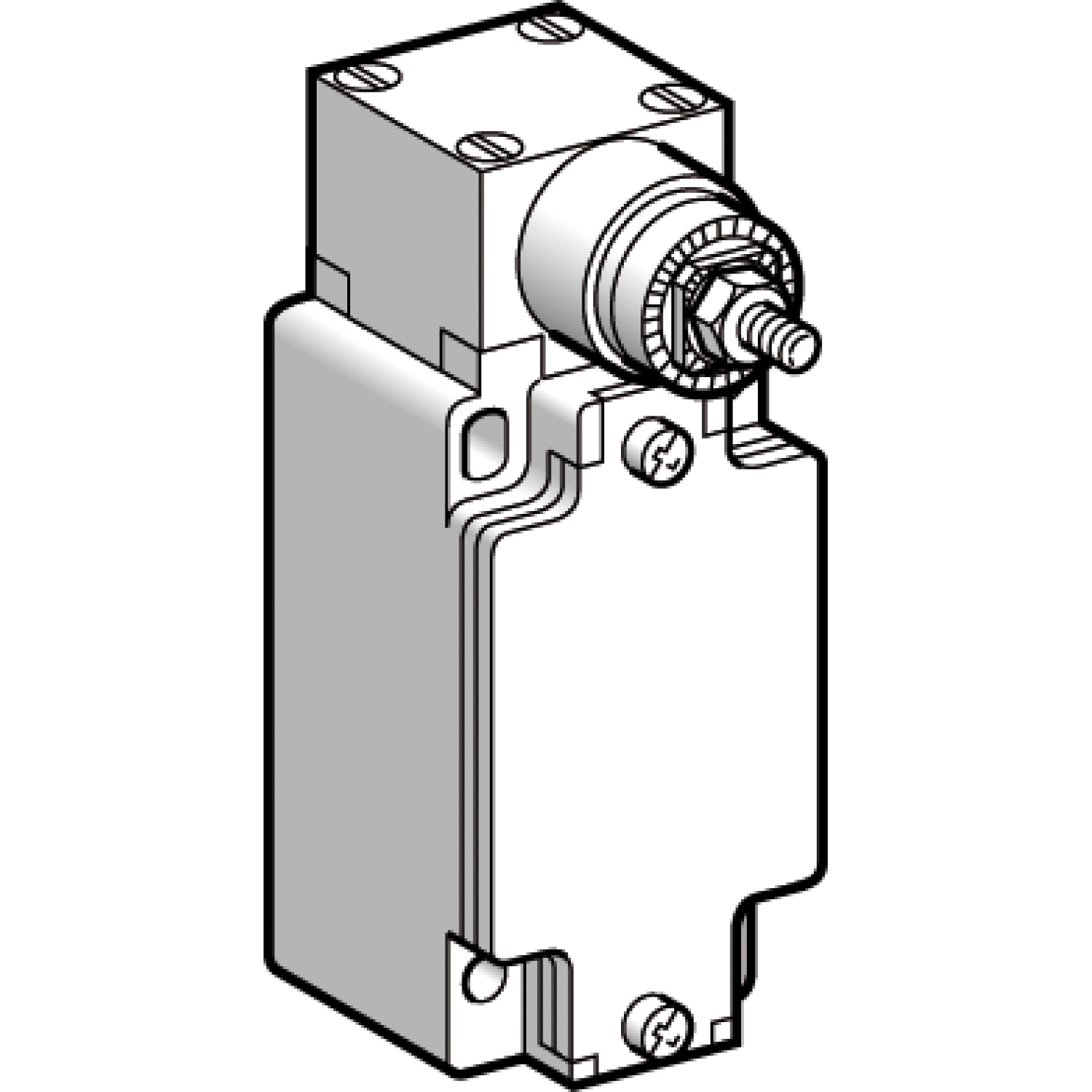

ZCKJ4104H7 OsiSense XC Plug-In Limit Switch Body With Spring Return Rotary Head, 2CO Contact, For Use With XCKJ, ZCKJ and ZCKJ Series Standard Format Compact Limit Switch, 10 A at 600 V AC Contact, IP66 Enclosure

MFR:
Telemecanique Sensors
MFR #:
ZCKJ4104H7
UPC:
785901604563
Item #:
259011

Availability

Location Available Qty
Available Available to Order
$369.61 each

limit switch body ZCKJ - rotary head w/o lever - plug-in - 2C/O - snap - 1/2"NPT

Manuals and Documentation
Catalog Number ZCKJ4104H7
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Action Snap action;From left and right
Amperage Rating 10
Application XCKJ
Connection Screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
Contact Configuration 2 C/O
Enclosure IP66
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features PLUG-IN BODY
Standard IK07,IP66
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879678&lang=en-us
UPC 785901604563
GTIN 03389118130340
Item Type Limit switch body with spring return rotary head
Size 1.73
Environmental Conditions HIGH TEMPERATURE
Operating Temperature 10-120 A Degrees C HIGH TEMPERATURE
Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
