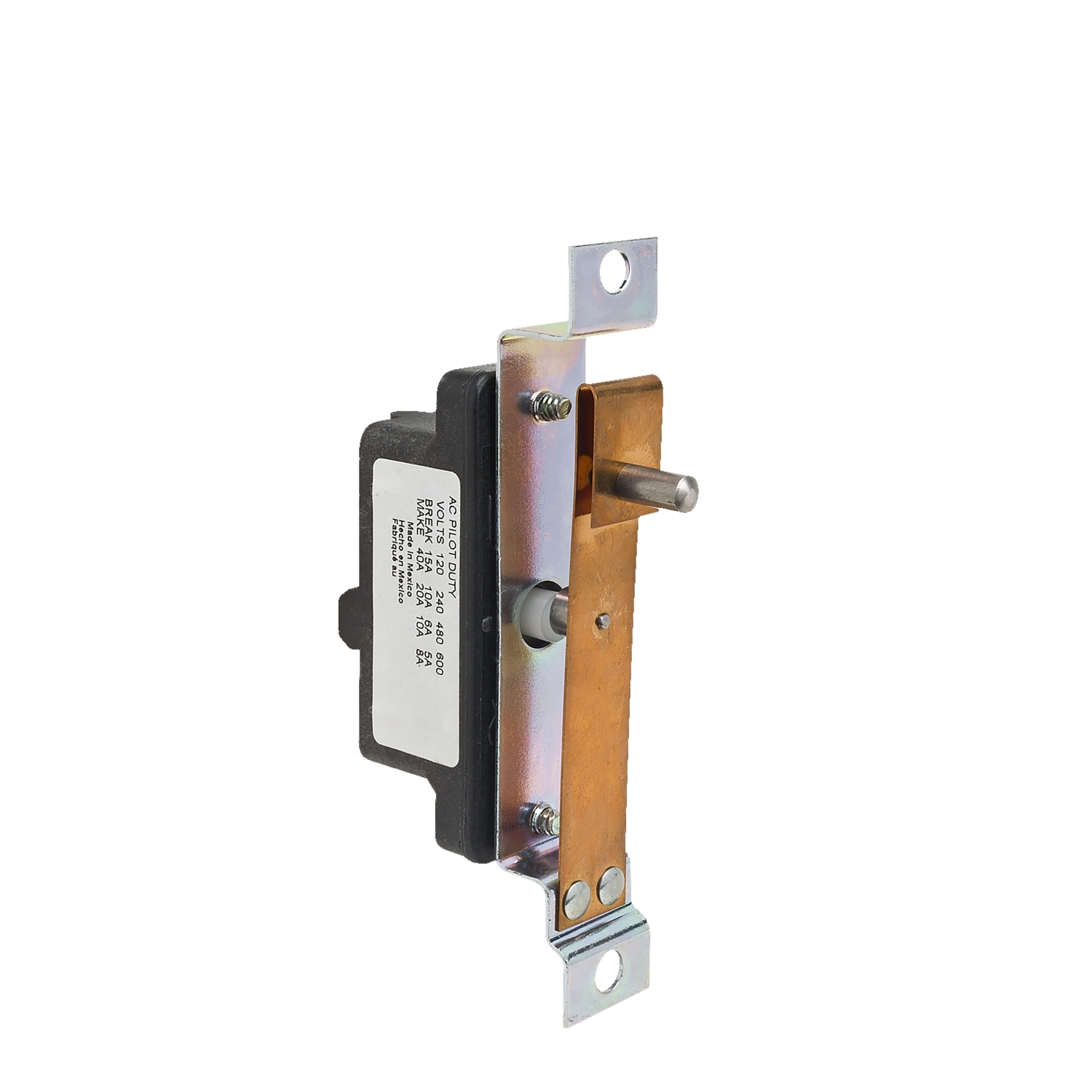

9007CO7 Osisense Heavy Duty Snap Switch, 600 V, 10 A, Plunger Actuator, 2NO-2NC 2 Form Z DPDT-DB Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- 9007CO7
- UPC:
- 785901837220
- Item #:
- 258066
9007CO7 Osisense Heavy Duty Snap Switch, 600 V, 10 A, Plunger Actuator, 2NO-2NC 2 Form Z DPDT-DB Contact, 2 Poles
- MFR #:
- 9007CO7
- UPC:
- 785901837220
- Item #:
- 258066
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Industrial snap switches are used as the electrical contacts within many control circuits and products. This two stage snap switch has a thermoplastic plunger. This two stage snap switch has two normally open and two normally closed snap action contacts. Snap switch contacts have an B600 inductive ratings and a 10A resistive rating. Snap switch is also rated for 0.2A at 125VDC and 0.1A at 250VDC. This snap switch is 2.50 inches tall, 0.83 inches wide and 1.14 inches deep. Snap switch is NEMA 1 and IP20 rated. Snap switch is UL component recognized and CSA certified. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
Manuals and Documentation
| Catalog Number | 9007CO7 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Linear;Snap action |
| Actuator | Vertical approach, 1 direction;Cast zinc;Spring return plunger plastic with thermoplastic end;Plunger head |
| Connection | 1-2 6 binder head screw terminals AWG 22...AWG 14) |
| Contact Configuration | Form ZZ;2(NC-NO) DPDT-DB |
| Enclosure | NEMA 1 NEMA TYPE 250 |
| Material | Cast zinc;Metal |
| Mounting | -;By The Body |
| Number of Poles | 2 |
| Special Features | 1...2 CABLES FOR 6 BINDER HEAD SCREW TERMINALS (AWG 22...AWG 14),IP20 CONFORMING TO IEC 60529 |
| Standard | IP20 IEC 60529 |
| UPC | 785901837220 |
| GTIN | 00785901837220 |
| Item Type | Snap basic limit switch |
| Size | 1.14 |
| Operating Temperature | -20-185 A Degrees F |
| Voltage Rating | 600V |
