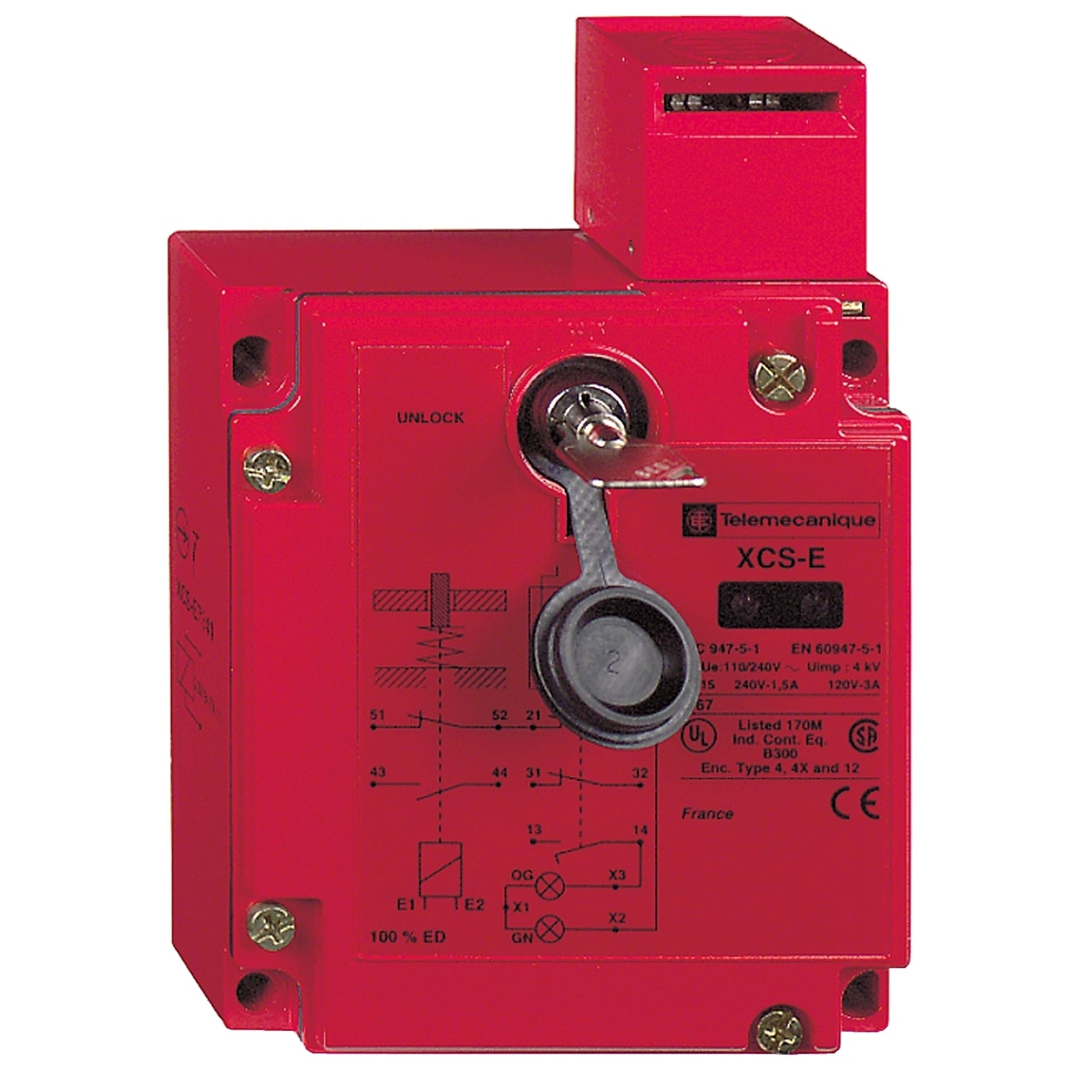

XCSE8333 Preventa Corrosion-Resistant Dusttight/Watertight Turret Head Safety Interlock Switch, 110/240 V AC, 6 A, 50/60 Hz, 10 VA Power Rating, 3 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCSE8333
- UPC:
- 785901719816
- Item #:
- 257433
XCSE8333 Preventa Corrosion-Resistant Dusttight/Watertight Turret Head Safety Interlock Switch, 110/240 V AC, 6 A, 50/60 Hz, 10 VA Power Rating, 3 Poles
- MFR #:
- XCSE8333
- UPC:
- 785901719816
- Item #:
- 257433
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,332.60
each
metal safety switch XCSE - 3NC- slow break - 2 entries tapped 1/2" NPT- 110/120V
Manuals and Documentation
| Catalog Number | XCSE8333 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Slow-break, simultaneous |
| Actuator | KEY |
| Amperage Rating | 6 |
| Application | KEY OPERATED TURRET HEAD |
| Connection | Terminal 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Contact Configuration | 3 NC |
| Enclosure | NEMA 4/4X/12 - IP67 |
| Number of Poles | 3 |
| Operating Cycles | 10 CYC/MN FOR MAXIMUM DURABILITY |
| Special Features | for guard open/guard closed and locked 2 LEDs (green or orange);Locking on de-energisation and unlocking on energisation of solenoid;Overvoltage protection signalling circuit |
| Standard | 10 GN 11 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CSA-UL,EN/IEC 60947-5-1-EN 1088/ISO 14119-UL 508-EN/IEC 60204-1-CSA C22.2 NO 14-EN/ISO 12100,IP67 EN/IEC 60529 AND EN/IEC 60947-5-1,CLASS I EN/IEC 61140 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=859350&lang=en-us |
| UPC | 785901719816 |
| GTIN | 03389110719819 |
| Item Type | Safety switch |
| Size | 1.73 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| Operating Temperature | -25-40 A Degrees C |
| Voltage Rating | 110/120 V - 20...10 % |
