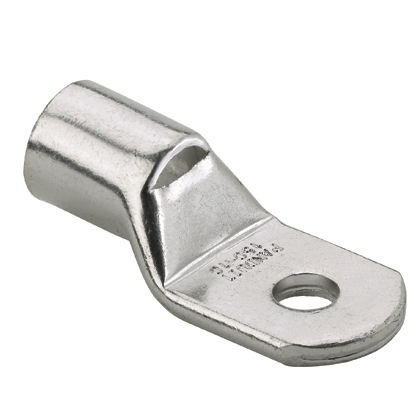

LCMA16-8-C Pan-Lug 1-Hole Metric Compression Connector Lug With Inspection Window, 16 sq-mm Rigid/Stranded Copper Conductor, Die Code: P21, 0.164 in Stud, Tin Plated Copper
- MFR:
- Panduit
- MFR #:
- LCMA16-8-C
- UPC:
- 074983769346
- Item #:
- 255073
LCMA16-8-C Pan-Lug 1-Hole Metric Compression Connector Lug With Inspection Window, 16 sq-mm Rigid/Stranded Copper Conductor, Die Code: P21, 0.164 in Stud, Tin Plated Copper
- MFR #:
- LCMA16-8-C
- UPC:
- 074983769346
- Item #:
- 255073
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2.3843
each
The LCMA16-8-CT Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
Manuals and Documentation
| Catalog Number | LCMA16-8-C |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Argentina |
| Made in USA | No |
| Amperage Rating | 65 |
| Material | Tin-Plated Copper |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| UPC | 074983769346 |
| GTIN | 00074983769346 |
| Item Type | Metric Compression Lug |
| Size | 16mm² Class 2 |
| Stud Size | 0.164 IN |
