LCMA10-8-C Pan-Lug 1-Hole Metric Compression Connector Lug, 10 sq-mm Flexible/Stranded Copper Conductor, Die Code: P21, M8 Stud, Tin Plated Copper
- MFR:
- Panduit
- MFR #:
- LCMA10-8-C
- UPC:
- 074983767915
- Item #:
- 255072
LCMA10-8-C Pan-Lug 1-Hole Metric Compression Connector Lug, 10 sq-mm Flexible/Stranded Copper Conductor, Die Code: P21, M8 Stud, Tin Plated Copper
- MFR #:
- LCMA10-8-C
- UPC:
- 074983767915
- Item #:
- 255072
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2.1042
each

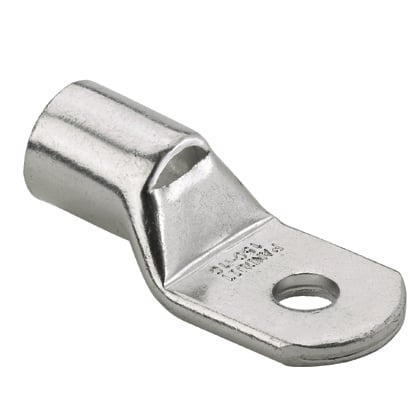

One-hole, metric conductor, standard barrel with window lug, 10mm wire, M8 stud hole.
Manuals and Documentation
| Catalog Number | LCMA10-8-C |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Argentina |
| Made in USA | No |
| Material | Tin-Plated Copper |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| UPC | 074983767915 |
| GTIN | 00074983767915 |
| Item Type | Metric Compression Lug |
| Size | 10mm² Class 2 |
