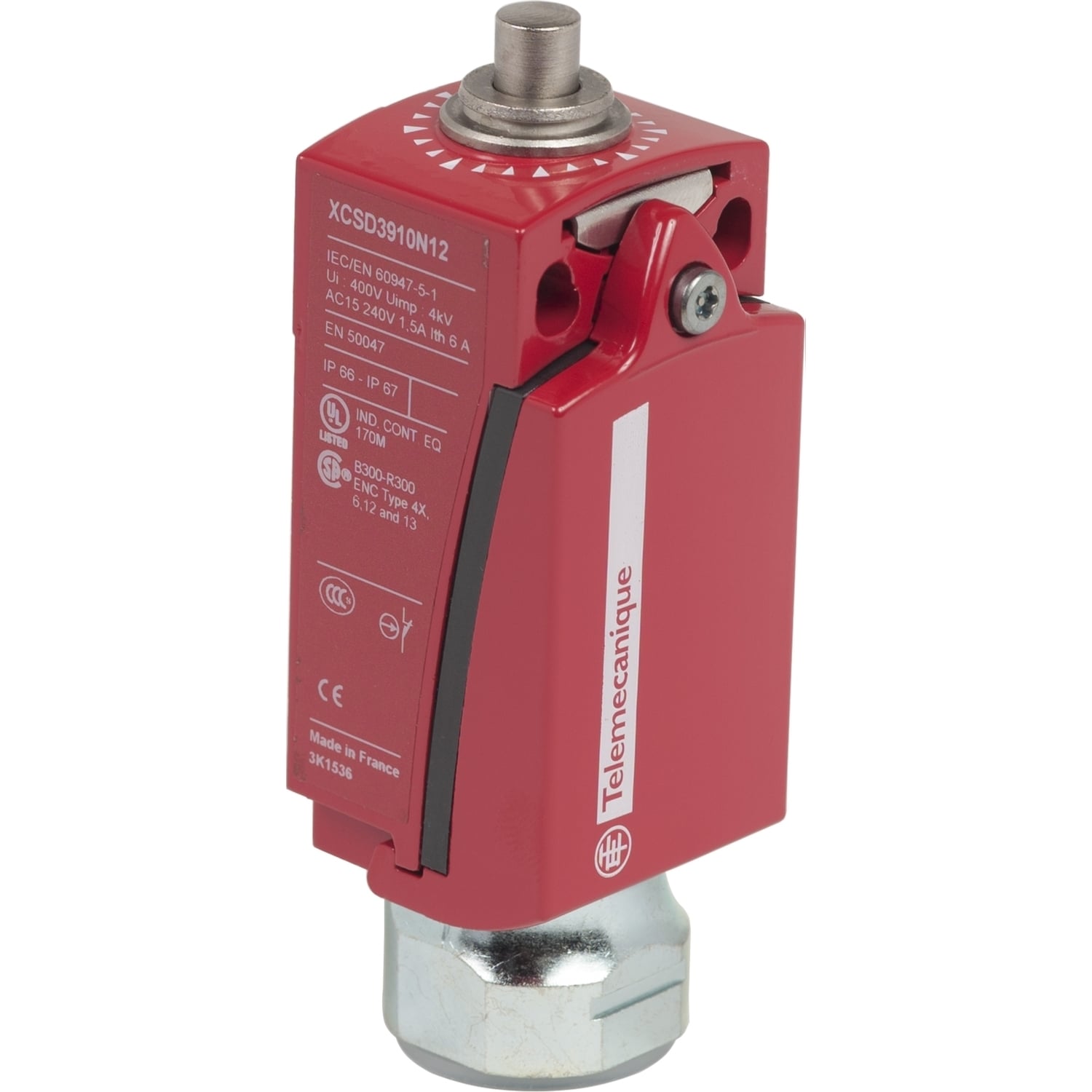

XCSD3910N12 Preventa Compact Limit Switch, 300 V, 6 A, 1NO-2NC Contact, 3 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCSD3910N12
- Item #:
- 253973
XCSD3910N12 Preventa Compact Limit Switch, 300 V, 6 A, 1NO-2NC Contact, 3 Poles
- MFR #:
- XCSD3910N12
- Item #:
- 253973
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$119.34
each
This XCSD Compact Safety Limit Switch has a metal end plunger, a Zamak body and head and a 1/2" NPT cable gland entry. It has 1 normally open and 2 normally closed snap action contacts. Its B10D reliability data is 50 000 000. It has IK06 impact resistance and IP66 / IP67 degree of protection, makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
| Catalog Number | XCSD3910N12 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Germany |
| Made in USA | No |
| Action | On end approach;Snap action |
| Actuator | Metal end plunger |
| Amperage Rating | 6 |
| Application | PLUNGER HEAD |
| Connection | Terminal |
| Contact Configuration | 1 NC + 1 NC + 1 NO |
| Enclosure | Plastic |
| Number of Poles | 3 |
| Special Features | Plastic protective cover, secured by 5-lobe socket head safety screw |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CSA C22.2 NO 14-EN/IEC 60204-1-EN/IEC 60947-5-1-EN 1088/ISO 14119-UL 508,IK06 EN 50102,IP66 IEC 60529-IP67 IEC 60529,UL-CSA,CLASS I NF C 20-030-CLASS I EN/IEC 61140 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=858826&lang=en-us |
| GTIN | 03389110240764 |
| Item Type | Safety limit switch |
| Size | 1.38 |
| Operating Temperature | -25-70 A Degrees C |
