Discontinued

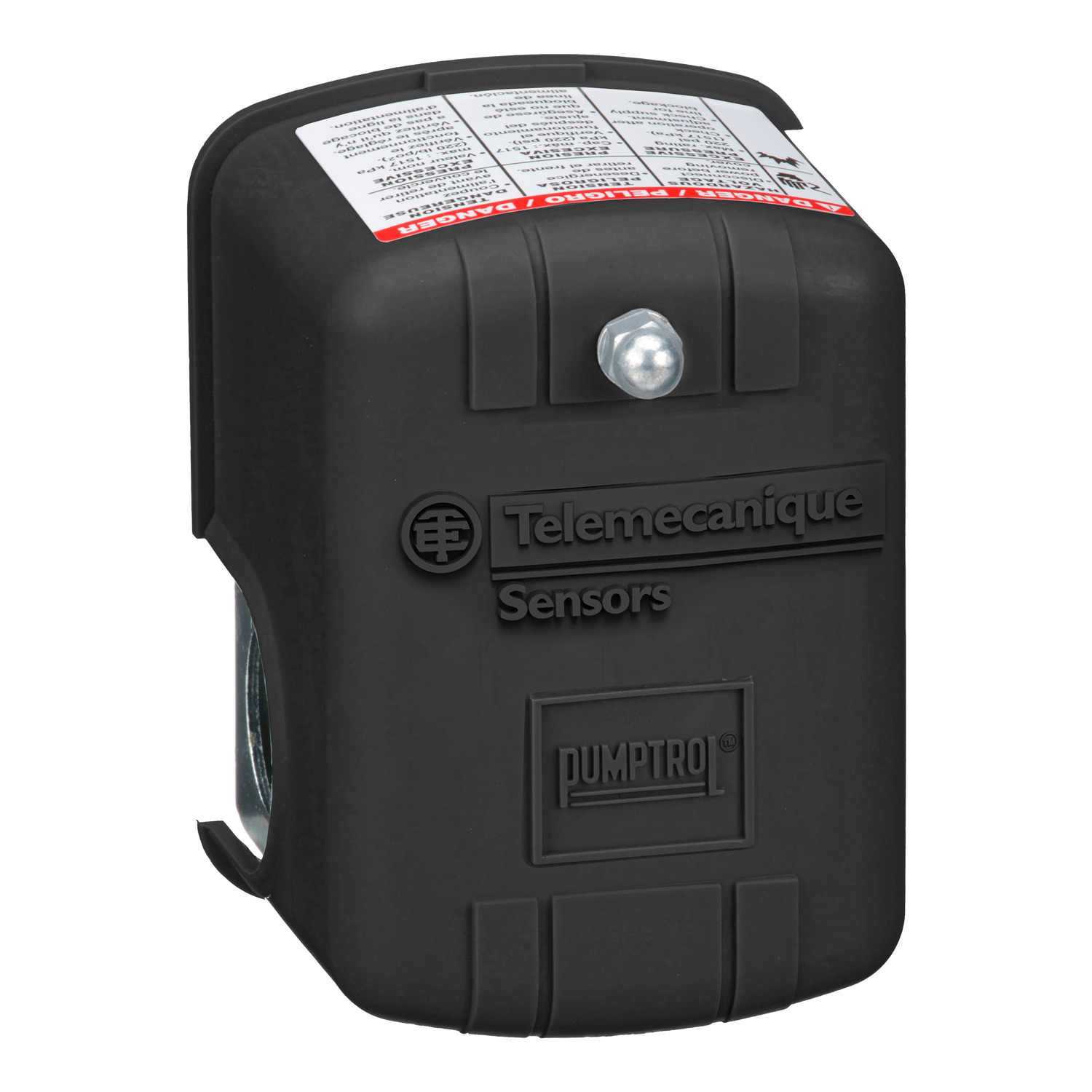

Pumptrol, air compressor switch 9013FH, fixed differential, factory setting, low hp
- MFR:
- Telemecanique Sensors
- MFR #:
- 9013FHG9J99X
- UPC:
- 785901051602
- Item #:
- 253488
Discontinued
Pumptrol, air compressor switch 9013FH, fixed differential, factory setting, low hp
- MFR #:
- 9013FHG9J99X
- UPC:
- 785901051602
- Item #:
- 253488
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
air compressor switch 9013FH - fixed differential - factory setting - low hp
Manuals and Documentation
| Catalog Number | 9013FHG9J99X |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty: 18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Control small electrically driven air compressors;Power circuit;Regulation between 2 thresholds |
| Contact Configuration | 2 NC, snap action, DPST-DB, Form YY |
| Contact Rating | A600 |
| Enclosure | NEMA 1 UL 50 |
| Operating Cycles | 10 CYC/MN |
| Process Connection | 0.25 INCH NPT EXTERNAL UL 508 |
| Special Features | 2-way pressure release valve |
| Standard | CE-UL 508,CSA FILE LR25490-UL LISTED FILE E12158,IP20 IEC 60529 |
| UPC | 785901051602 |
| GTIN | 00785901051602 |
| Item Type | Electromechanical pressure switch;Fixed differential |
| Environmental Conditions | GENERAL PURPOSE (INDOOR) |
| Operating Temperature | -33-257 A Degrees F |
| System Pressure | 100 PSI |
