Telemecanique

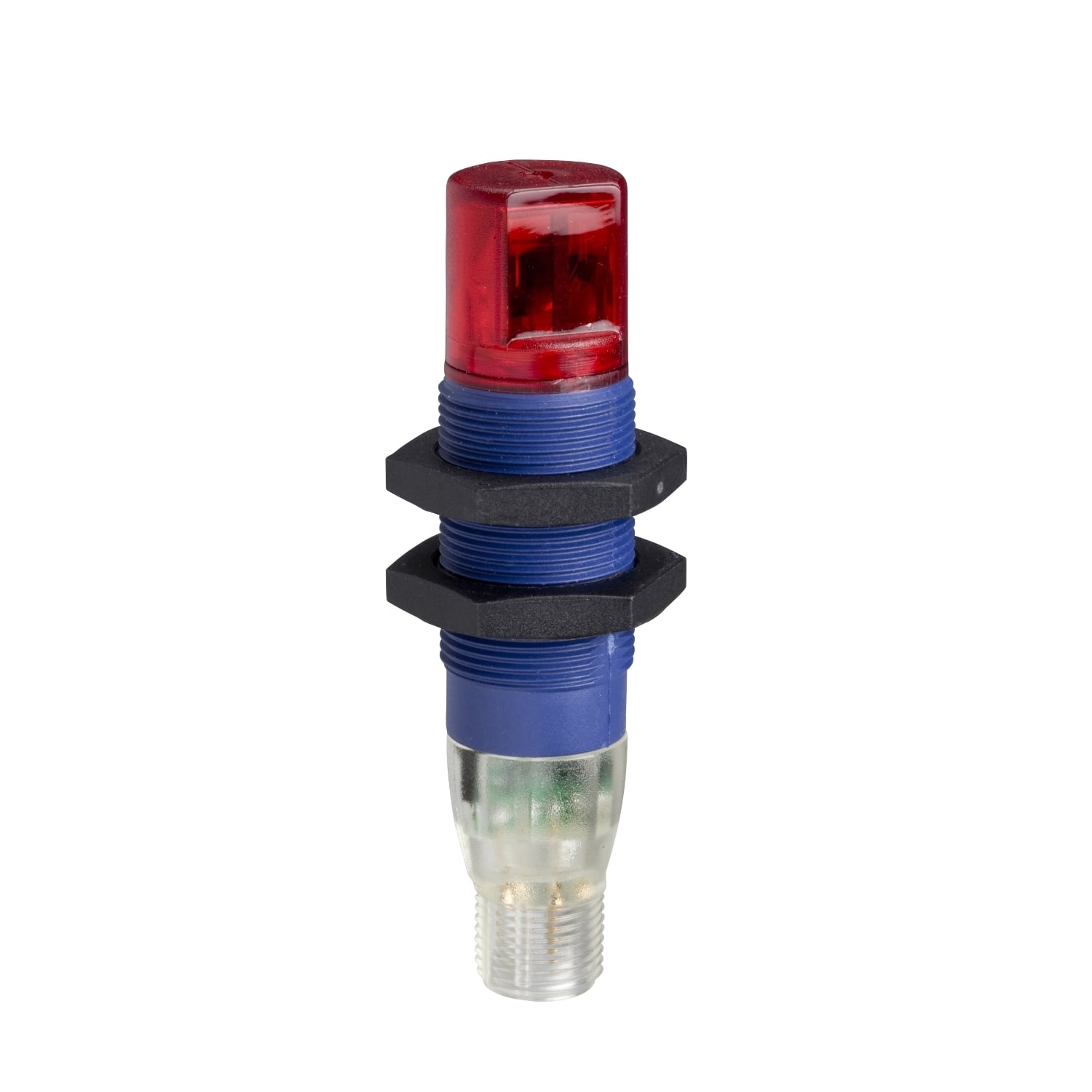

XUB9BPAWM12 OsiSense XU Simply Easy 3-Wire 90 deg Lateral Corrosion-Resistant Dusttight/Watertight Photoelectric Sensor, M18 Cylindrical Shape, 3 m, Infrared Sensing Beam, 1 ms Response, PNP 1NO Output

MFR:
Telemecanique Sensors
MFR #:
XUB9BPAWM12
UPC:
785901840640
Item #:
253477

Availability

Location Available Qty
Available Available to Order
$137.40 each

This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor has a cylindrical M18 design with polarized reflex detection system. It supports 2m nominal sensing distance and 1 NO PNP discrete output. The photoelectric sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection and no load current consumption of 35mA. It is furnished with 4-pin M12 male connector for electrical connection. It is an IP65/IP67/IP69K rated product. The enclosure is made of nickel plated brass with PMMA lens. Its dimensions are 18mm (diameter) x 48mm (length). It weighs 0.05kg. Ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CE, CSA and UL. The XU is for non contact sensing up to a hundred meters of objects of any shape and any type. The XU range offers a full line of photoelectric proximity sensors dedicated to material handling, packaging, labelling, lift, food and beverage industries.

Manuals and Documentation
Catalog Number XUB9BPAWM12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application -
Connection 1 male connector M12, 4 pins
Enclosure IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529-IP69K DOUBLE INSULATION CONFORMING TO DIN 40050,NICKEL PLATED BRASS
Operating Cycles <= 500 Hz
Output PNP;1 NO;Discrete;Solid state
Sensing Range 2-2 M POLARISED REFLEX NEED REFLECTOR XUZC50,> 3.28...16.4 FT (> 1...5 M)
Special Features 1 LED yellow)output state
Standard CE-CSA-UL,IP67 DOUBLE INSULATION IEC 60529-IP65 DOUBLE INSULATION IEC 60529-IP69K DOUBLE INSULATION DIN 40050
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=873156&lang=en-us
UPC 785901840640
GTIN 03389110159615
Item Type General purpose single mode;Polarised reflex;Cylindrical M18;Photo-electric sensor
Size 0.71
Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR)
Operating Temperature -25-55 A Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
