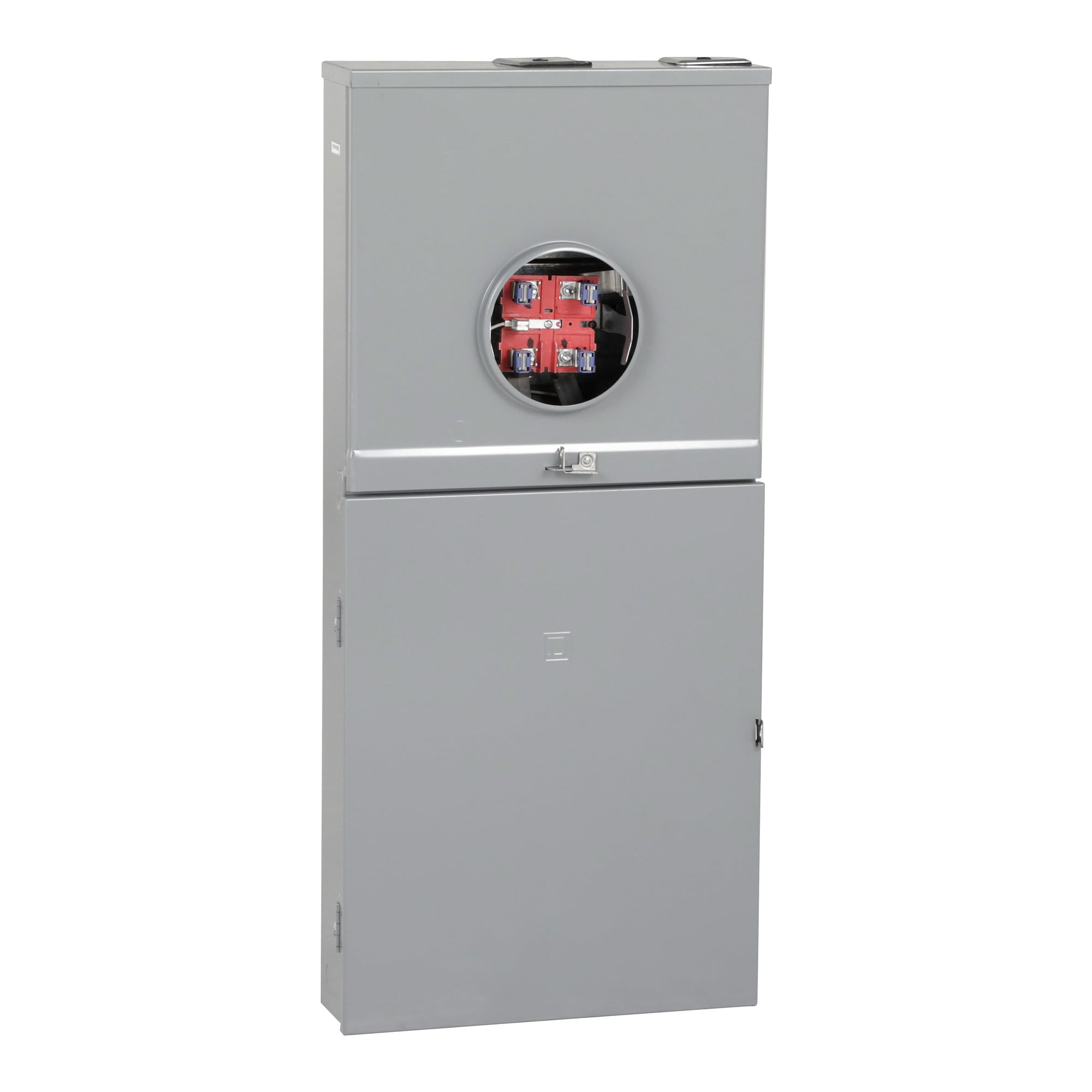

RC816F200S Homeline Meter Main, CSED, 200 Amp, 1 Phase, Ringless, No Bypass, OH, UG, Surface, max 8 Spaces, 16 Circuits
RC816F200S Homeline Meter Main, CSED, 200 Amp, 1 Phase, Ringless, No Bypass, OH, UG, Surface, max 8 Spaces, 16 Circuits
Location | Available Qty |
---|---|
Available | Available to Order |
Flexible design meets a wide range of outdoor residential application and makes installation easy. This allows Square D meter mains to used where local codes require service disconnects to be located outside the dwelling. They include the utility meter socket and factory installed and/or provisions for field installation of service disconnect(s) to feed downstream devices. Square D meter mains available in ring or ringless styles This meter main is rated at 200 A and 22 kA. It is a ringless design with 8 spaces and 16 circuits. This Square D meter main also is with overhead/underground feed, and surface mount only.
Manuals and Documentation
- Catalog Number
- RC816F200S
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- Mexico
- Made in USA
- No
- Bypass Type
- No Bypass
- UPC
- 785901946540
- GTIN
- 00785901946540
- Width
- 18.76
- Width UOM
- Inch
- Height
- 41.16
- Height UOM
- Inch
- Depth
- 5.41 IN
