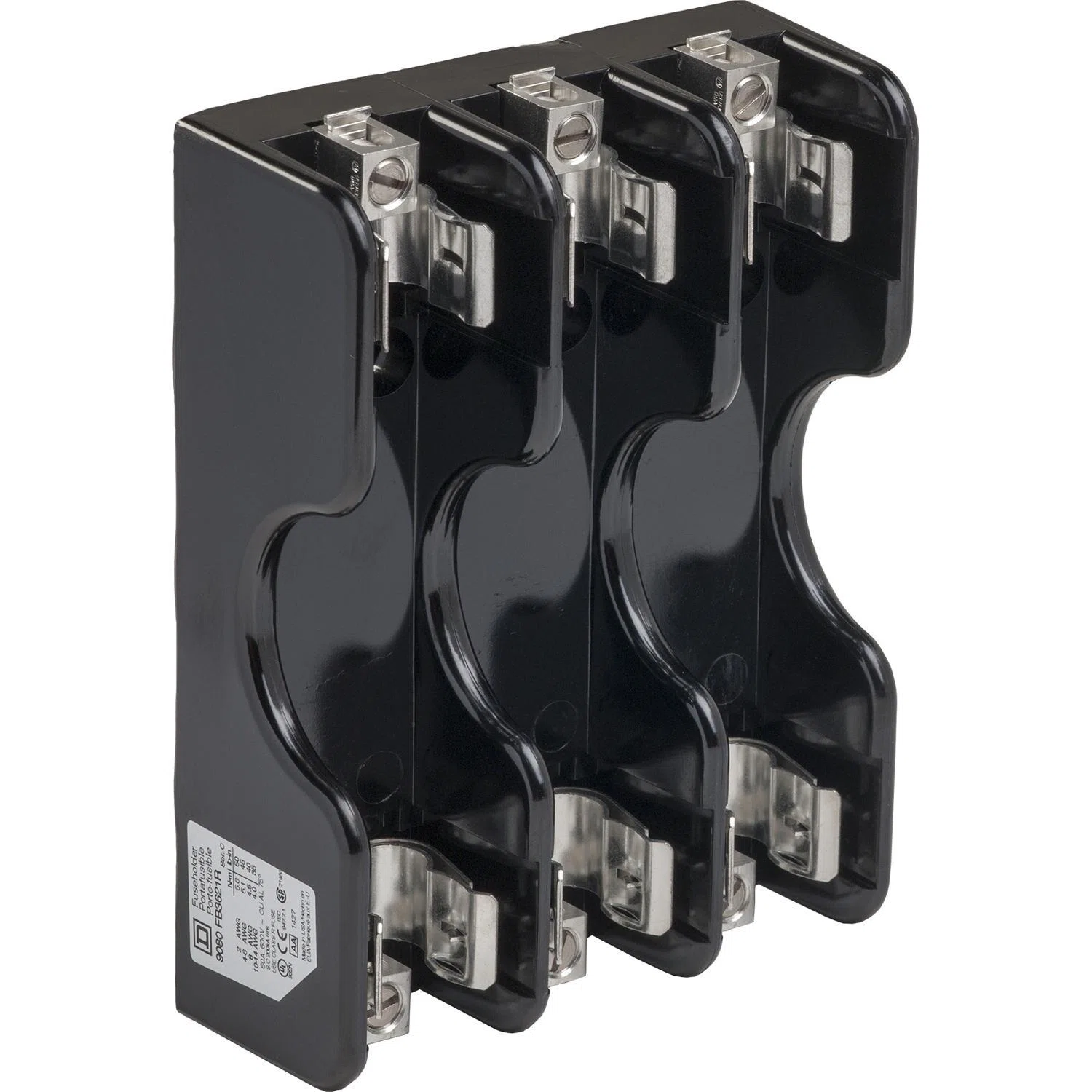

9080FB3621R Type FB Fuse Holder, 600 V AC, 60 A, Class: R, 14 to 2 AWG Wire, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- 9080FB3621R
- UPC:
- 785901097259
- Item #:
- 252604
9080FB3621R Type FB Fuse Holder, 600 V AC, 60 A, Class: R, 14 to 2 AWG Wire, 3 Poles
- MFR #:
- 9080FB3621R
- UPC:
- 785901097259
- Item #:
- 252604
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$154.46
each
Type S non-reversing magnetic starters are for motor control applications. NEMA Size 1 starters have ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC poly phase and has a maximum rating of 27 Amps. This 3 pole starter is for poly phase applications. These starters are available with a wide variety of replaceable coil voltages. Starter has a 440/480 VAC 50/60 Hz operating coil. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This contactor doesn't have an enclosure. Starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S starters are UL listed and CSA certified for global applications.
Manuals and Documentation
Features
- Ideal for distributing power to multiple loads
- Their versatility and easy wiring makes them ideal terminal block
- Offers labor savings with easy wiring requiring a standard screwdriver
| Manufacturer Part Number | 9080FB3621R |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901097259 |
| EAN | 0785901097259 |
| Country Of Origin | US |
| Amperage Rating | 60 A |
| Dimensions | 6.75 in H x 5.08 in W x 2.12 in D |
| Mounting Type | Surface |
| Suitable For Use With | Phenolic |
| Temperature Rating | -40 to 302 deg F |
| Type | Type FB |
| Voltage Rating | 600 V AC |
| Alternative Part Number | 8019096 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 Months |
| Standards Approvals | UL listed file E40747 CCN IZLT;CE;CSA file 70360 class 6225 01 |
| Application | Control Systems and Industrial Control Applications |
| Class | R |
| Connection Type | Box Lug |
| Fuse Diameter | 1-1/16 in |
| Fuse Length | 5-1/2 in |
| Number Of Poles | 3 |
| Wire Size | 14 to 2 AWG |
