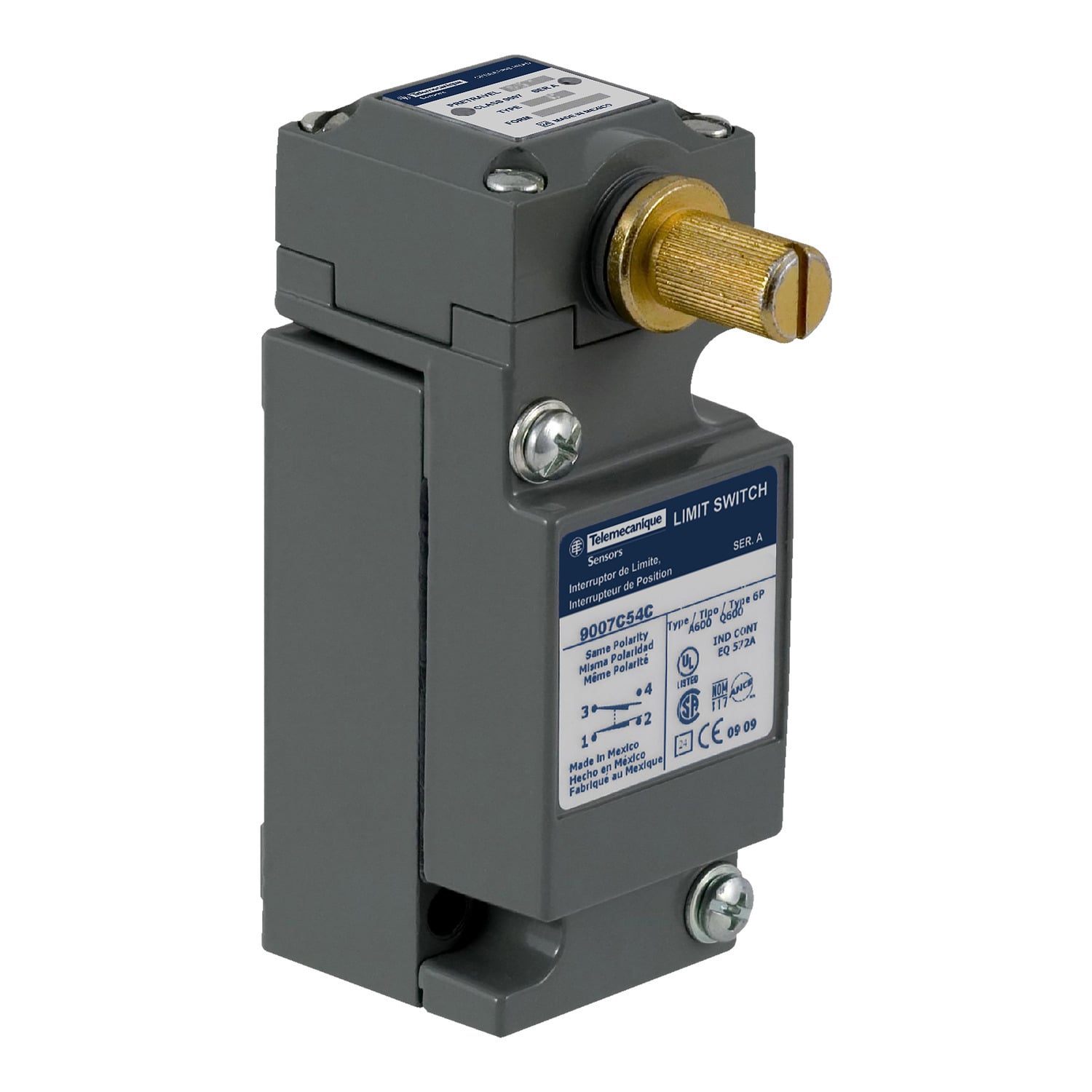

Limit switch, 9007, 9007C 1 NO/NC, rotary head, CW+CCW, maintained
- MFR:
- Telemecanique Sensors
- MFR #:
- 9007C54CS9
- UPC:
- 785901046066
- Item #:
- 252555
Limit switch, 9007, 9007C 1 NO/NC, rotary head, CW+CCW, maintained
- MFR #:
- 9007C54CS9
- UPC:
- 785901046066
- Item #:
- 252555
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$556.75
each
9007C limit switch - 1 NO/NC - rotary head - CW+CCW - maintained
Manuals and Documentation
| Catalog Number | 9007C54CS9 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | CW and CCW;from left and right;Lateral approach, 1 direction programmable;Snap action |
| Actuator | Zinc stay put without operating lever -)9007T/FT lever |
| Amperage Rating | 10 |
| Application | Standard box |
| Connection | Screw-clamp terminals AWG 22...AWG 12), 1-2 |
| Contact Configuration | NC-NO;Form Z |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250 |
| Mounting | By The Body |
| Number of Poles | 1 |
| Operating Cycles | 1000000 CYCLES |
| Special Features | without |
| Standard | 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140 |
| UPC | 785901046066 |
| GTIN | 00785901046066 |
| Item Type | Limit switch |
| Size | 1.55 IN,2.5 IN,4.02-4.02 IN |
| Environmental Conditions | STANDARD ENVIRONMENT |
| Operating Temperature | -20-185 A Degrees F STANDARD ENVIRONMENT |
| Voltage Rating | 1.2 A 600 V AC, A600 NEMA-0.1 A 600 V DC, Q600 NEMA |
