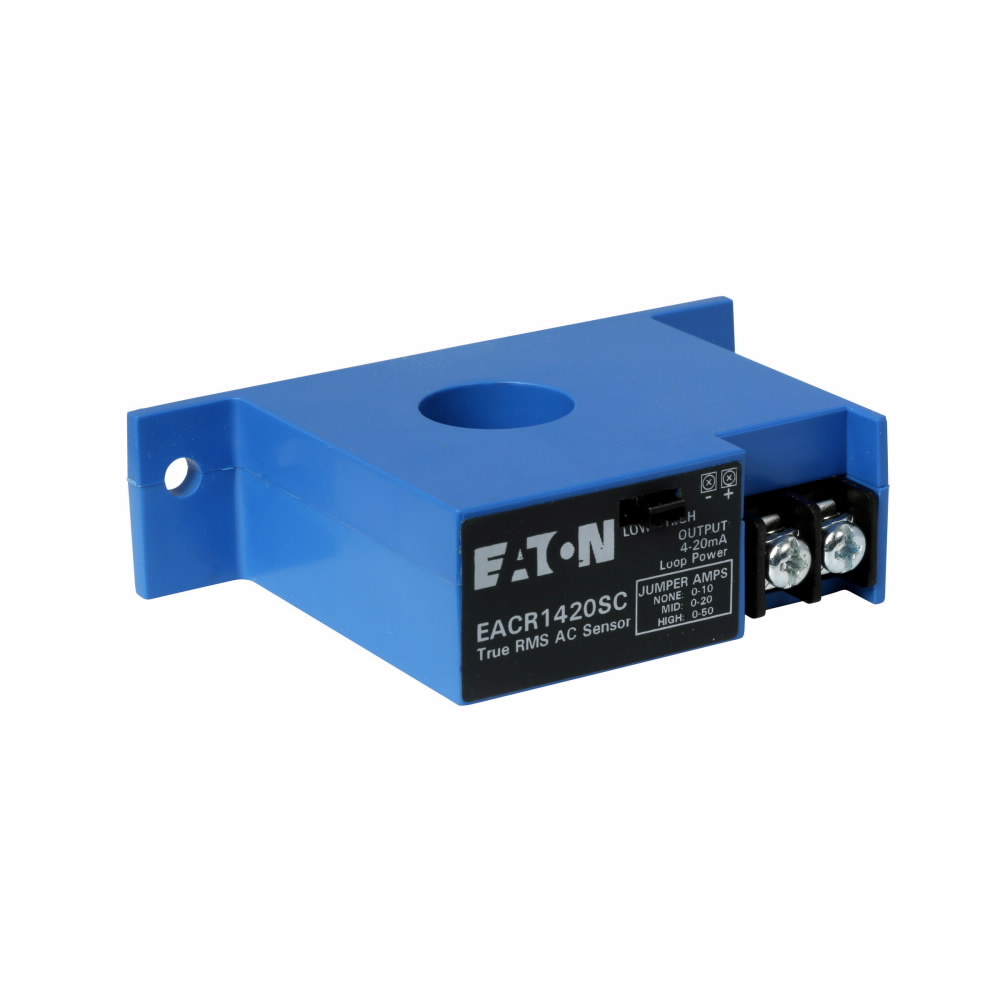

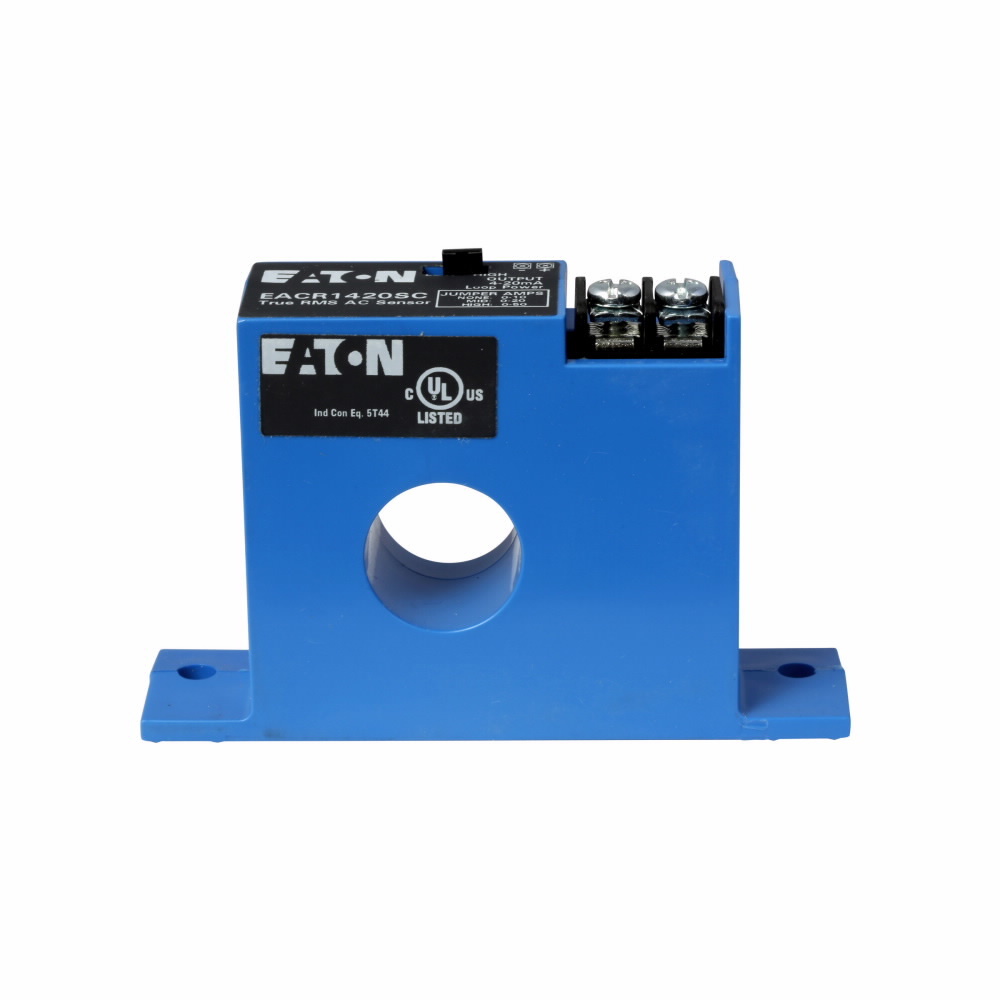

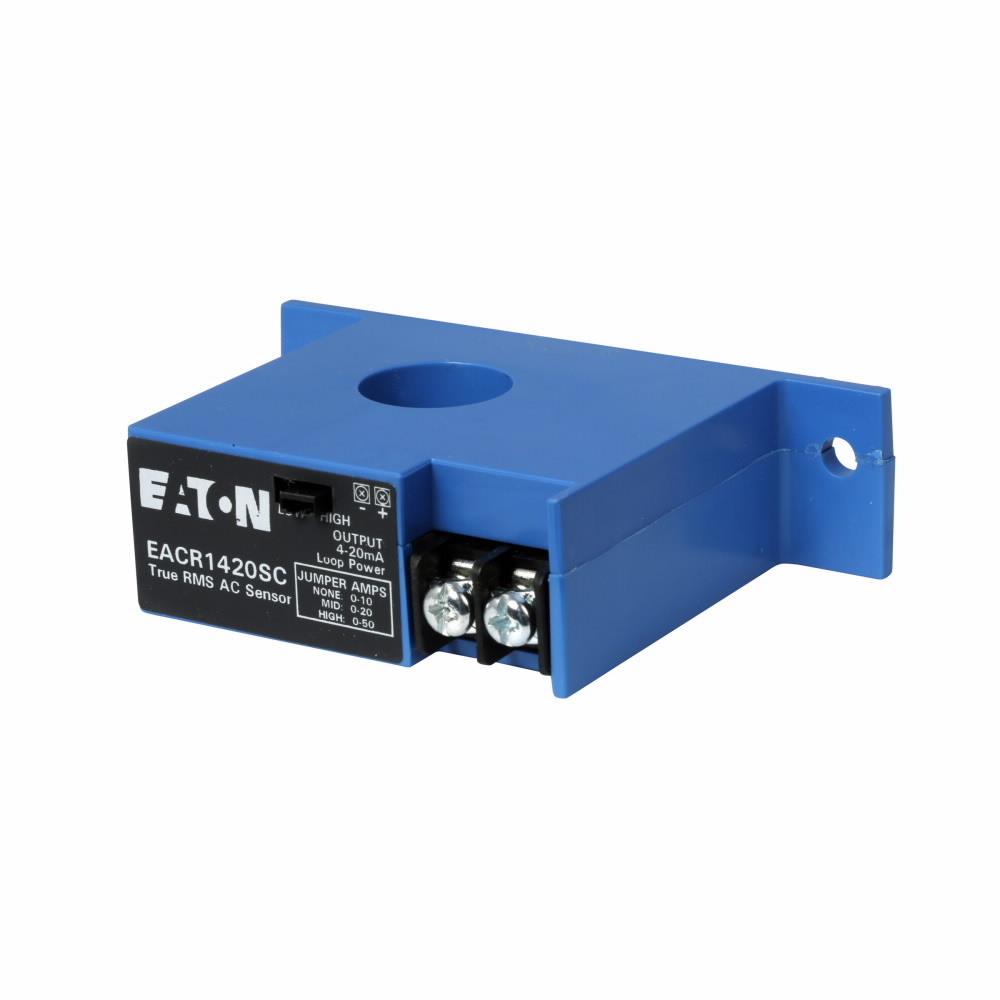

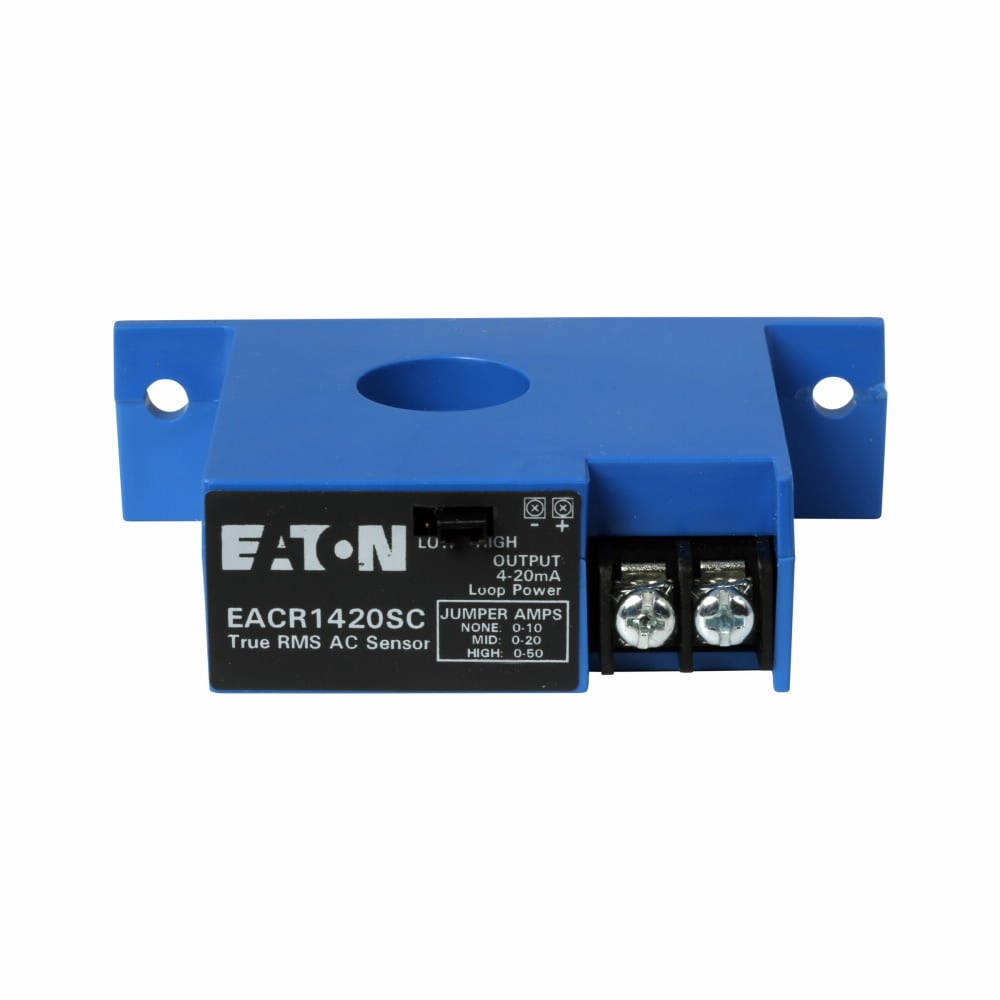

EACR1420SC Top Terminal Current Sensor, 600 ms Response, 24 V DC
- MFR:
- Eaton
- MFR #:
- EACR1420SC
- UPC:
- 786685120690
- Item #:
- 252333
EACR1420SC Top Terminal Current Sensor, 600 ms Response, 24 V DC
- MFR #:
- EACR1420SC
- UPC:
- 786685120690
- Item #:
- 252333
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$766.60
each
The EACR Series provides true rms output on distorted waveforms found on variable frequency drives or silicon-controlled rectifier outputs, and on linear loads in noisy power environments. Available in solid- or split-core housings. The CurrentWatch EACR Series current sensor family combines a current sensor and a true rms signal into a single package.
Manuals and Documentation
| Catalog Number | EACR1420SC |
| Manufacturer | Eaton |
| Brand | Eaton |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Ind Facilities & Factories - Facility: Power Distribution and Control|Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Connection | Screw terminal |
| Standard | UL/CUL listed |
| UPC | 786685120690 |
| GTIN | 00786685120690 |
| Item Type | CurrentWatch RMS current sensor |
| Operating Temperature | -4 Degrees to 122 Degrees F (-20 Degrees to 50 Degrees C) |
