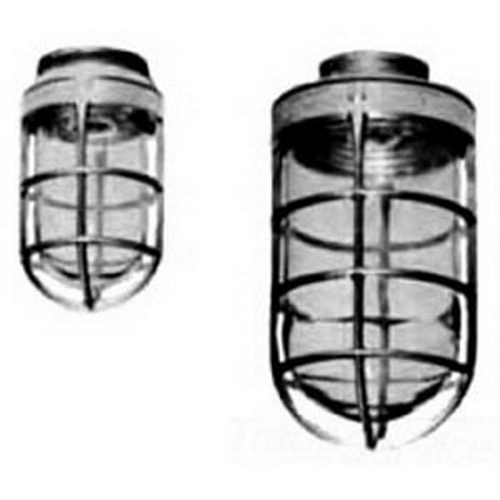

V-51; Lighting Fixture; 100 Watt, 120 Volt, Epoxy Powder Coated
- MFR:
- Appleton Electric
- MFR #:
- VU100M
- UPC:
- 781381441841
- Item #:
- 251670
V-51; Lighting Fixture; 100 Watt, 120 Volt, Epoxy Powder Coated
- MFR #:
- VU100M
- UPC:
- 781381441841
- Item #:
- 251670
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Appleton UNILETS V-51 Series Fixture Unit With Guard, Lamp Type: 60 - 150 WTT A21 Medium Incandescent, Lamp Wattage: 60 - 150 WTT, Voltage Rating: 150 V, Number Of Lamps: 1, Material: Malleable Iron Mounting Hood With Aluminum Adapter And Steel Guard, Porcelain Socket With Brass Screw Shell, Fixture Wattage: 60 - 150 WTT, Housing Finish: Zinc Electroplate, Chromate And Epoxy Powder Coat Mounting Hood And Globe Adapter, Housing Material: Malleable Iron, Ambient Temperature Range: 75 DEG C Non-Classified, 40 DEG C Classified, Temperature Range: 125 DEG C Supply Wire, Lens Material: Natural Finish Glass Globe, Reflector/Refractor: White Porcelain Enamel Steel Reflector, Standard: NEC: Class I, Division 2, Groups A, B, C, D, CSA Certified: Class I, Division 2, Groups A, B, C, D, Class II, Divisions 1 And 2, Groups E, F, G, Class III, Enclosure 3R, UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428, For Enclosed And Gasketed Lighting Fixtures For Use In Storage Areas, Tunnels, Subways, Chemical Plants And Other Areas Where Moisture, Dirt Or Corrosive Atmospheres Are A Problem, Suitable For Use In Wet Locations, Use With Threaded Metal Conduit
Manuals and Documentation
| Catalog Number | VU100M |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Enclosed And Gasketed Lighting Fixtures For Use In Storage Areas, Tunnels, Subways, Chemical Plants And Other Areas Where Moisture, Dirt Or Corrosive Atmospheres Are A Problem; Suitable For Use In Wet Locations; Use With Threaded Metal Conduit |
| Lamp Type | 60 - 150 WTT A21 Medium Incandescent |
| Material | Malleable Iron Mounting Hood With Aluminum Adapter And Steel Guard, Porcelain Socket With Brass Screw Shell |
| Special Features | Furnished with connection block for easy wiring; Unitized construction reduces installation and maintenance costs; Shock-absorbing porcelain socket for longer lamp life; Neoprene rubber ring in neck of reflector snaps into groove of mounting hood - protects against vibration and chipping; Guard snaps into two recesses of adapter - no clamps or set screws; Five tapped openings and four close-up plugs |
| Standard | NEC: Class I, Division 2, Groups A, B, C, D; CSA Certified: Class I, Division 2, Groups A, B, C, D, Class II, Divisions 1 And 2, Groups E, F, G, Class III, Enclosure 3R; UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428 |
| UPC | 781381441841 |
| GTIN | 00781381441841 |
| Item Type | V-51 Series Fixture Unit With Guard |
| Voltage Rating | 150 |
