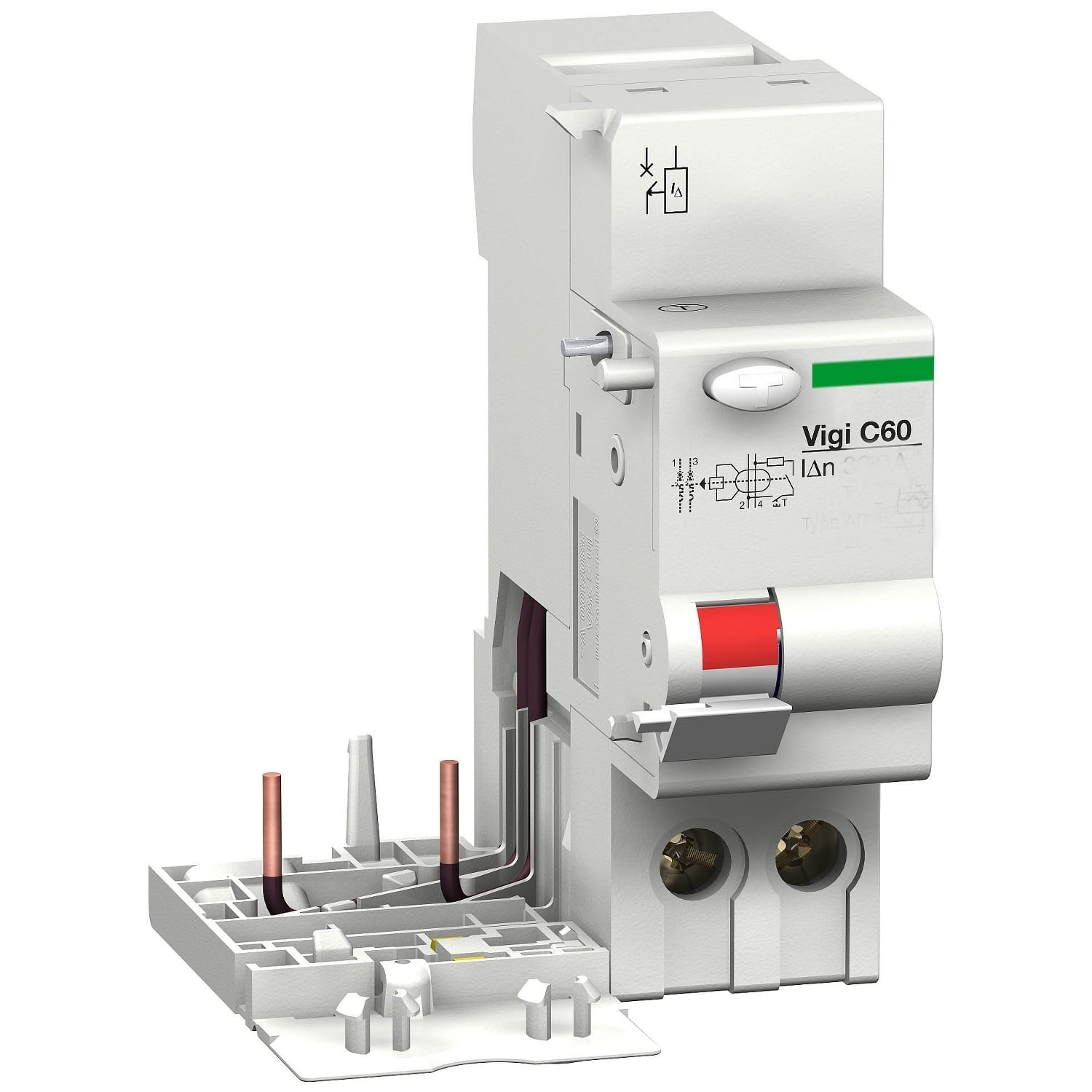

M9V11263 Type AC Add-On Block Earth Leakage Residual Current Circuit Breaker, 230/240 V AC, 63 A, For Use With Multi 9 C60H and Vigi C60 Circuit Breaker
- MFR:
- Schneider Electric
- MFR #:
- M9V11263
- Item #:
- 251433
M9V11263 Type AC Add-On Block Earth Leakage Residual Current Circuit Breaker, 230/240 V AC, 63 A, For Use With Multi 9 C60H and Vigi C60 Circuit Breaker
- MFR #:
- M9V11263
- Item #:
- 251433
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This Vigi C60 is a modular add-on residual current devices. It is a 2P and rated current is 63A. The earth leakage protection class is AC type with a sensitivity of 30mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. The Ue rated operational voltage is 230VAC or 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 4. The product color is light grey (RAL7035). The dimensions are (W) 36mm x (H) 87mm x (D) 74mm. The weight is 150g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5C to 60C. The storage temperature is -40C to 60C.
Manuals and Documentation
| Catalog Number | M9V11263 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=422620250&lang=en-us |
| GTIN | 03606480684548 |
