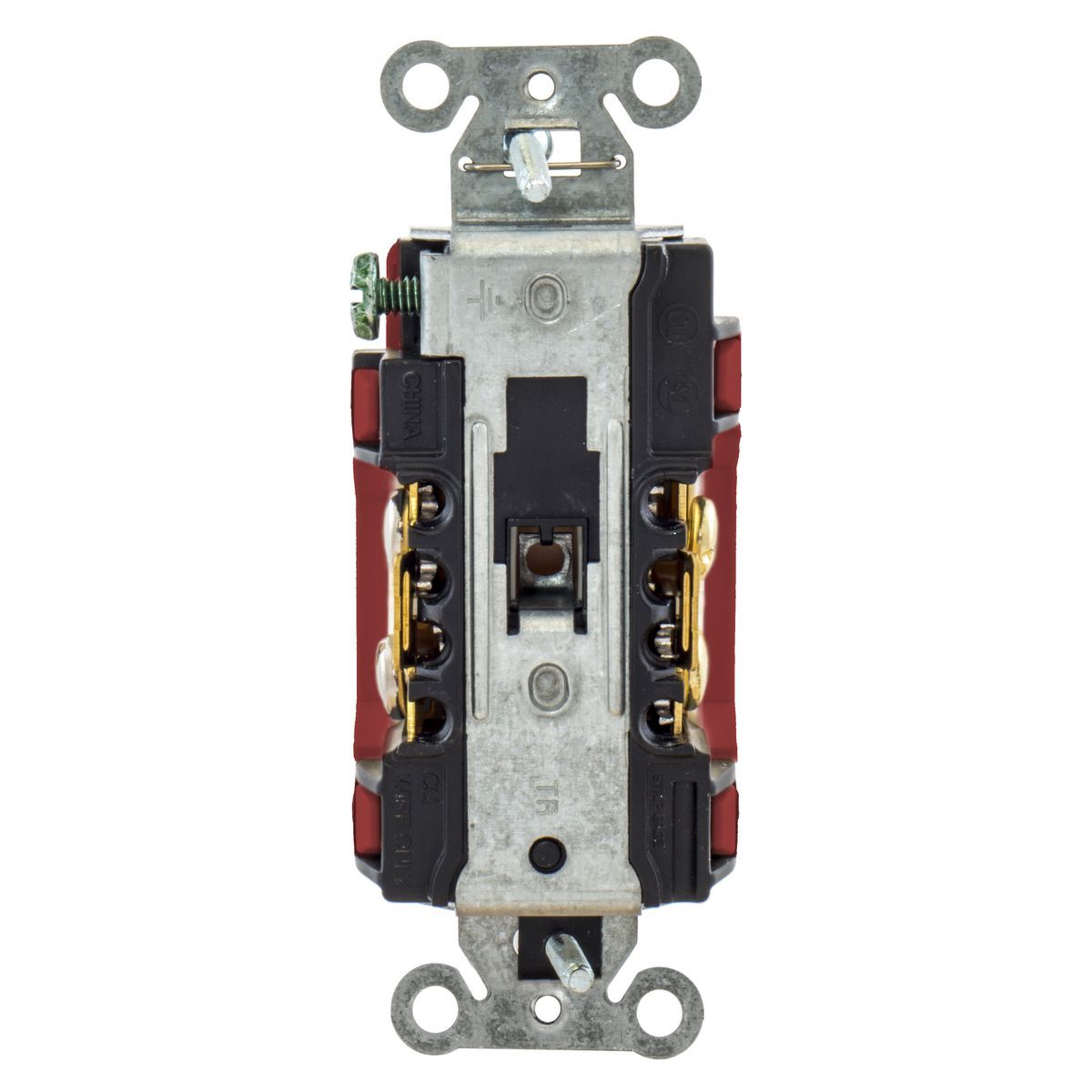

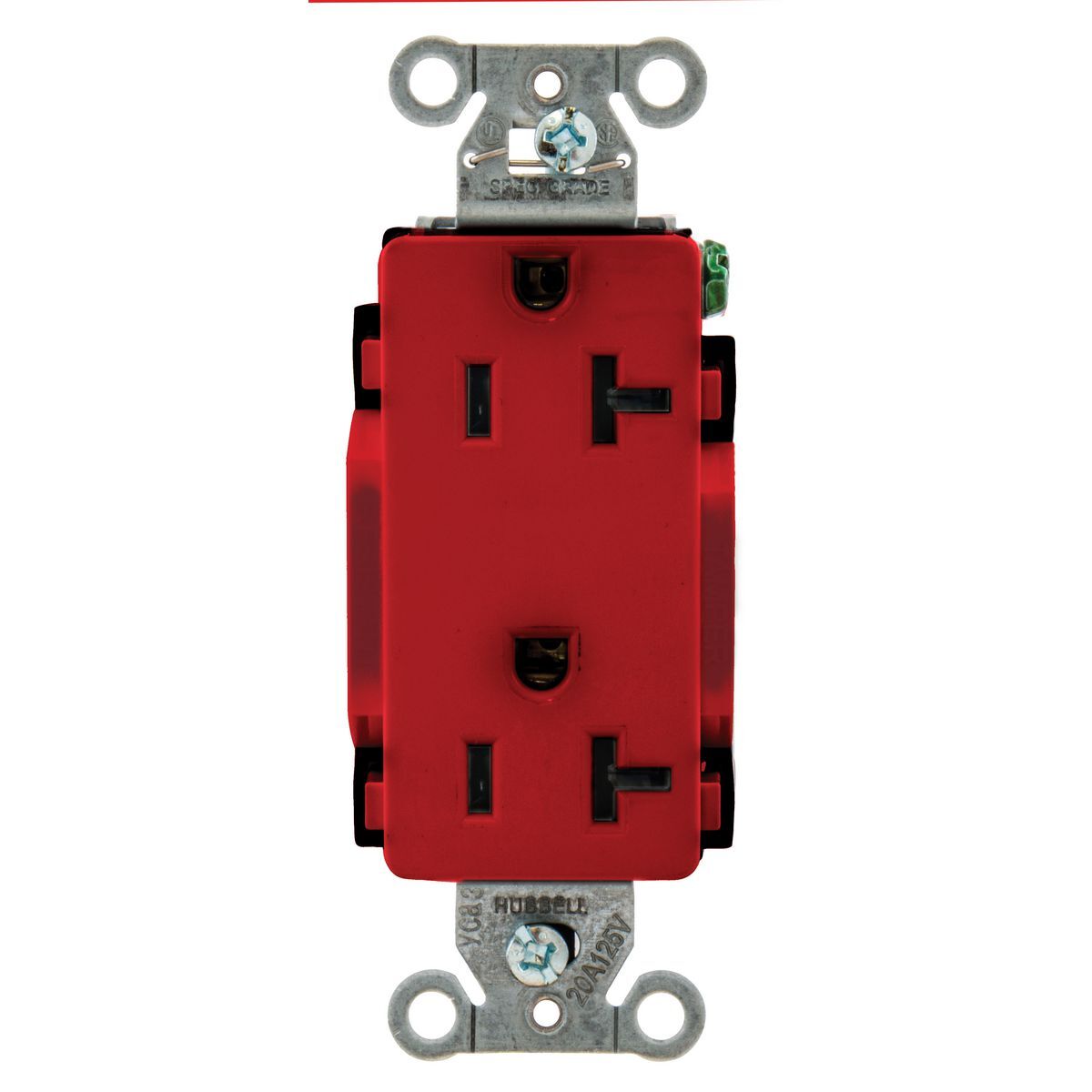

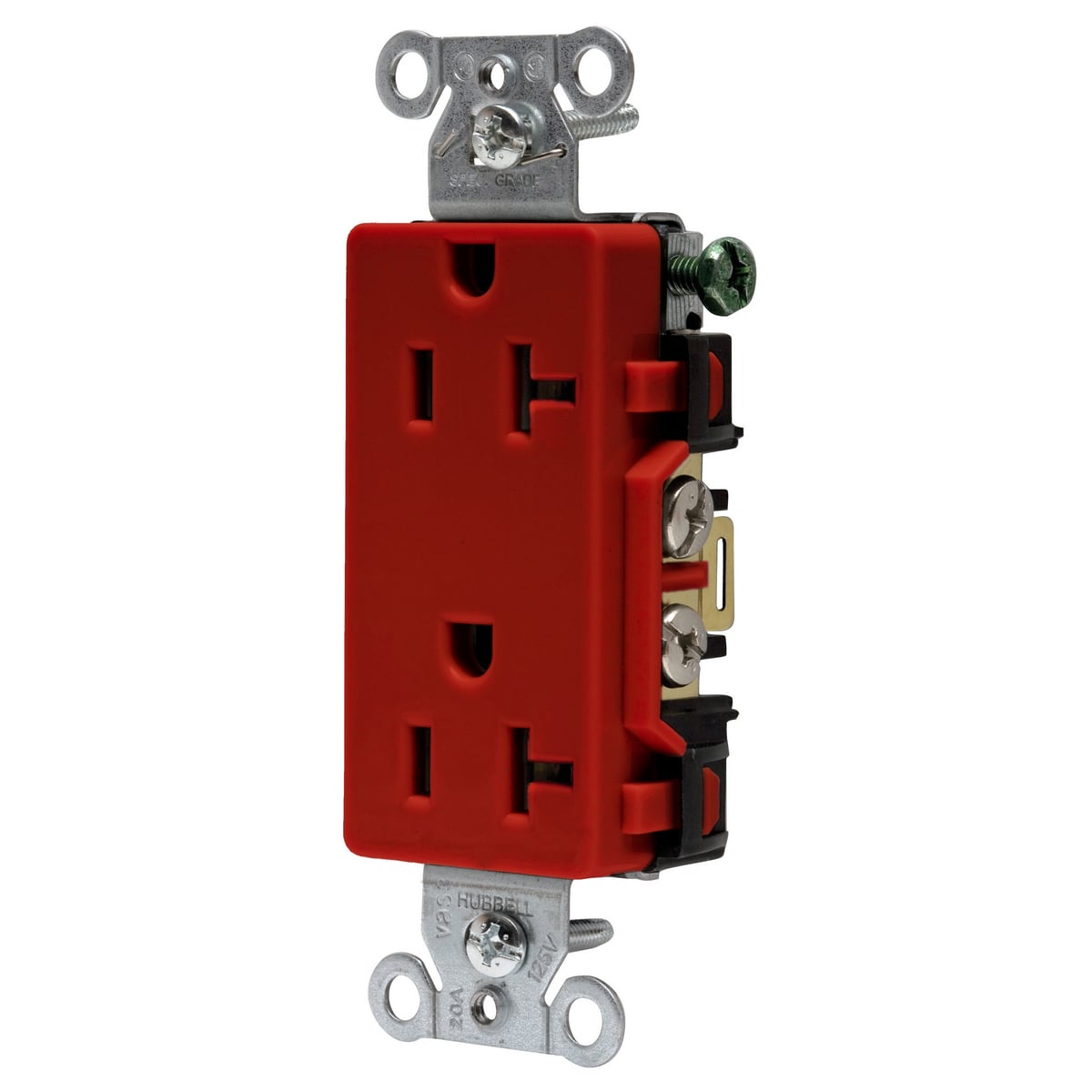

DR20R 1-Phase Decorator Duplex Self-Grounding Standard Smooth Face Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Red
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- DR20R
- UPC:
- 783585197593
- Item #:
- 251337
DR20R 1-Phase Decorator Duplex Self-Grounding Standard Smooth Face Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Red
- MFR #:
- DR20R
- UPC:
- 783585197593
- Item #:
- 251337
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$10.96
each
Manuals and Documentation
| Catalog Number | DR20R |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Commercial Specification Grade |
| Color | Red |
| Connection | Back and Side Wired |
| Material | Nylon |
| Mounting | Screw |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Phase | 1 |
| Special Features | Self Grounding |
| Standard | Certified to CSA, C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| UPC | 783585197593 |
| GTIN | 00783585197593 |
| Item Type | Standard Duplex |
| Size | 3.28 in x 1.06 in x 1.29 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 125 |
| Wattage | 2,500 W |
| Wire Size | #12 AWG to #10 AWG |
| Cross Reference Products | 16352-R |
