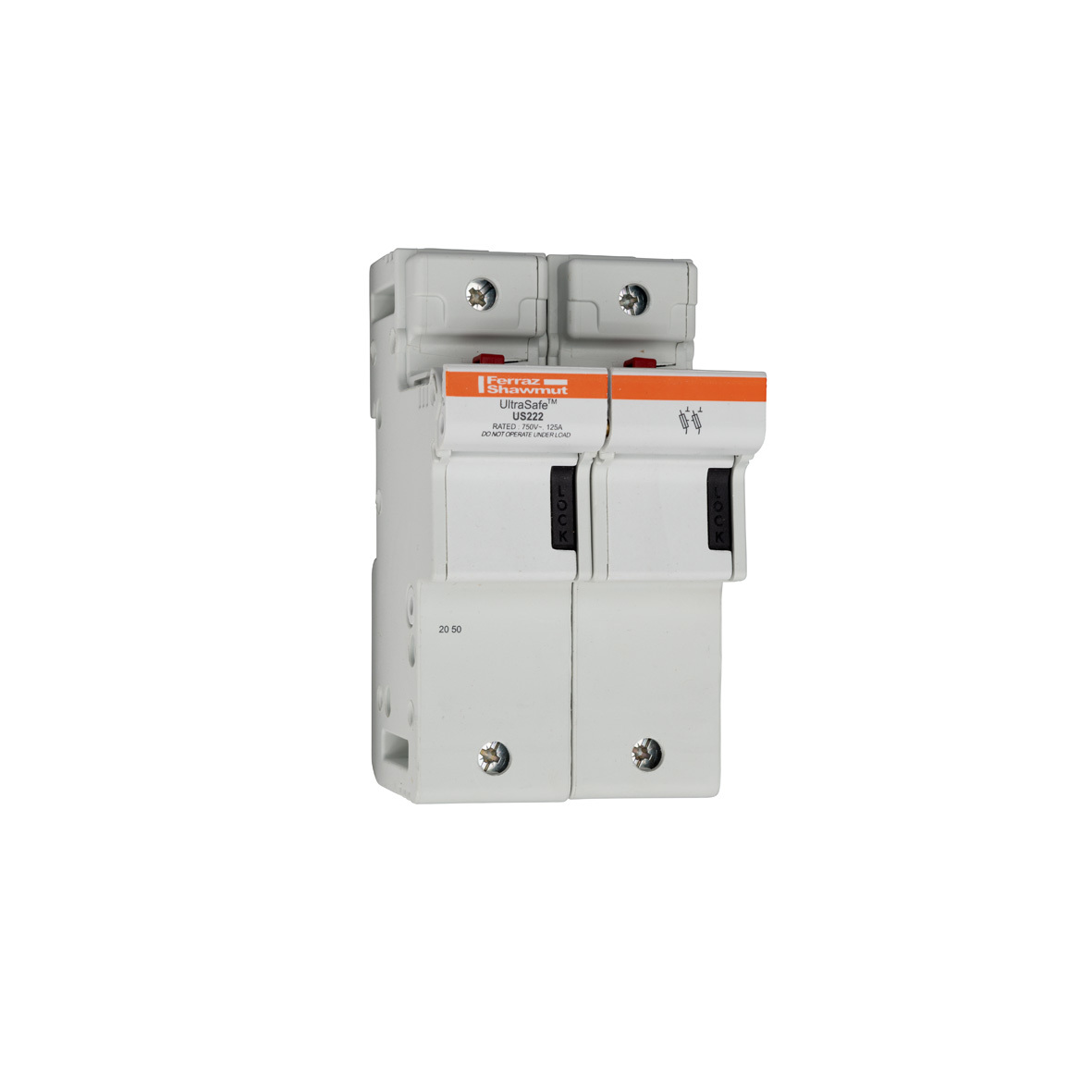

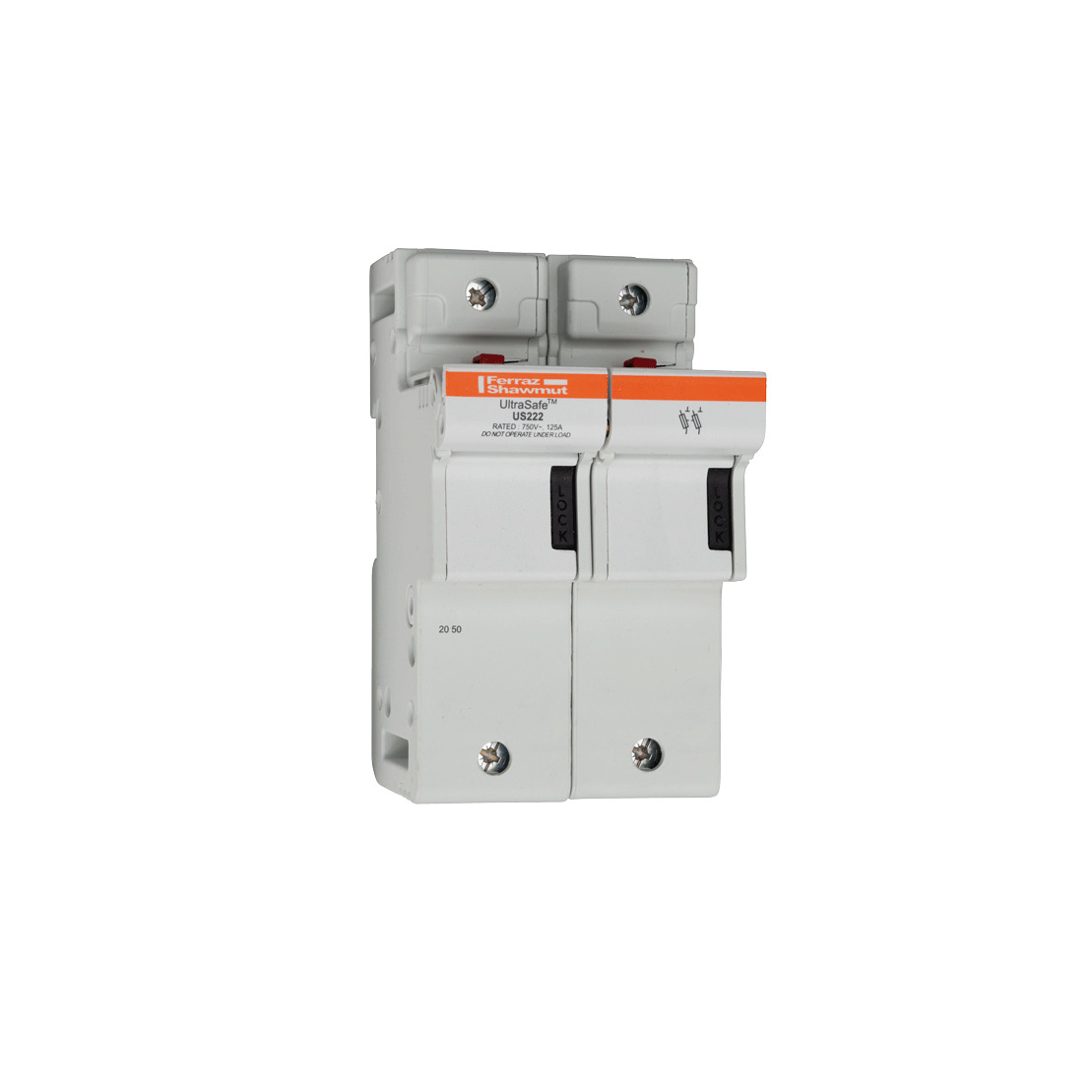

K331163 UltraSafe US22 Finger Safe Modular Fuse Holder, 750 V AC/DC, 125 A, 14 to 1/0 AWG Wire, 2 Poles
- MFR:
- Mersen
- MFR #:
- K331163
- UPC:
- 782001311278
- Item #:
- 250014
K331163 UltraSafe US22 Finger Safe Modular Fuse Holder, 750 V AC/DC, 125 A, 14 to 1/0 AWG Wire, 2 Poles
- MFR #:
- K331163
- UPC:
- 782001311278
- Item #:
- 250014
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$337.86
each
Fuse Holder UltraSafe 800VAC 1000VDC UL Fuse size 22x58 2-Pole Pressure Plate IP20 IP20
Manuals and Documentation
| Catalog Number | K331163 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Tunisia |
| Made in USA | No |
| Amperage Rating | 125 |
| Application | All circuits up to 750VAC for protection of motors, transformers, low voltage distribution, control circuits Non-load operation |
| Connection | Pressure Plate |
| Material | Polyamide |
| Mounting | Din Rail |
| Number of Poles | 2 |
| Special Features | Finger safe Degree of protection: IP20 Optional visual blown fuse indicator & microswitch DIN rail mounting Modular design Lockable Multi-pole assembly kit available Sealable in closed and open position Plastic material UL94V2 mini Flame retardant materials with glow wire flammability index to 960 Degrees C |
| Standard | UL Recognized Component, UL4248, guide IZLT2, file E52283 CSA Certified C22.2, class 6225, file 32169 IEC 60269-2 and IEC 60947-3 RoHS Compliant Plastic material: NF 16101 & 16102 Requirement 2 Compliant |
| UPC | 782001311278 |
| GTIN | 00782001311278 |
| Item Type | UL/CSA Fuse Holders |
| Size | 3.01 x 2.76 x 5.02 |
| Voltage Rating | 750 |
